19) USB Headers (10-1 pin USB_56) (Optional)
If the USB 2.0 port connectors on the back panel are inadequate, one USB
header is available for four additional USB port connectors. Connect a 2-
port USB connector set to a USB header and mount the USB bracket to an
open slot in the chassis. (The USB connector set is optional and does not
come with the motherboard package.)

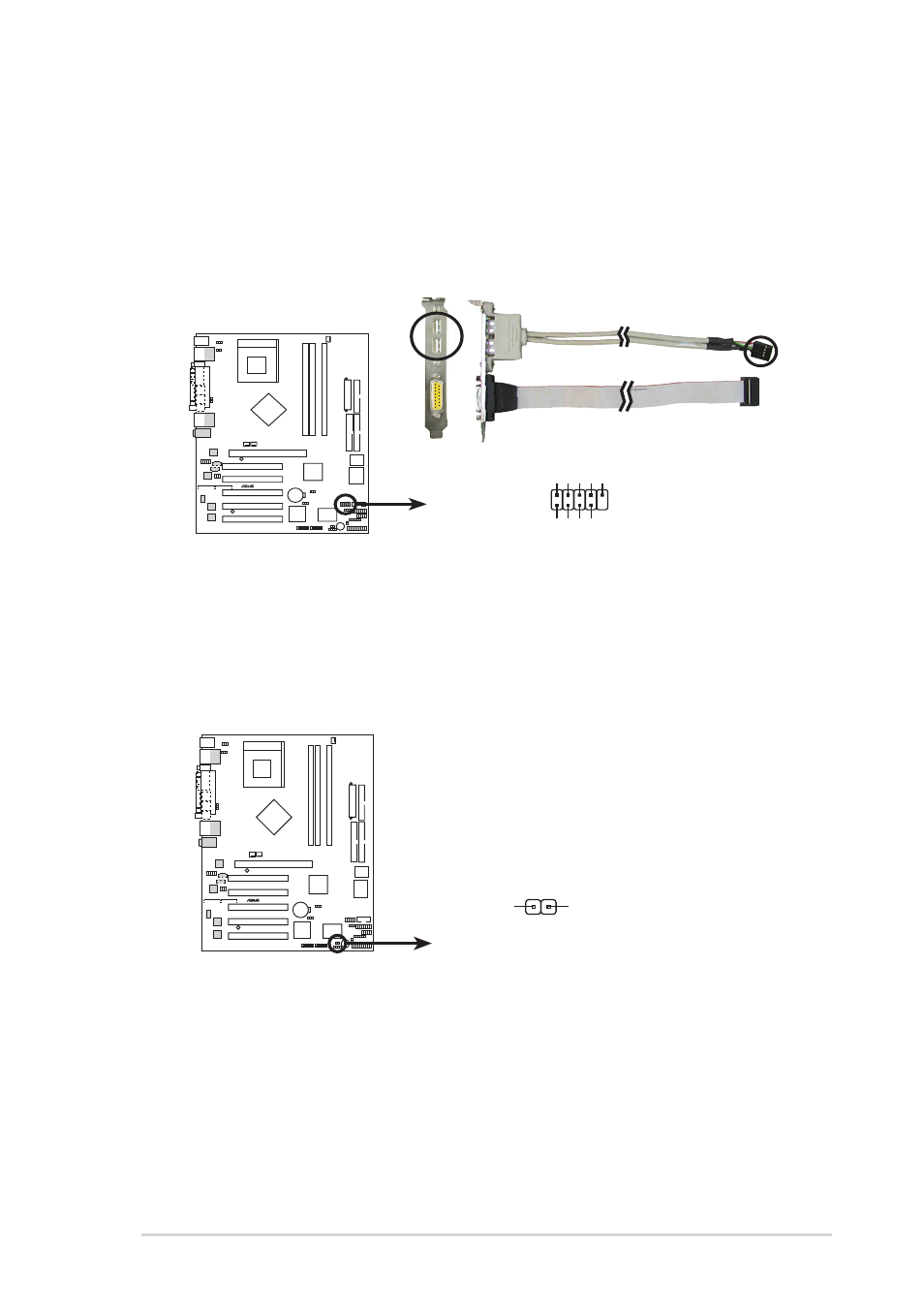

A7N8X ®
A7N8X USB 2.0 Header
USB56
USB+5V USB_P6- USB_P6+ GND NC
USB+5V USB_P5- USB_P5+
GND
1
A7N8X ®
A7N8X Power Supply Thermal Connector
PWRTMP1
Ground PWRTMP
20) Power Supply Thermal Sensor (2-pin PWRTMP1) (Optional)
This header supports a thermal sensor for the power supply.
