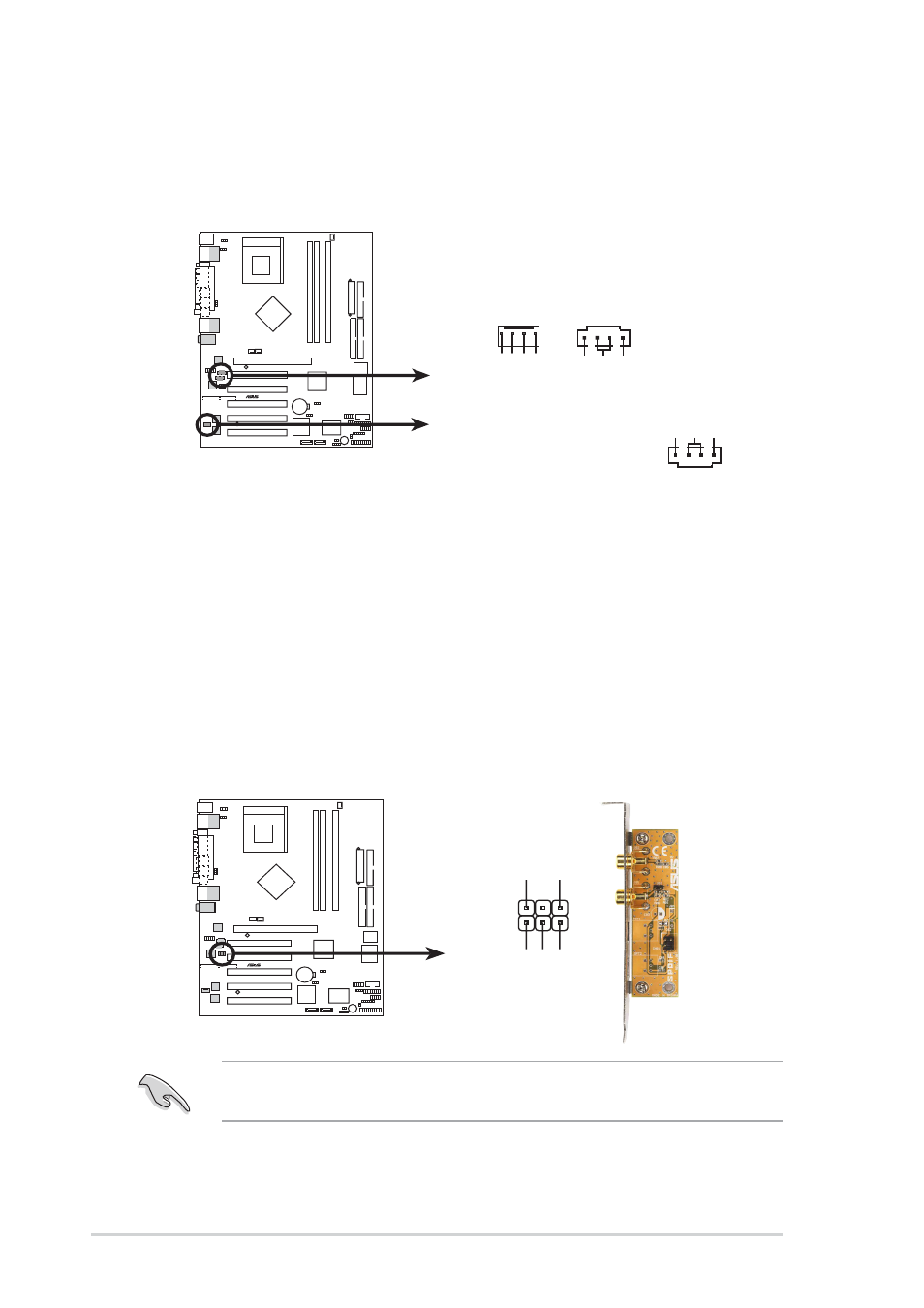

A7N8X Digital Audio Connector
SPDIF1
GND
+5V
SPDIF_IN
SPDIF_OUT
GND
1
18) Digital Audio Interfaces (6 pin SPDIF1) (Optional)
This connector is for optional S/PDIF audio module that allows digital instead
of analog sound input and output.
17) Internal Audio Connectors (Two x 4 pin CD1, AUX1, MODEM1)
These connectors allow you to receive stereo audio input from sound sources
as a CD-ROM, TV tuner, Modems, or MPEG card.
A7N8X ®
A7N8X Internal Audio Connectors
MODEM1 AUX1 (White) CD1 (Black)
Modem-In
Ground
Modem-Out
Ground
Right A
udio Channel
Left A
udio Channel
Ground
Right A
udio Channel
Left A
udio Channel
Ground
IMPORTANT! For S/PDIF out function, you may use either the module
or the S/PDIF connector at the back panel, but not both.
