ASUS A7N8X motherboard user guide 19
A7N8X ®

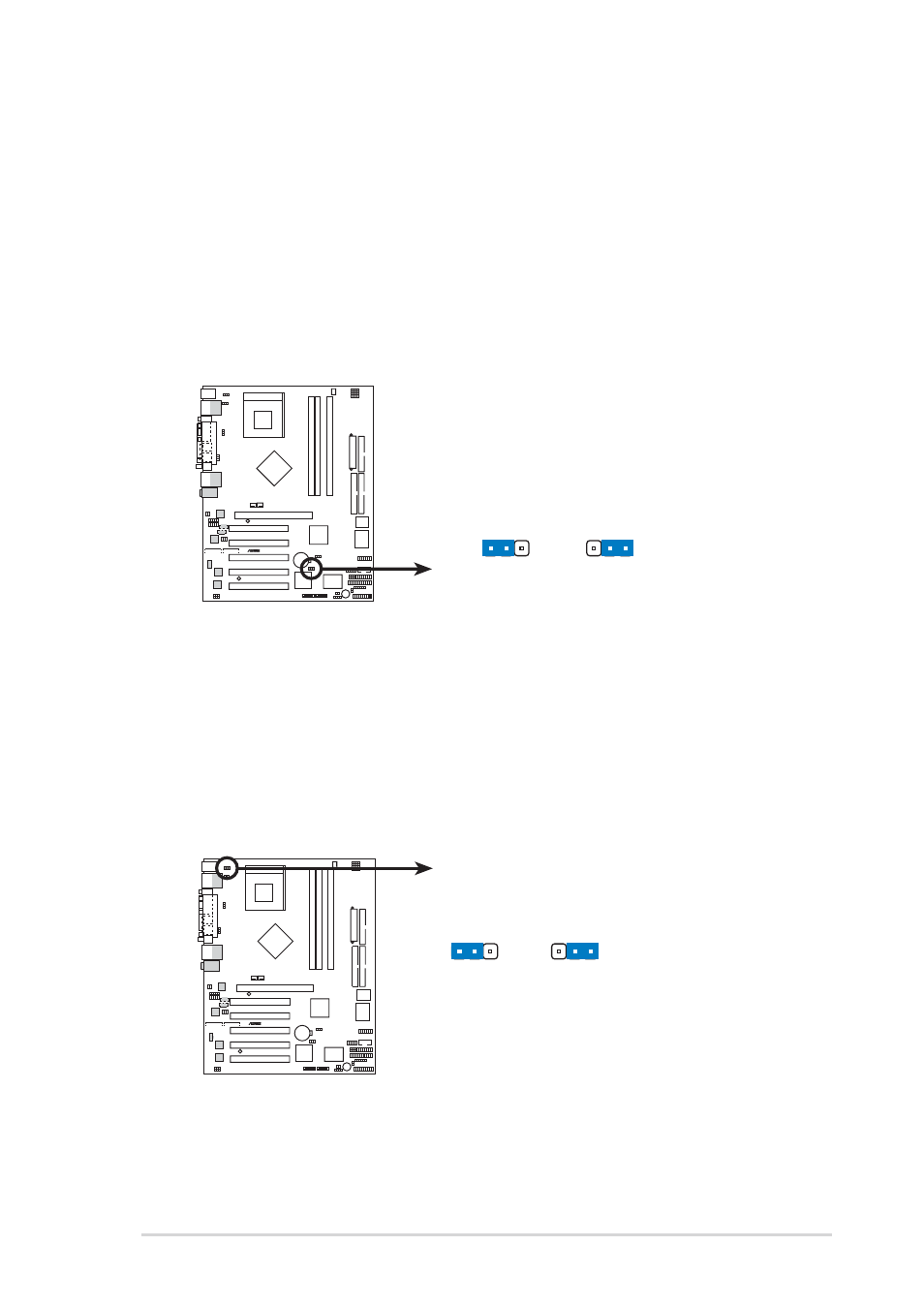

A7N8X SATA Setting
SATA_EN1
Enable
(Default)
Disable
1 2 2 3
1) Serial ATA Setting (3 pin SATA_EN1)
This jumper permits selection of the serial ATA headers for connection of
serial ATA hard disk drives and other serial IDE devices. The default setting
[1-2] enables the serial headers. Disable the serial headers by changing
the jumpers to [2-3].
2.7 Jumpers
The jumpers on the motherboard allow you to change some feature
settings to suit your customized system configuration.
A7N8X ®
A7N8X Keyboard Power Setting
KBPWR1
(Default)
+5V
1 2
+5VSB
2 3
2) Keyboard Wake Up (3 pin KBPWR1)
This allows you to disable or enable the keyboard power up function. Retain
the default setting of [1-2] to disable computer keyboard-wake-up function. If
you set to [2-3] you may use your keyboard by pressing to
wake up your computer. This feature requires an ATX power supply that can
supply at least 1A on the +5VSB lead.
(Default)
