ASUS Terminator K7 Barebone System 43
3. USB Device Wake Up (Front and Back Panel USB Ports).
Set these jumpers to +5V to allow wake up from S1 sleep state
(CPU stopped; RAM refreshed; system running in low power
mode) using the connected USB devices. Set to +5VSB to allow
wake up from S3 state (no power to CPU; RAM in slow refresh;
power supply in reduced power mode).
A7VC
®

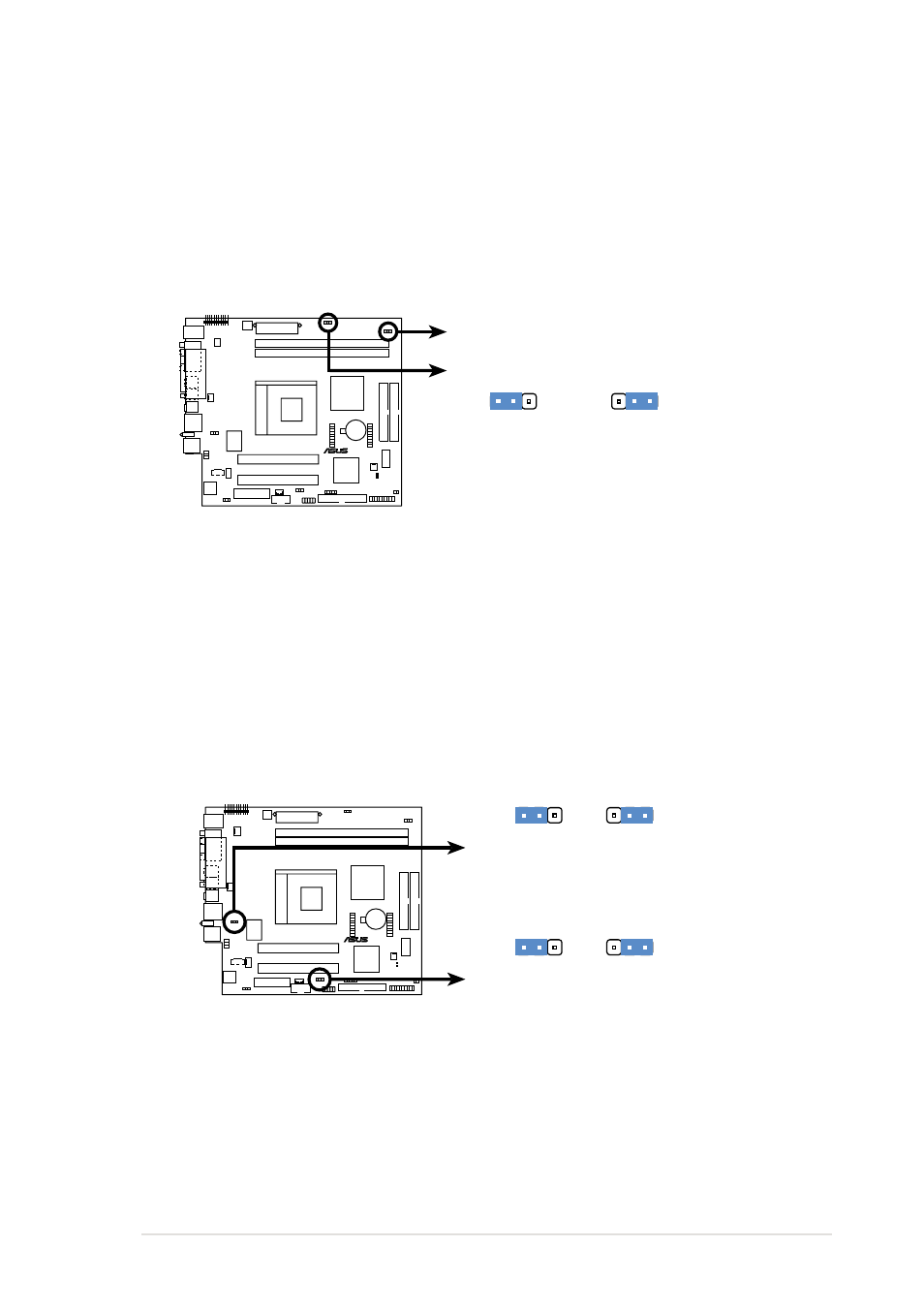

A7VC CPU FSB Frequency Setting
CPU 133MHz
1 2 2 3
FS1 & FS2
CPU 100MHz
2. CPU/FSB Frequency Selection. The FS jumper is set to a
factory default [2-3] that operates with AMD 100 MHz FSB
capacity processors. If AMD 133 MHz capacity processors are
used, then reset the jumper to [1-2]. The FS jumper settings
should match the capacity of the processor. Otherwise, the
motherboard may not boot up.
A7VC
®
A7VC USB Ports Setting
(Back Panel USB Port)
JP1A
+5V
1 2 2 3
+5VSB
(Front Panel USB Port)
JP1B
+5V
1 2 2 3
+5VSB
