GE Data Sheet
SHHD001A3B Hammerhead Series; DC-DC Converter Power Modules
18-75Vdc Input; 12Vdc, 1.3A, 15W Output
October 30, 2013 ©2012 General Electric Company. All rights reserved. Page 8
Feature Descriptions (continued)
Vout+
TRIM
Vout-
R
adj-up
R
LOAD
Vin+
ON/OFF
Vin-

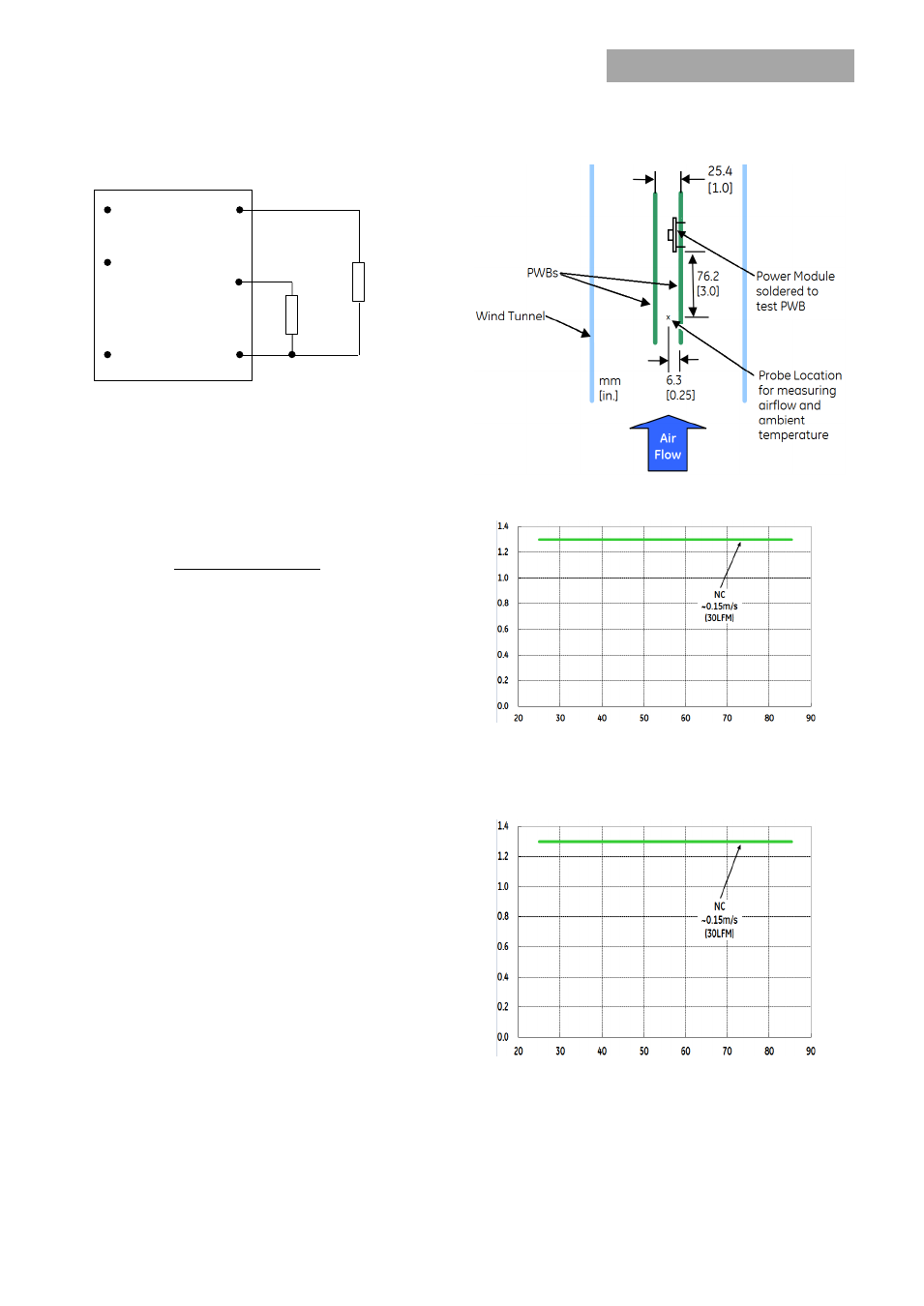

Figure 12. Circuit Configuration to Increase Output Voltage.
The SHHD power modules have a fixed current-limit set point.
Therefore, as the output voltage is adjusted down, the
available output power is reduced.
Trim Examples
For SHHD005A0, nominal 5.0V module. To trim module down
to 11.9V:









 

 5110
) 9 . 11 0 . 12 (
10000 ) 5 . 2 9 . 11 (
down adj
R
 
 890 , 934
down adj
R
Thermal Considerations
The power modules operate in a variety of thermal
environments; however, sufficient cooling should be provided
to help ensure reliable operation.
Considerations include ambient temperature, airflow, module
power dissipation, and the need for increased reliability. A
reduction in the operating temperature of the module will
result in an increase in reliability.
The thermal data presented here is based on physical
measurements taken in a wind tunnel, using automated
thermo-couple instrumentation to monitor key component
temperatures: FETs, diodes, control ICs, magnetic cores,
ceramic capacitors, opto-isolators, and module pwb
conductors, while controlling the ambient airflow rate and
temperature. For a given airflow and ambient temperature, the
module output power is increased, until one (or more) of the
components reaches its maximum derated operating
temperature, as defined in IPC-9592A. This procedure is then
repeated for a different airflow or ambient temperature until a
family of module output derating curves is obtained.
Figure 13. Thermal Test Setup .
O
U
TP
U
T
C
U
RR
EN
T,
I O
(A)
LOCAL AMBIENT TEMPERATURE, T
A
(  C)
Figure 14. Output Current Derating for the Open Frame
SHHD001A3B in the Transverse Orientation; Airflow
Direction from Vin(-) to Vin(+); Vin = 24V.
O
U
TP
U
T
C
U
RR
EN
T,
I O
(A)
LOCAL AMBIENT TEMPERATURE, T
A
(  C)
Figure 15. Output Current Derating for the Open Frame
SHHD001A3B in the Transverse Orientation; Airflow
Direction from Vin(-) to Vin(+); Vin = 48V.
