3A Digital PicoDLynx TM : Non-Isolated DC-DC Power Modules
3Vdc –14.4Vdc input; 0.45Vdc to 5.5Vdc output; 3A Output Current
April 29, 2013 ©2013 General Electric Company. All rights reserved. Page 35

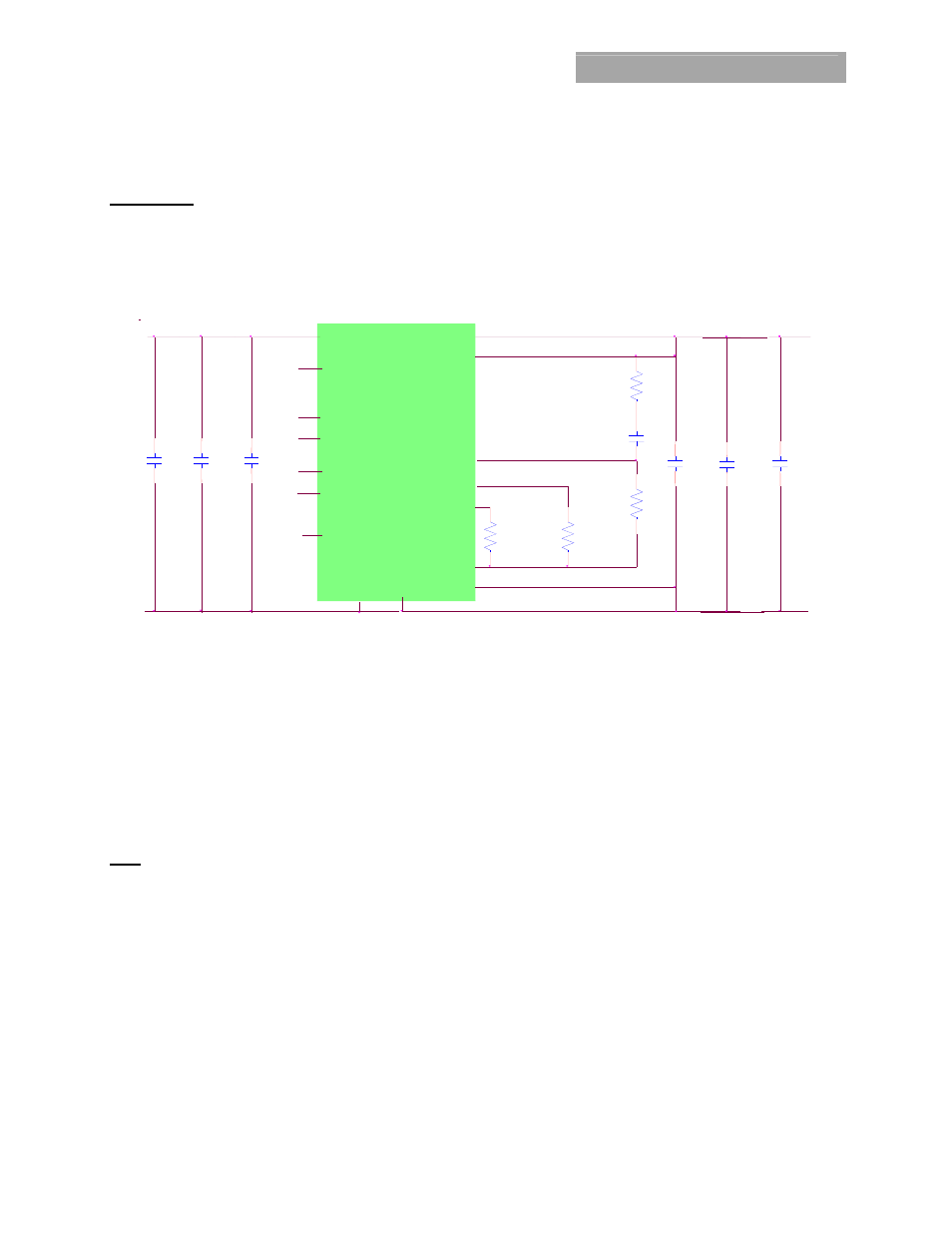

Example Application Circuit
Requirements:
Vin:
12V
Vout: 1.8V
Iout: 2.25A max., worst case load transient is from 1.5A to 2.25A
ΔVout: 1.5% of Vout (27mV) for worst case load transient
Vin, ripple 1.5% of Vin (180mV, p-p)
CI1 Decoupling cap - 1x0.047 μF/16V ceramic capacitor (e.g. Murata LLL185R71C473MA01)
CI2 1x22 μF/16V ceramic capacitor (e.g. Murata GRM32ER61C226KE20)
CI3 470 μF/16V bulk electrolytic
CO1 Decoupling cap - 1x0.047 μF/16V ceramic capacitor (e.g. Murata LLL185R71C473MA01)
CO2 -
CO3 1x330uF
CTune 2200pF ceramic capacitor (can be 1206, 0805 or 0603 size)
RTune 220 ohms SMT resistor (can be 1206, 0805 or 0603 size)
RTrim 10k Ω SMT resistor (can be 1206, 0805 or 0603 size, recommended tolerance of 0.1%)
Note: The DATA, CLK and SMBALRT pins do not have any pull-up resistors inside the module. Typically, the SMBus master
controller will have the pull-up resistors as well as provide the driving source for these signals.
RADDR0
DATA
VS-
RADDR1
GND
Vin+
CI3 CO3
ADDR0
VOUT
VS+
GND
TRIM
CTUNE
RTUNE
RTrim
VIN
CO1 CI1
Vout+
ON/OFF
SEQ
SMBALRT#
MODULE
PGOOD
ADDR1
SIG_GND
SYNC
CI2 CO2
CLK
