Naos Raptor 20A: Non-Isolated Power Modules
4.5 – 14Vdc input; 0.59Vdc to 6Vdc Output; 20A Output Current
* UL is a registered trademark of Underwriters Laboratories, Inc.
† CSA is a registered trademark of Canadian Standards Association.
‡ VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
Document No: DS06-127 ver. 1.11
PDF name: NSR020A0X_ds.pdf
Features
 Compliant to RoHS EU Directive 2002/95/EC (Z
versions)
 Compatible in a Pb-free or SnPb wave-soldering
environment (Z versions)
 Wide input voltage range (4.5Vdc-14Vdc)
 Output voltage programmable from 0.59Vdc to 6Vdc
via external resistor
 Tunable Loop TM to optimize dynamic output voltage
response

Fixed switching frequency
 Output overcurrent protection (non-latching)

Over temperature protection

Remote On/Off
 Remote Sense
 Power Good Signal
 Small size: 36.8 mm x 15.5 mm x 9.2 mm
(1.45 in. x 0.61 in. x 0.36 in)
 Wide operating temperature range (-40°C to 85°C)
 UL* 60950 Recognized, CSA † C22.2 No. 60950-00
Certified, and VDE ‡ 0805 (EN60950-1 3 rd edition)
Licensed
 ISO** 9001 and ISO 14001 certified manufacturing
facilities
Applications
 Distributed power architectures
 Intermediate bus voltage applications
 Telecommunications equipment
 Servers and storage applications
 Networking equipment
Description

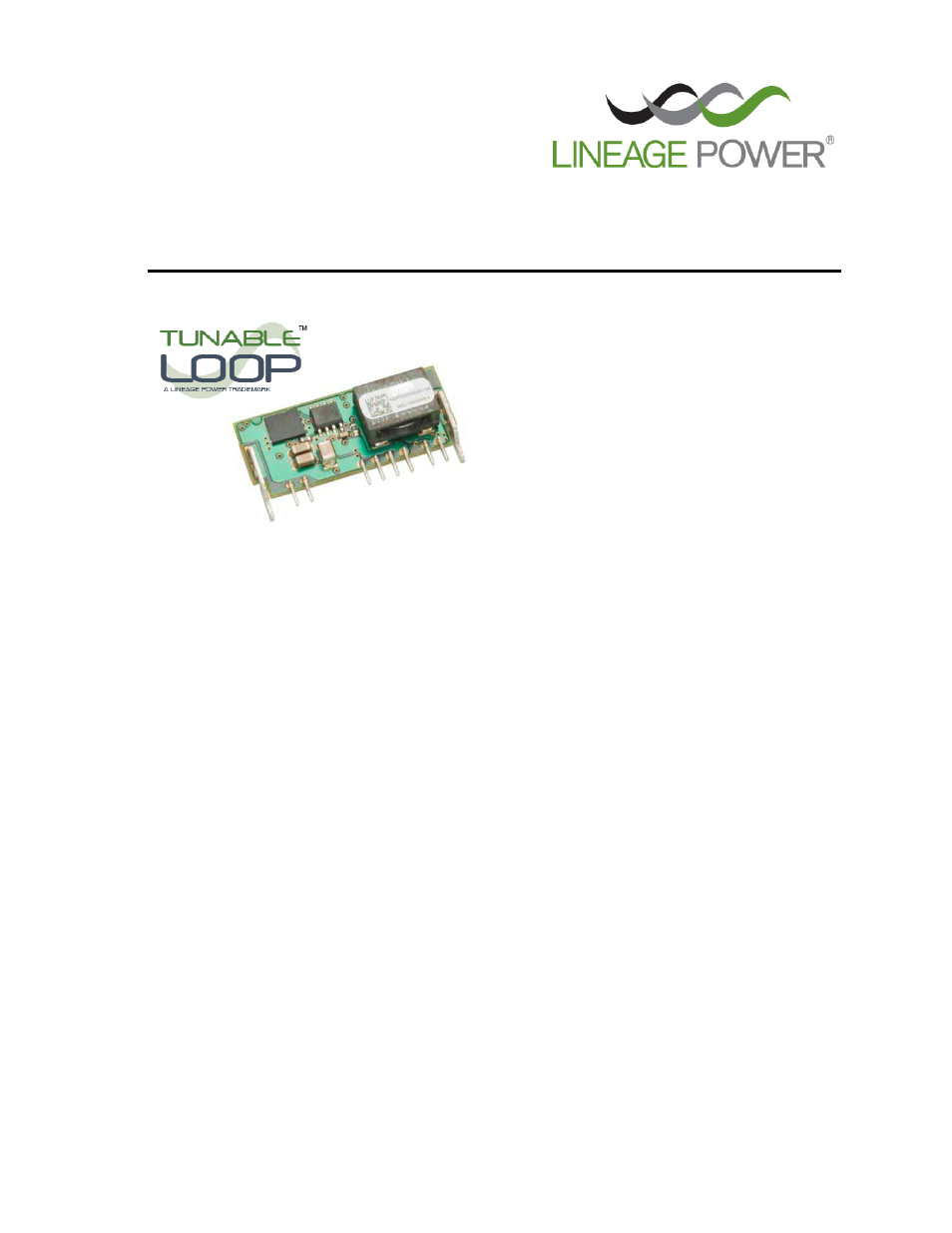

The Naos Raptor 20A SIP power modules are non-isolated dc-dc converters in an industry standard package that
can deliver up to 20A of output current with a full load efficiency of 91% at 3.3Vdc output voltage (V
IN
= 12Vdc).
These modules operate over a wide range of input voltage (V
IN
= 4.5Vdc-13.8Vdc) and provide a precisely regulated
output voltage from 0.59Vdc to 6Vdc, programmable via an external resistor. Features include remote On/Off,
adjustable output voltage, over current and over temperature protection. A new feature, the Tunable Loop
TM , allows
the user to optimize the dynamic response of the converter to match the load.
RoHS Compliant
