Data sheet – GE Industrial Solutions QBDW025A0B Barracuda Series User Manual
Page 15
GE
Data Sheet
QBDW025A0B Barracuda Series; DC-DC Converter Power Modules
36-75Vdc Input; 12.0Vdc, 25.0A, 300W Output
May 9, 2013
©2012 General Electric Company. All rights reserved.
Page 15

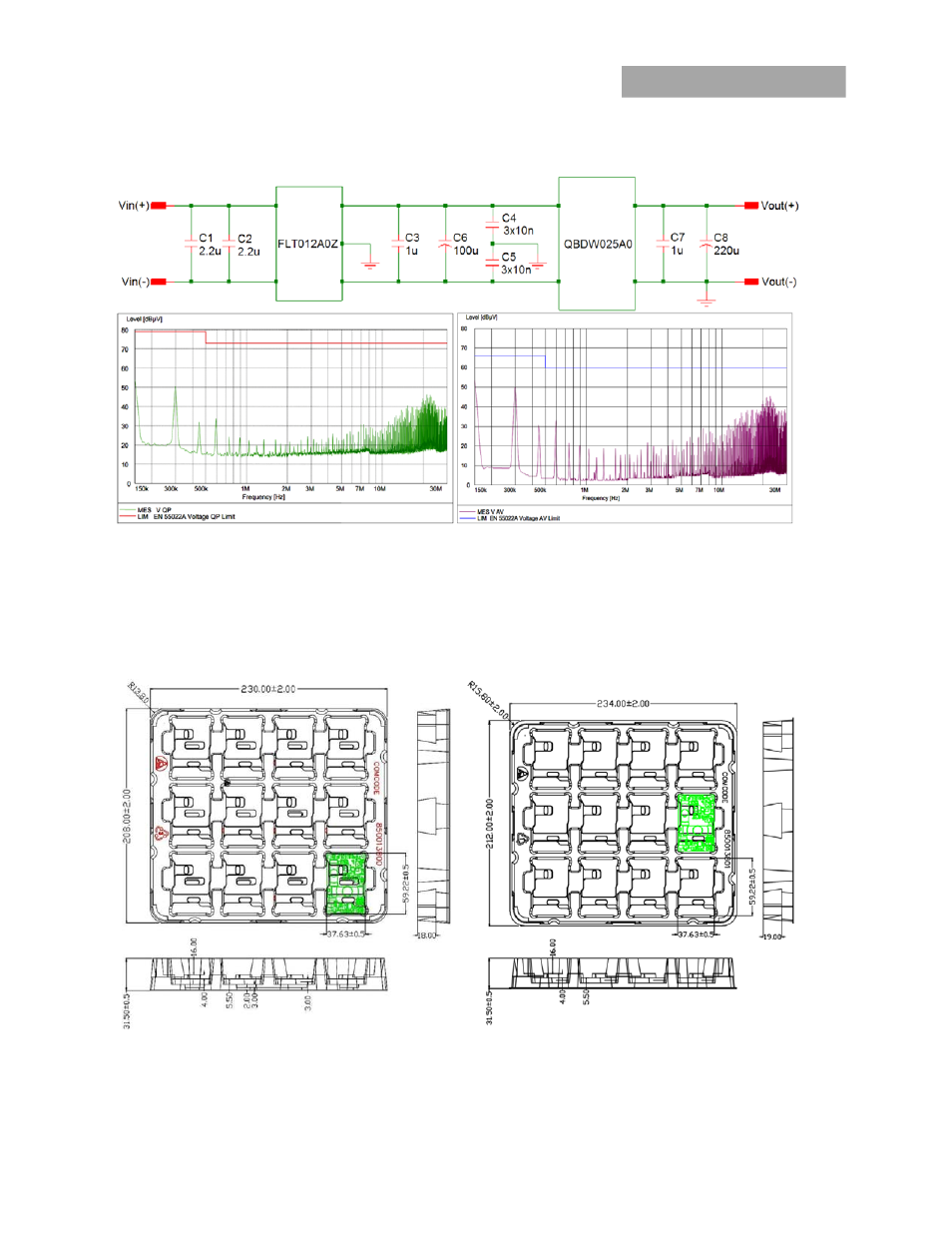

Figure 25. EMC Considerations
Packaging Details
All versions of the QBDW025A0B are supplied as standard in
the plastic trays shown in Figure 26.
Each tray contains a total
of 12 power modules. The trays are self-stacking and each
shipping box for the QBDW025A0B module contains 2 full
trays plus one empty hold-down tray giving a total number of
24 power modules.
Tray Specification
Material
PET
(1mm)
Max surface resistivity 10
9
-10
11
/PET
Color Clear
Capacity
12 power modules
Min order quantity
24 pcs (1 box of 2 full trays + 1 empty top tray)
Open Frame Module Tray
Base Plate Module Tray
Figure 26. QBDW025 Packaging Tray
