Data Sheet
May 9, 2013 ©2012 General Electric Company. All rights reserved. Page 1

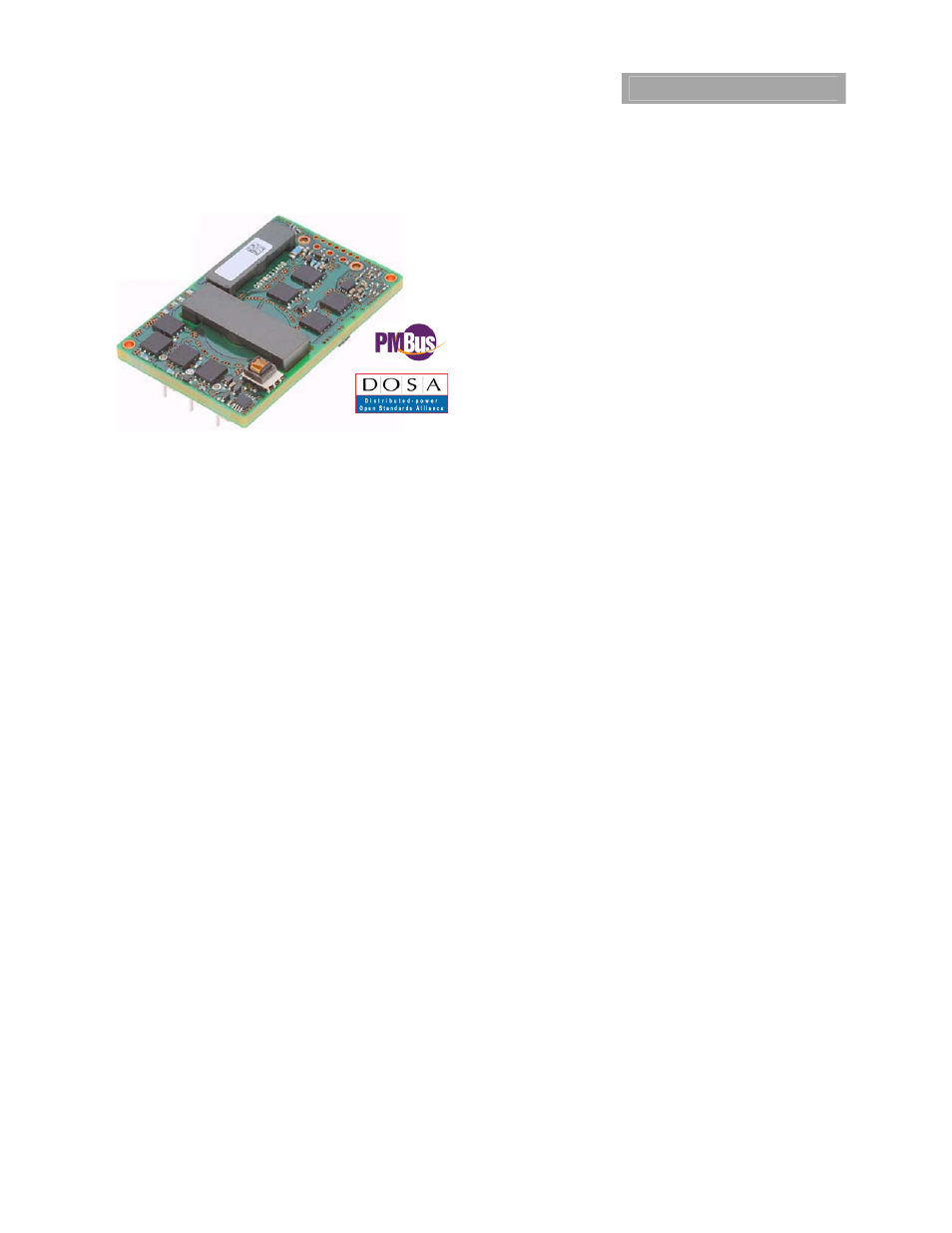

QBDW025A0B Barracuda* Series; DC-DC Converter Power Modules
36-75Vdc Input; 12.0Vdc, 25.0A, 300W Output
Features
 Compliant to RoHS II EU “Directive 2011/65/EU (-Z versions)
 Compliant to REACH Directive (EC) No 1907/2006
 High and flat efficiency profile >95.5% at 12V
dc
, 40% to
100% rated output
 Wide input voltage range: 36-75V
dc
 Delivers up to 25A
dc
output current
 Remote sense and output voltage trim
 Fully very tightly regulated output voltage
 Output voltage adjust: 8.1V
dc
to 13.2V
dc
 Low output ripple and noise
 Industry standard, DOSA compliant, Quarter brick:
58.4 mm x 36.8 mm x 11.7 mm
(2.30 in x 1.45 in x 0.46 in)
 Constant switching frequency
 Digital interface with PMBus™ Rev 1.2 Compliance^
 Positive remote On/Off logic
 Output over current/voltage protection
 Digital interface with PMBus™ Rev.1.2 compliance
 Over temperature protection
 Wide operating temperature range (-40°C to 85°C)
 ANSI/ UL # 60950-1-2011 Recognized, CAN/CSA † C22.2
No.60950-1-07, Second Edition + A1:2011 (MOD) Certified
IEC 60950-1:2005 (2nd edition) + A1:2009 and EN 60950-
1:2006 + A11:2009 + A1:2010 + A12:2011, and VDE‡ 0805-1
Licensed
 CE mark 2006/96/EC directives §
 Meets the voltage and current requirements for ETSI 300-
132-2 and complies with and licensed for Basic insulation
rating per EN60950-1
 2250 Vdc Isolation tested in compliance with IEEE 802.3 ¤ PoE
standards
Applications
 Distributed power architectures
 Intermediate bus voltage applications
 Servers and storage applications
 Networking equipment including Power over Ethernet
(PoE)
 Fan assemblies other systems requiring a tightly
regulated output voltage
Options
 Negative Remote On/Off logic (1=option code, factory
preferred)
 Auto-restart after fault shutdown (4=option code, factory
preferred)
 Base plate option (-H=option code)
 Passive Droop Load Sharing (-P=option code)
Description
The QBDW025A0B Barracuda series of dc-dc converters are a new generation of DC/DC power modules designed to support 9.6
-12Vdc intermediate bus applications where multiple low voltages are subsequently generated using point of load (POL)
converters, as well as other application requiring a tightly regulated output voltage. The QBDW025A0B series operate from an
input voltage range of 36 to 75Vdc and provide up to 25A output current at output voltages from 8.1V
dc
to 12V
dc
in a DOSA
standard quarter brick. The converter incorporates digital control, synchronous rectification technology, a fully regulated control
topology, and innovative packaging techniques to achieve efficiency approaching 96% peak at 12V
dc
output. This leads to lower
power dissipations such that for many applications a heat sink is not required. Standard features include output voltage trim,
remote sense, on/off control, output overcurrent and over voltage protection, over temperature protection, input under and over
voltage lockout, power good signal and PMBus interface.
The output is fully isolated from the input, allowing versatile polarity configurations and grounding connections. Built-in filtering
for both input and output minimizes the need for external filtering.
* Trademark of General Electric Company
^ PMBus name and logo are registered trademarks of SMIF, Inc.
# UL is a registered trademark of Underwriters Laboratories, Inc.
† CSA is a registered trademark of Canadian Standards Association.
‡ VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
§ This product is intended for integration into end-user equipment . All of the required procedures of end-use equipment should be followed.
¤ IEEE and 802 are registered trademarks of the Institute of Electrical and Electronics Engineers, Incorporated.
** ISO is a registered trademark of the International Organization of Standards.
RoHS Compliant
