CAR1212FP series rectifier
Input: 85Vac to 264Vac; Output: 12 Vdc @ 1250W; 5 Vdc @ 0.5A
Contact Us
For more information, call us at
USA/Canada:
+1 888 546 3243 , or +1 972 244 9288
Asia-Pacific:
+86.021.54279977*808
Europe, Middle-East and Africa:
+49.89.878067-280
India:
+91.80.28411633
www.ge.com/powerelectronics
July 20, 2012 ©2012 General Electric Company. All rights reserved. Page 7

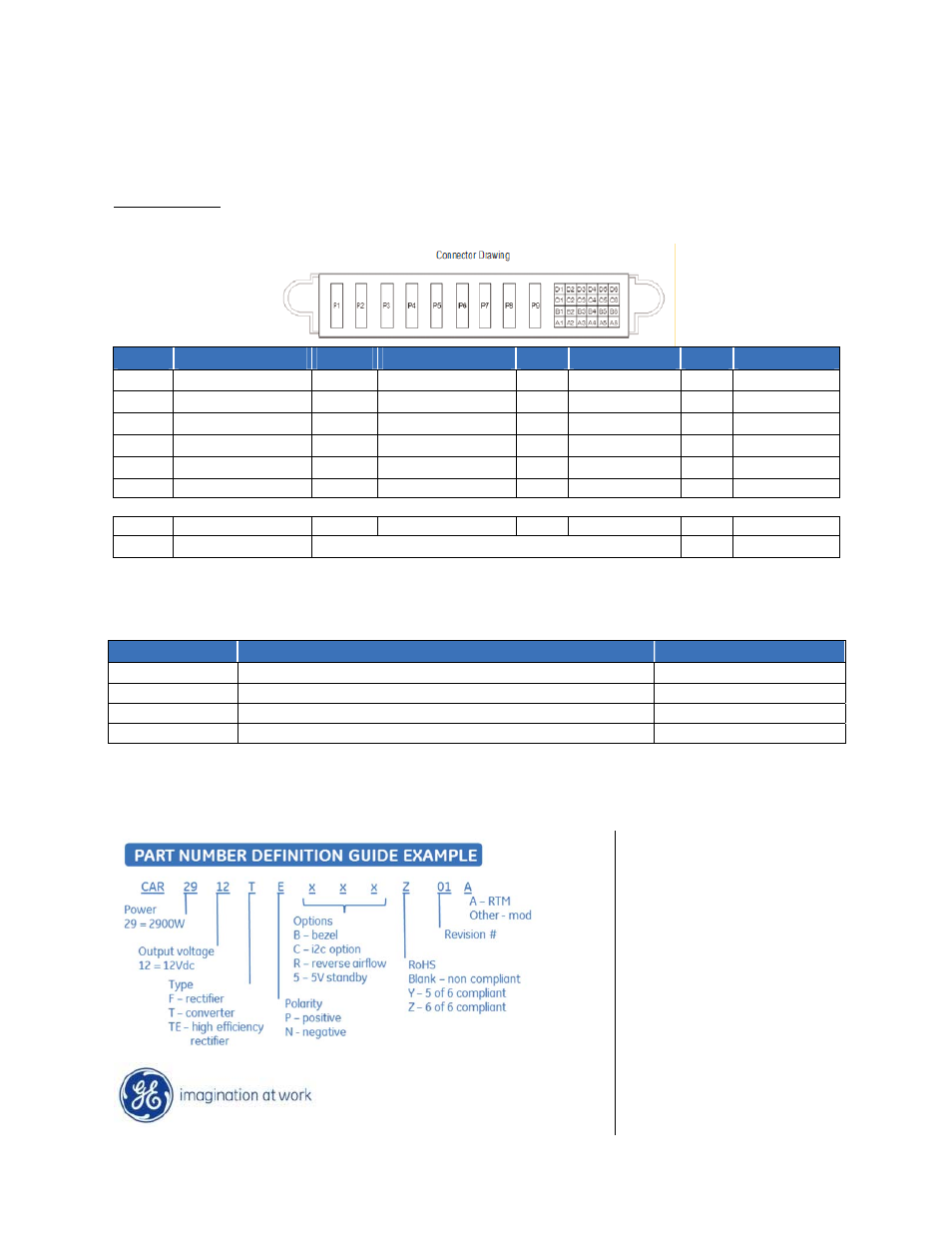

Connector Pin Assignments
Mating Connector: FCI/Berg P/N 51939-178
Mating connector: Primary Source: FCI berg P/N 51866-025 (right angle mounting)
or FCI berg P/N 51940-117 (straight mounting)
Pin Function Pin Function Pin Function Pin Function
A1 Vstb [5V] B1 Fault C1 IShare D1 VProg
A2 Vstb [5V] Return B2 I Monitor (IMON) C2 No connect D2 OVP Test Point
A3 Signal Return B3 Enable: “0” –ON “1” -OFF C3 Over Temp Warning D3 Remote ON/OFF
A4 Write Protect (WP) B4 PS Present C4 I 2 C Address (A0) D4 DC OK
A5 Remote Sense (+) B5 SDA (I 2 C bus) C5 I 2 C Address (A1) D5 AC OK
A6 Remote Sense (-) B6 SCL (I 2 C bus) C6 I 2 C Address (A2) D6 SMBAlert
P1 Line P2 Neutral P3 Chassis
P4 – P6 Output Return P7– P9 +12Vout
Ordering Information
Please contact your GE Energy Sales Representative for pricing, availability and optional features.
PRODUCT DESCRIPTION PART NUMBER
1250W Rectifier +12Vout , 5Vaux, RoHS 6 of 6 CAR1212FPXXXZ01A
1250W Rectifier +12Vout , 5Vaux, with face plate, RoHS 6 of 6 CAR2512FPBX5Z01A
1250W Rectifier +12Vout , 5Vaux, with face plate, I2C option, RoHS 6 of 6 CAR2512FPBC5Z01A
1250W Rectifier +12Vout , 5Vaux, with I2C option, RoHS 6 of 6 CAR2512FPXC5Z01A
