GE Energy
Data Sheet
July 20, 2012
©2012 General Electric Company. All rights reserved.

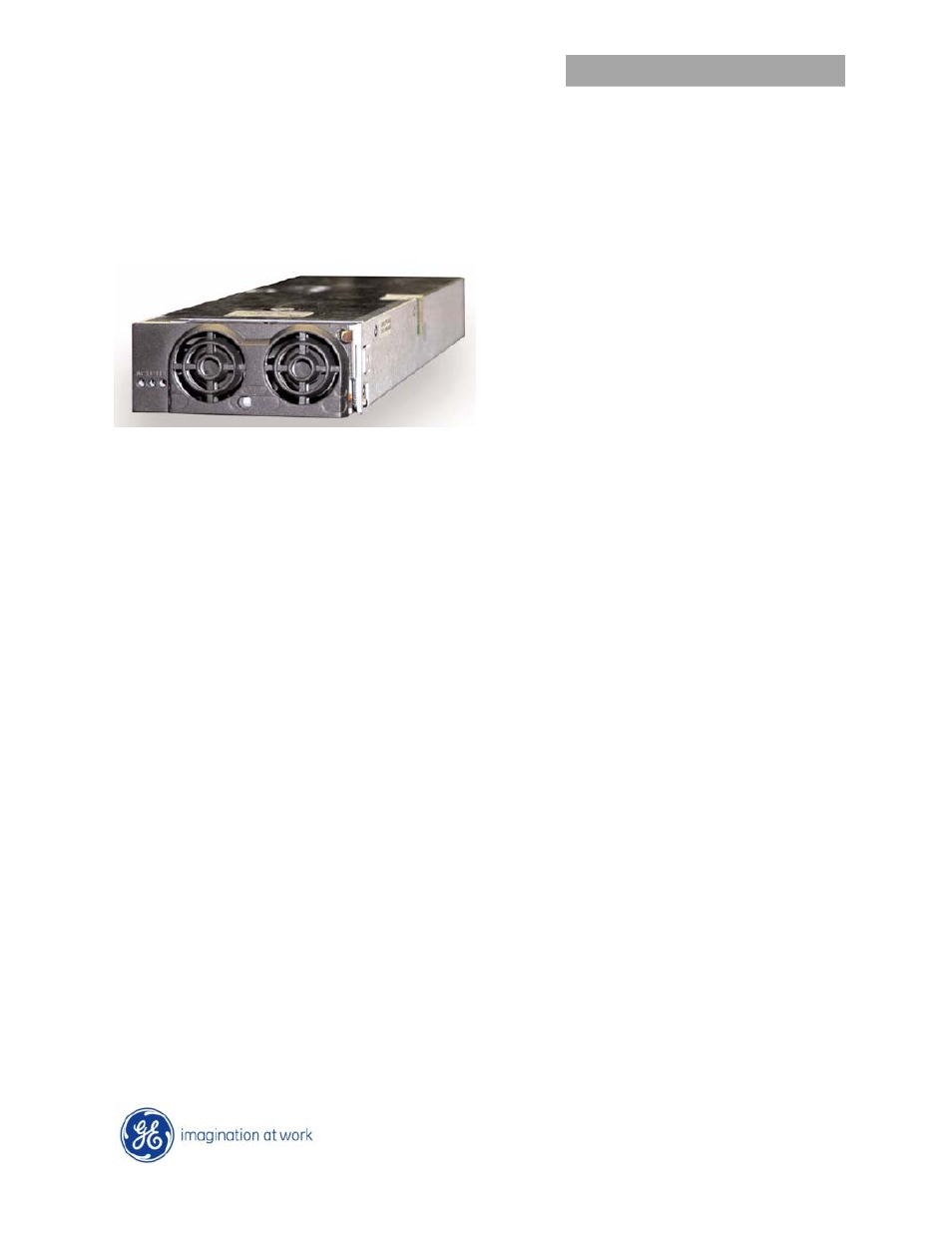

CAR1212FP series rectifier
Input: 85Vac to 264Vac; Output: 12Vdc @ 1250W; 5 Vdc @ 0.5A
Features
Universal input with PFC
Constant power characteristic
3 front panel LEDs:
Remote ON/OFF control of the 12Vdc output
Remote sense on the 12Vdc output
No minimum load requirements
Active load sharing (single wire)
Hot Plug-ability
Efficiency: typically 89% at high line
85% at low line
Standby : 5Vdc
Auto recoverable OC & OT protection
Operating temperature: -10 - 70C (de-rated above
50C)
Digital status & control: I
2
C serial bus
EN/IEC/UL60950-1 2
nd
edition; UL, CSA and VDE
EMI: class A FCC docket 20780 part 15, EN55022
Meets EN6100 immunity and transient standards
Shock & vibration: NEBS GR-63-CORE, level 3
Applications
12Vdc distributed power architectures
Datacom and Telecom applications
Mid to high-end Servers
Enterprise Networking
Network Attached Storage
Telecom Access Nodes
Routers/Switches
Broadband Switches
ATE Equipment
Description
The CAR1212FP series of rectifiers provide highly efficient isolated power from world-wide commercial AC mains.
Offered in the industry standard compact 1U form factor, these rectifiers complement the CAR1212DC converter line,
providing comprehensive solutions for systems connected either to commercial ac mains or 48/60Vdc power plants.
This plug and play approach, between AC and DC input units, has significant advantages since systems can be readily
reconfigured by simply replacing the power supply.
The high-density, front-to-back airflow is designed for minimal space utilization and is highly expandable for future
growth.
