GE Energy Preliminary Data Sheet
ACE184 Series Power Shelf
Main Output: 600A; Standby output: 8A
October 29, 2012 ©2012 General Electric Company. All rights reserved. Page 5

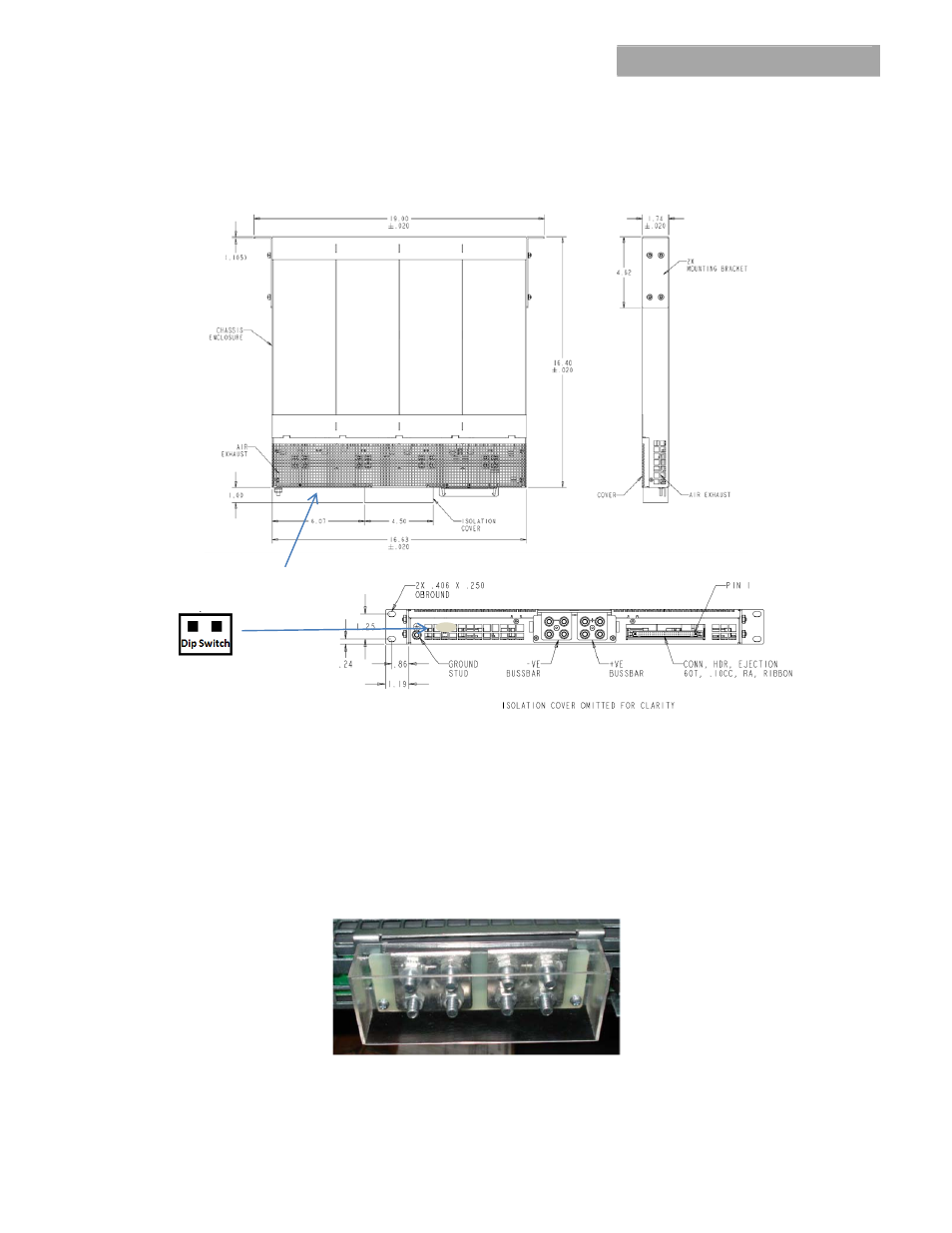

Outline Drawing
Perforated areas need to be
exposed for cooling purposes
Dip switch for Shelf Address:
 Mark 0 – ‘A2 pin set to 0’
 Mark 1 – ‘A2 pin set to 1’
(if Pin51 is not grounded)
Output Power Terminations
The outputs of the four power supplies are internally connected in parallel and brought out on the rear panel via four sets of
M6 studs with 5/8 inch center spacing, accommodating industry standard lugs. The lug terminations can exit the shelf either
above or below the shelf, or to the rear when right angle lugs are utilized. An insulation cover is provided over the lug
terminations and it can be rotated to accommodate the cables exiting either upward or downward.
The maximum output current capacity of the lug/wire combination should be sized to carry 300 amperes per set when two
lugs are utilized.
