GE Industrial Solutions 12V Austin MicroLynx 5A - Manual

GE
Data Sheet
May 6, 2013 ©2013 General Electric Company. All rights reserved.

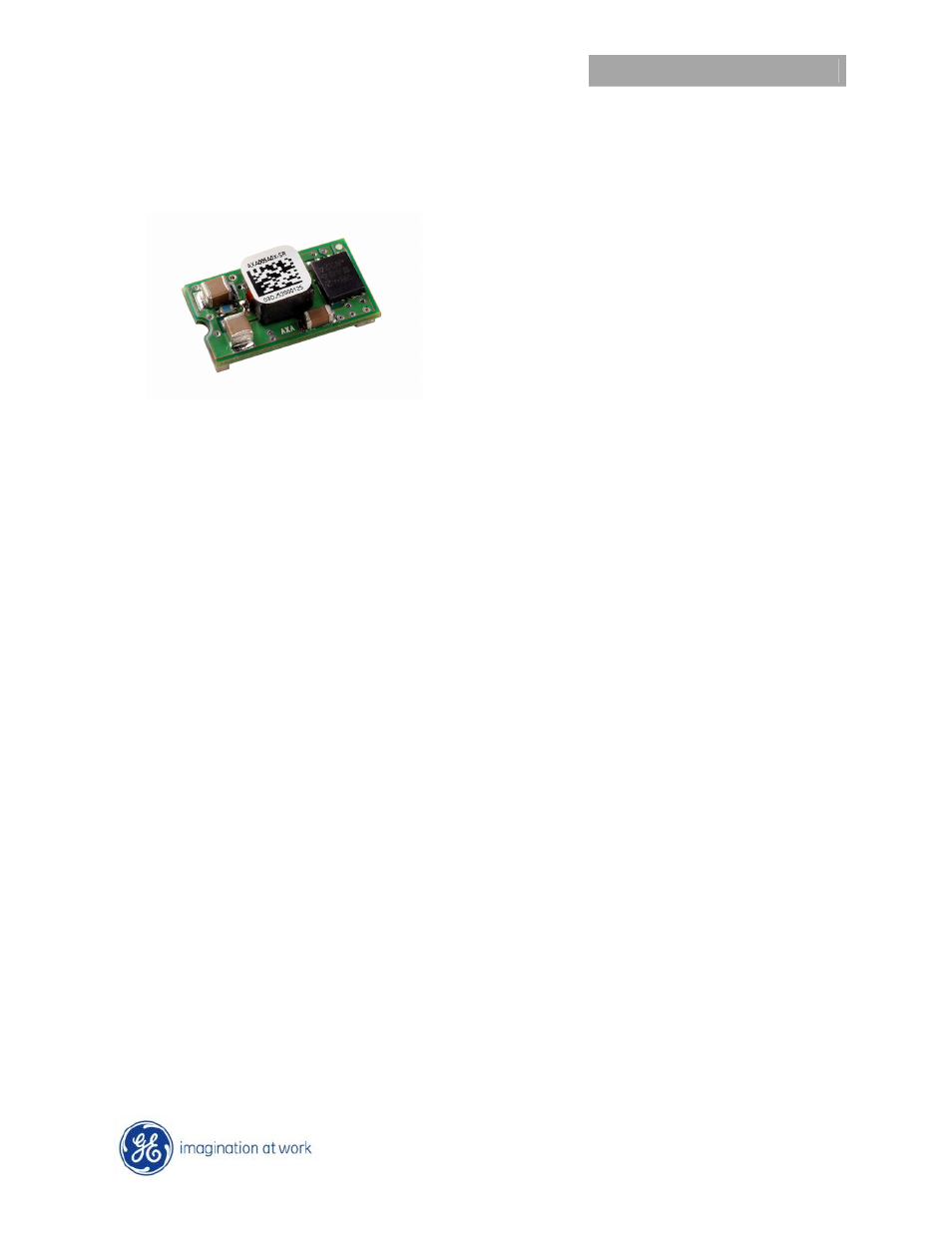

12V Austin MicroLynx TM 5A: Non-Isolated DC-DC Power Module
10Vdc – 14Vdc input; 0.75Vdc to 5.5Vdc Output; 5A Output Current
Features
 Compliant to RoHS EU Directive 2002/95/EC (-Z versions)
 Compliant to ROHS EU Directive 2002/95/EC with lead
solder exemption (non-Z versions)
 Delivers up to 5A output current
 High efficiency – 89% at 3.3V full load (V
IN
= 12.0V)
 Small size and low profile:
20.3 mm x 11.4 mm x 7.24 mm
(0.8 in x 0.45 in x 0.285 in)
 Low output ripple and noise
 High Reliability:
Calculated MTBF = 5.6M hours at 25 o C Full-load
 Output voltage programmable from 0.75 Vdc to 5.5Vdc
via external resistor
 Line Regulation: 0.3% (typical)
 Load Regulation: 0.4% (typical)
 Temperature Regulation: 0.4 % (typical)
 Remote On/Off
 Output overcurrent protection (non-latching)
 Wide operating temperature range (-40°C to 85°C)
 UL* 60950-1Recognized, CSA † C22.2 No. 60950-1-03
Certified, and VDE ‡ 0805:2001-12 (EN60950-1) Licensed
 ISO** 9001 and ISO 14001 certified manufacturing
facilities
Applications
 Distributed power architectures
 Intermediate bus voltage applications
 Telecommunications equipment
 Servers and storage applications
 Networking equipment
 Enterprise Networks
 Latest generation IC’s (DSP, FPGA, ASIC) and
Microprocessor powered applications
Description
Austin MicroLynx TM 12Vdc SMT (surface mount technology) power modules are non-isolated dc-dc converters that can deliver up
to 5A of output current with full load efficiency of 89% at 3.3V output. These modules provide precisely regulated output voltage
programmable via external resistor from 0.75Vdc to 5.5Vdc over a wide range of input voltage (V
IN
= 10 - 14V). Their open-frame
construction and small footprint enable designers to develop cost- and space-efficient solutions. Standard features include
remote On/Off, programmable output voltage and overcurrent protection.
* UL is a registered trademark of Underwriters Laboratories, Inc.
† CSA is a registered trademark of Canadian Standards Association.
‡ VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
RoHS Compliant
