2
A – Unpack and Inspect
Unpack the breaker and inspect it for any shipping damage.
Ensure that the breaker has the proper current, voltage, and
interrupting ratings for the application. Also check breaker
operation, as described in section D. Install any internal
accessories, as described in section B, and terminal lugs, as
described in section C, using the supplied installation
instructions. Check all accessories for proper voltage ratings,
installation, wiring routing, and operation. If internal
accessories have been installed, attach the appropriate labels
to the side of the breaker. An example of these labels is
illustrated in Figure 1.B.
FASHTJ C1 Black
C2 Black
110/130V 50/60Hz
110/125V DC
Inrush 40mA
B – Installation
Internal Accessories
Install any internal accessories, following the instructions
supplied with each accessory. The available accessories and
their mounting locations are listed in Table 1,Table 2,Table 3
and Table 4. Check all accessories for proper installation and
wire routing. Verify breaker operation with the installed
accessories.
Internal Accessory
Normally
Open
Normally
Closed
Max. No. Of
Accessories
Auxiliary switch left
mounted
FAS10LW FAS01LW 3
Auxiliary switch right
mounted
FAS10RW FAS01RW 2
Bell alarm mechanism FABAM10W FABAM01W 1
Bell alarm trip unit FABAT10W FABAT01W 1
Table 1. Auxiliary switch and bell alarm accessories.
Trip Voltage Shunt Trip Under voltage
Max. No. Of
Accessories
12 Vdc FASHTBW — 1 ST
24 Vac/Vdc FASHTDW FAURDW 1 ST or UV
48 Vac/Vdc FASHTFW FAUVRFW 1 ST or UV
110–130 Vac
110–125 Vdc
FASHTJW FAUVRJW 1 ST or UV
120 Vac FASHTKW — 1 ST
220/240 Vac
250 Vdc
FASHTNW FAUVRNW 1 ST or UV
277 Vac FASHT7W FAUVR7W 1 ST or UV
400/480 Vac FASHTUW FAUVRUW 1 ST or UV
Table 2. Shunt trip and under voltage accessories.
Accessory/Kit
Catalog #
Rating (Voltage) Description
FAMBAT 240 / 480 / 600 Spare Battery Module
FAMGFT2 240 / 480 / 600
Ground Fault Trip + Fault
Type Indicators
FAMGFM2 240 / 480 / 600
Ground Fault Trip +
Modbus
Communications
FAMFGS2 240 / 480 / 600
Ground Fault Trip + 2-
Channel Load Shedding
FAMAM2 240 / 480 / 600
Ammeter with 4-digit
LCD Display
FAMB2 240 / 480 / 600 Spare Filler Module
FAMGAT2 240 / 480 / 600
Ground Fault Alarm +
Fault Type Indicators
FAMGAM2 240 / 480 / 600
Ground Fault Alarm +
Modbus
Communications
FAMGAS2 240 / 480 / 600
Ground Fault Alarm + 2-
Channel Load Shedding
FAMSM2 240 / 480 / 600
2-Channel Load
Shedding + Modbus
Communications
FAMST2 240 / 480 / 600
2-Channel Load
Shedding + Fault Type
Indicators
FAMMT2 240 / 480 / 600
Fault Type Indicators +
Modbus
Communications
FAMECM 240 / 480 / 600
External
Communications and
Contact Module
Table 3: Module Accessories/Kits for SMR2 (Internal Accessories).

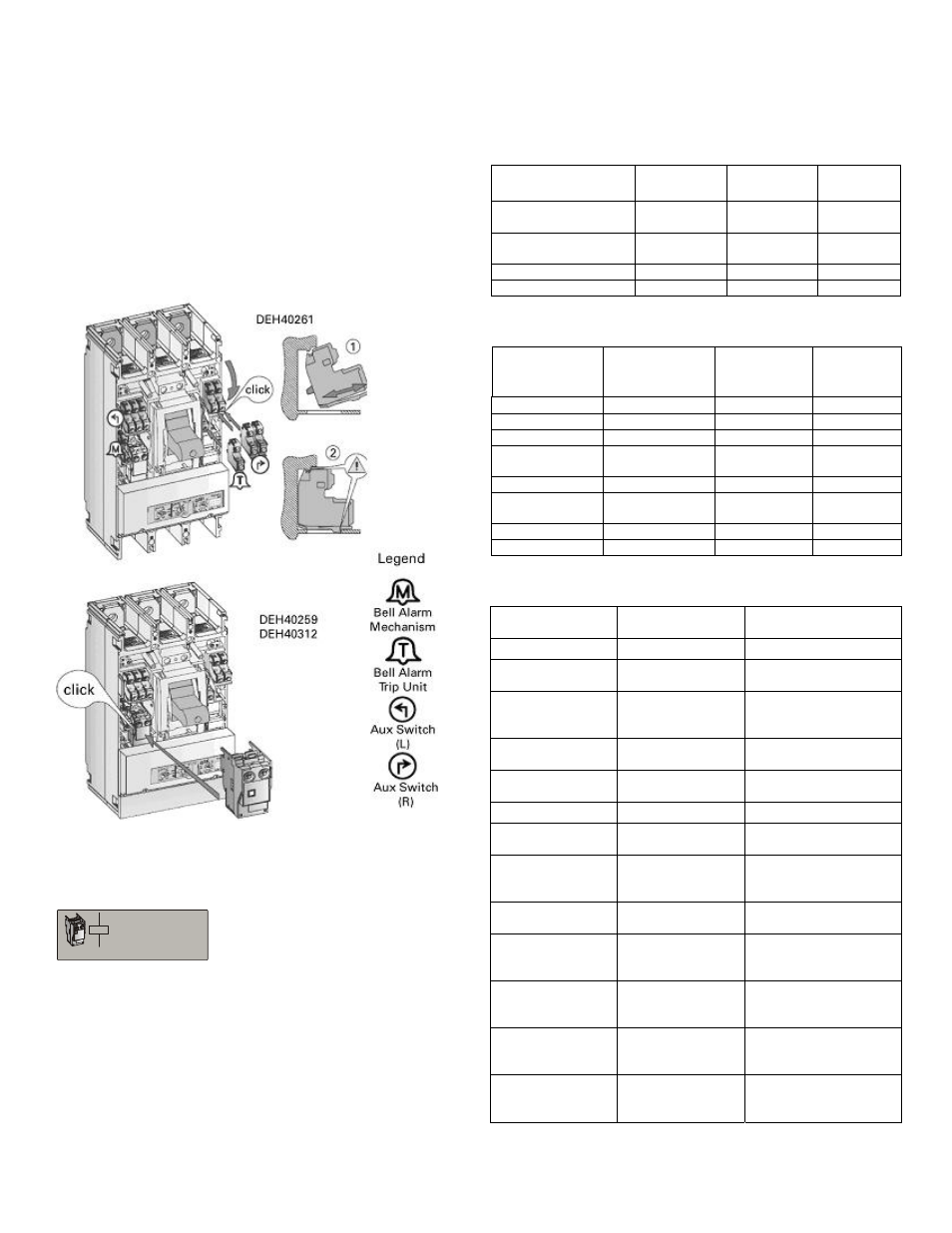

Figure 1.A. Installation of typical breaker accessories. See the
Buylog® for details.
Figure 1.B. Accessory label.
