Packaging Details
The surface mount versions of the EHHD006A0B (suffix –S) are
supplied as standard in the plastic trays shown in Figure 27.
Tray Specification
Material Antistatic coated PVC
Max surface resistivity 10 12 /sq
Color Clear
Capacity 12 power modules
Min order quantity 48 pcs (1 box of 4 full trays + 1
empty top tray)
Each tray contains a total of 12 power modules. The trays are
self-stacking and each shipping box for the EHHD006A0B
(suffix –S) surface mount module contains 4 full trays plus one
empty hold-down tray giving a total number of 48 power
modules.

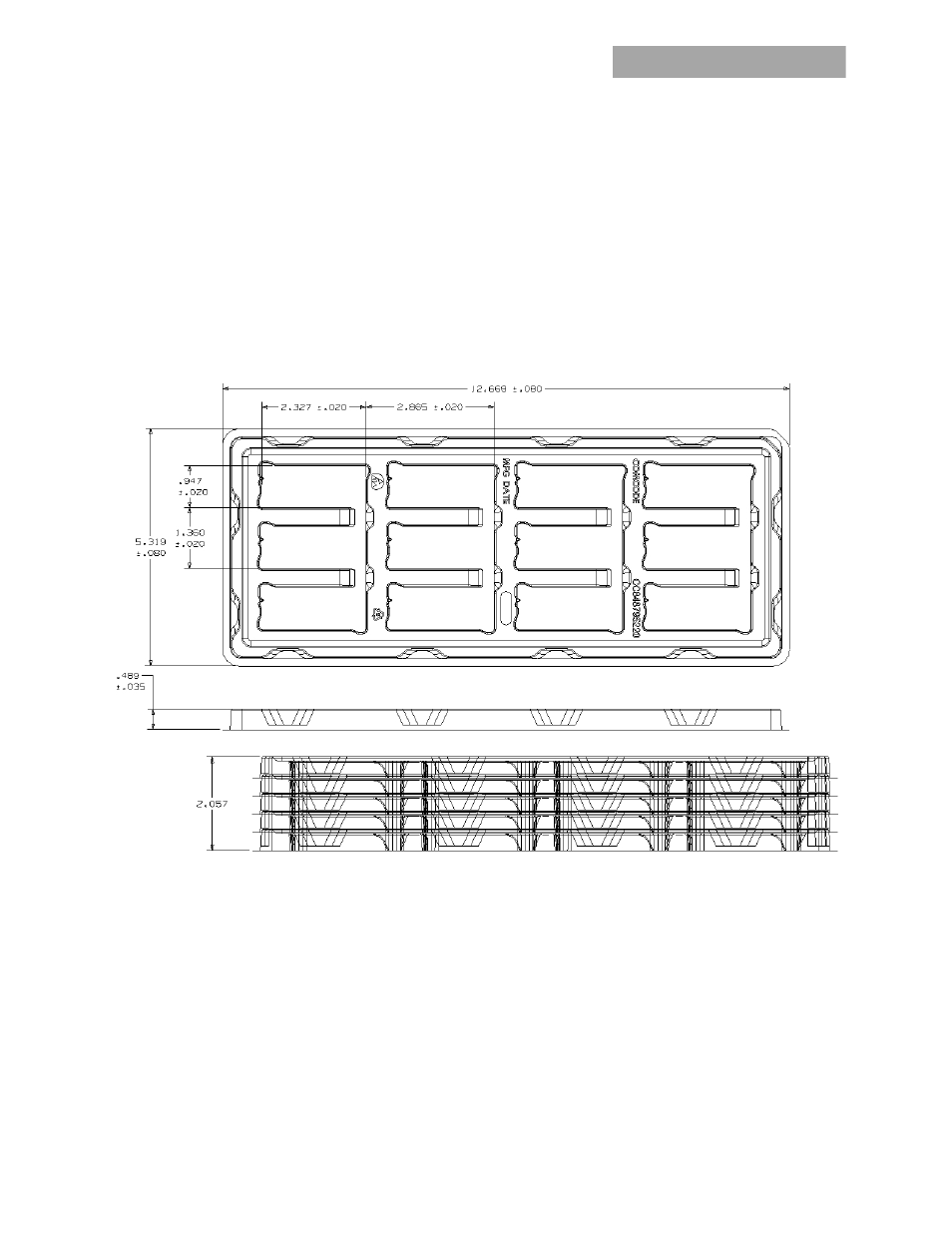

Figure 27. Surface Mount Packaging Tray
