GE Industrial Solutions EHHD006A0B Hammerhead Series - Manual

GE
Data Sheet
July 12, 2013 ©2012 General Electric Company. All rights reserved. Page 1

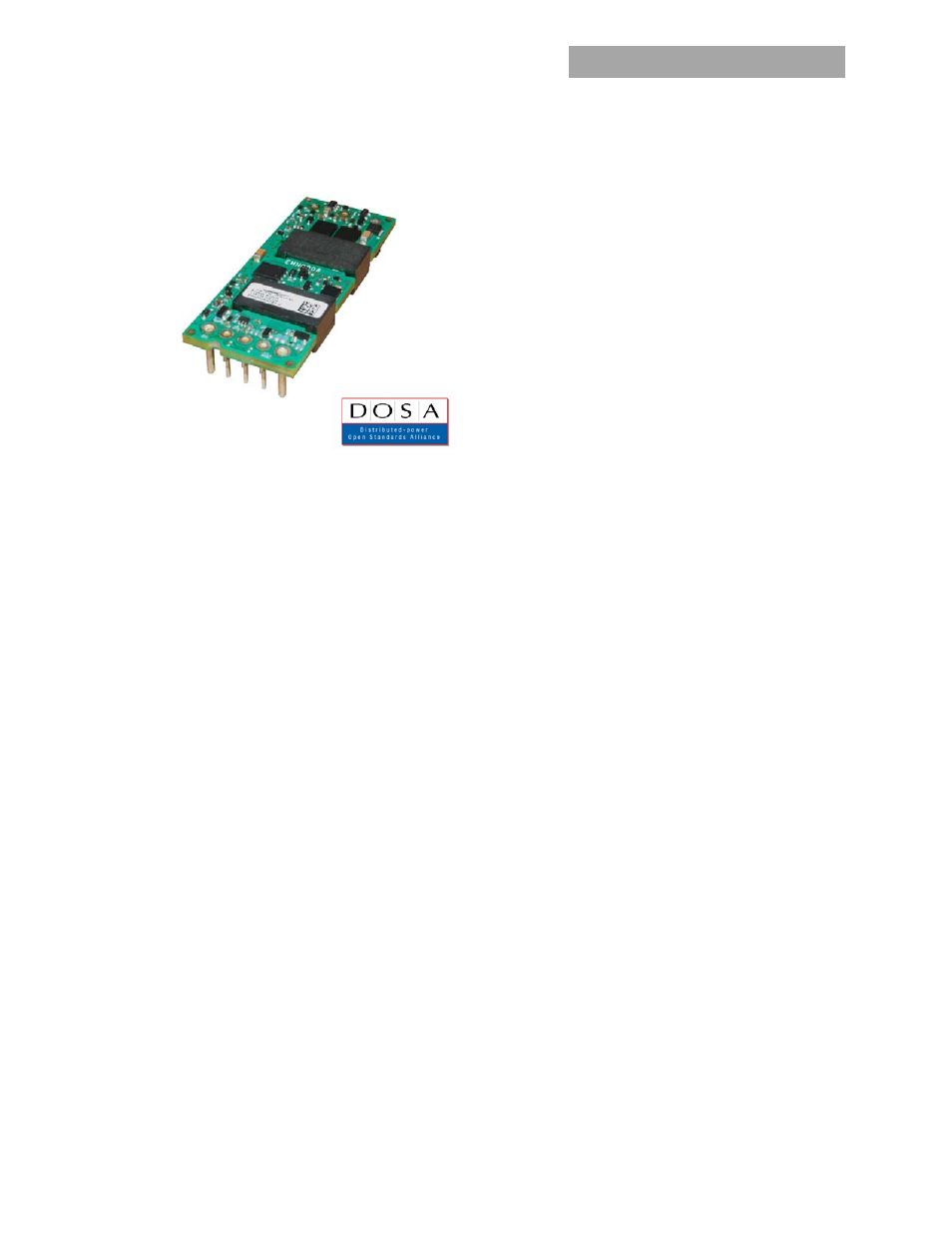

EHHD006A0B Hammerhead* Series; DC-DC Converter Power Modules
18-75Vdc Input; 12Vdc, 6.0A, 72W Output
Features
 Compliant to RoHS II EU “Directive 2011/65/EU (-Z versions)
 Compliant to REACH Directive (EC) No 1907/2006
 Flat and high-efficiency curve
 Industry standard, DOSA compliant footprint
57.9mm x 22.8mm x 7.6mm
(2.28 in x 0.9 in x 0.30 in)
 Low-profile height and reduced component skyline
 Ultra-wide input voltage range: 18-75 V
dc
 Tightly regulated output
 Remote sense
 Output voltage adjust: 90% to 110% of V
O,nom
 Constant switching frequency
 Positive remote On/Off logic
 Input under/overvoltage protection
 Output overcurrent and overvoltage protection
 Overtemperature protection
 No reverse current during output shutdown
 Wide operating temperature range (-40°C to 85°C)
 Suitable for cold wall cooling using suitable Gap Pad applied
directly to top side of module
 ANSI/UL # 60950-1-2011 and CAN/CSA† C22.2 No. 60950-1-
07, Second Edition + A1:2011 (MOD), dated March 19, 2011;
and DIN EN 60950-1 (VDE
‡ 0805 Teil 1):2011-01; EN 60950-
1:2006 + A11:2009 + A1:2010, DIN EN 60950-1/A12 (VDE
0805-1/A12):2011-08; EN 60950-1/A12:2011-02, IEC 60950-
1(ed.2);am1:2009
 CE mark meets 2006/95/EC directive §
 Meets the voltage and current requirements for ETSI 300-
132-2 and complies with and licensed for basic insulation
rating per EN60950-1
 2250 Vdc Isolation tested in compliance with IEEE 802.3 ¤
PoE standards
 ISO ** 9001 and ISO 14001 certified manufacturing facilities
Applications
 Distributed Power Architectures
 Wireless Networks
 Access and Optical Network Equipment
 Industrial Equipment
Options
 Negative Remote On/Off logic (preferred)
 Overcurrent/Overtemperature/Overvoltage protections
(Auto-restart) (preferred)
 Heat plate version (-H)
 Surface Mount version (-S)
Description
The EHHD006A0B Series, eighth-brick, low-height power modules are isolated DC-DC converters that provide a single, precisely
regulated output voltage over an ultra-wide input voltage range of 18-75V
dc
. The EHHD006A0B provides 12V
dc
nominal output
voltage rated for 6A
dc
output current. The module incorporates GE’s vast heritage for reliability and quality, while also using the
latest in technology and component and process standardization to achieve highly competitive cost. The open frame module
construction, available in both surface mount and through-hole packaging, enables designers to develop cost and space efficient
solutions. The module achieves typical full load efficiency greater than 92% at V
IN
=24V
dc
and greater than 90% at V
IN
=48V
dc
.
Standard features include remote On/Off, remote sense, output voltage adjustment, overvoltage, overcurrent and
overtemperature protection. An optional heat plate allows for external standard, eighth-brick heat sink attachment to
achieve higher output current in high temperature applications.
* Trademark Of General Electric Company
# UL is a registered trademark of Underwriters Laboratories, Inc.
† CSA is a registered trademark of Canadian Standards Association.
‡ VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
§ This product is intended for integration into end-user equipment . All of the required procedures of end-use equipment should be followed.
¤ IEEE and 802 are registered trademarks of the Institute of Electrical and Electronics Engineers, Incorporated.
** ISO is a registered trademark of the International Organization of Standards
RoHS Compliant
