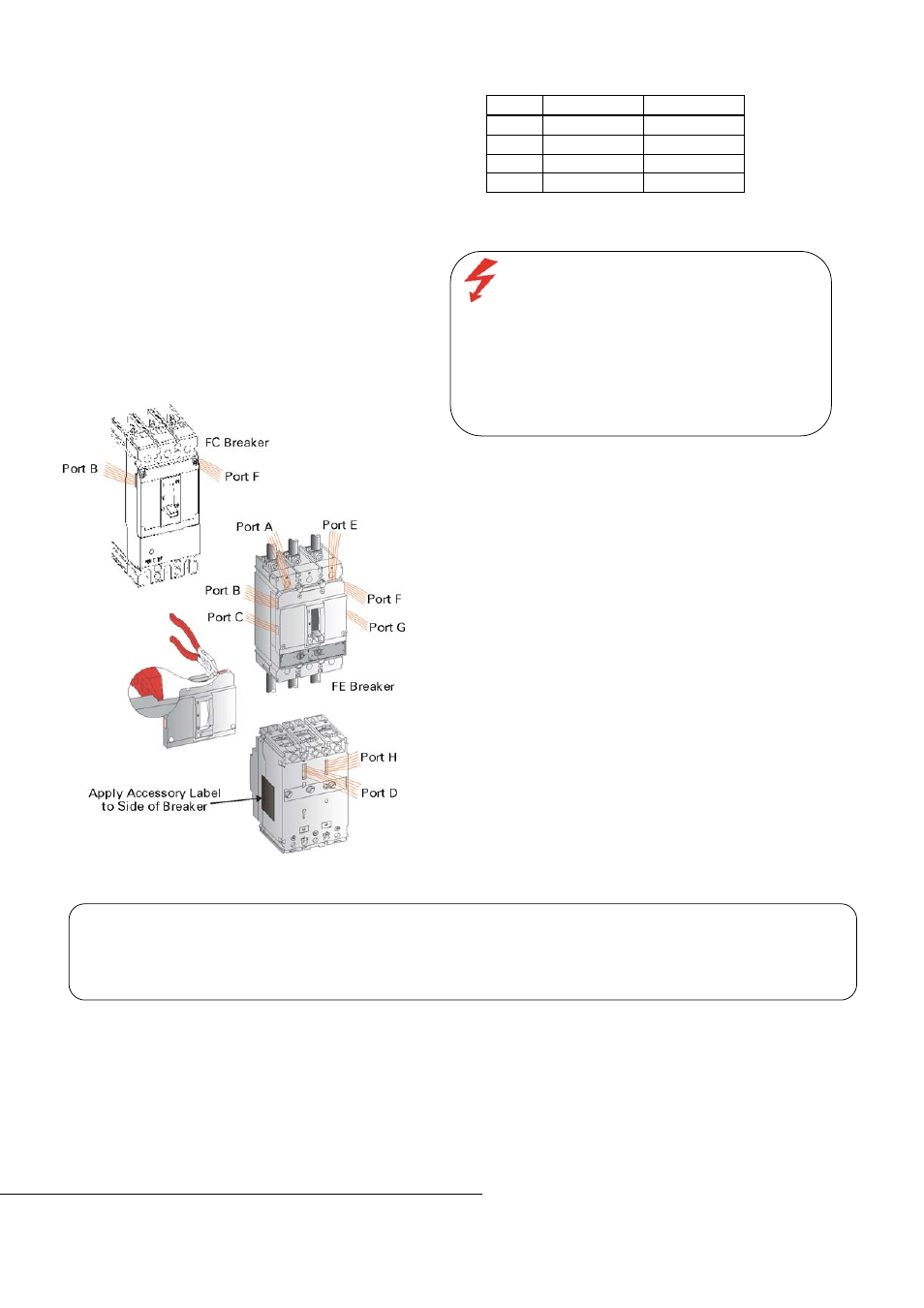

Figure 8. Wire routing and port knockouts.
Port FB/FC Breaker FE/FG Breaker
A, E N/A 8
B, F B: 5; F: 9 5
C, G N/A 3
D/ H 4 6
Table 6. Maximum number of accessory wires allowed per port.
Step 5 – Attach the Label and
Replace the Breaker Cover
Attach the accessory label to the side of the breaker, as
illustrated in Figure 8, for each internal accessory
installed.
Replace the breaker cover, as illustrated in Figure 3.
Tighten the mounting screws to 11 lb-in (1.2 Nm).
Complete the installation by performing an operational
check.
WARNING : It is important that the cover is installed
correctly to ensure proper circuit breaker operation.
AVERTISSEMENT: Il es important de verifier que
tout cuvercle ou cache de protection est
correctement installe afin d’assurer le bon
fonctionnement de l’appareil.
g
GE Industrial Systems
General Electric Company
41 Woodford Ave., Plainville, CT 06062
www.geindustrial.com
DEH40324 R03 0808 © 2003 General Electric Company
These instructions do not cover all details or variations in equipment nor do they provide for every possible contingency
that may be met in connection with installation, operation, or maintenance. Should further information be desired or
should particular problems arise that are not covered sufficiently for the purchaser’s purposes, the matter should be
referred to the GE Company. The circuit breaker is a sealed unit that contains no user-serviceable parts. Tampering
with the seal will void the warranty.
Step 4 – Wire Routing, Cover
Knockouts, and Port Wiring
Determine the wire routing, as shown in Figure 8, as
follows:
• For an FB/FC breaker, use ports B, F, D, and H.
• For an FE/FG breaker, use a sharp knife or wire
cutter to remove the knockouts in the breaker
accessory cover.
Route the accessory wiring out of the breaker through
the exit ports, being careful to dress the wiring from the
accessory without pinching the insulation.
Table 6 lists the maximum number of wires allowed per
port. The maximum number of wires per port is based
on an insulation outside diameter of 0.100 in. (2.54
mm). Scale the given number of wires up or down for
wires with a different diameter.
