GE Industrial Solutions Record Plus For use with FB100, FC100,FE250, and FG600 - Manual (Page 2)

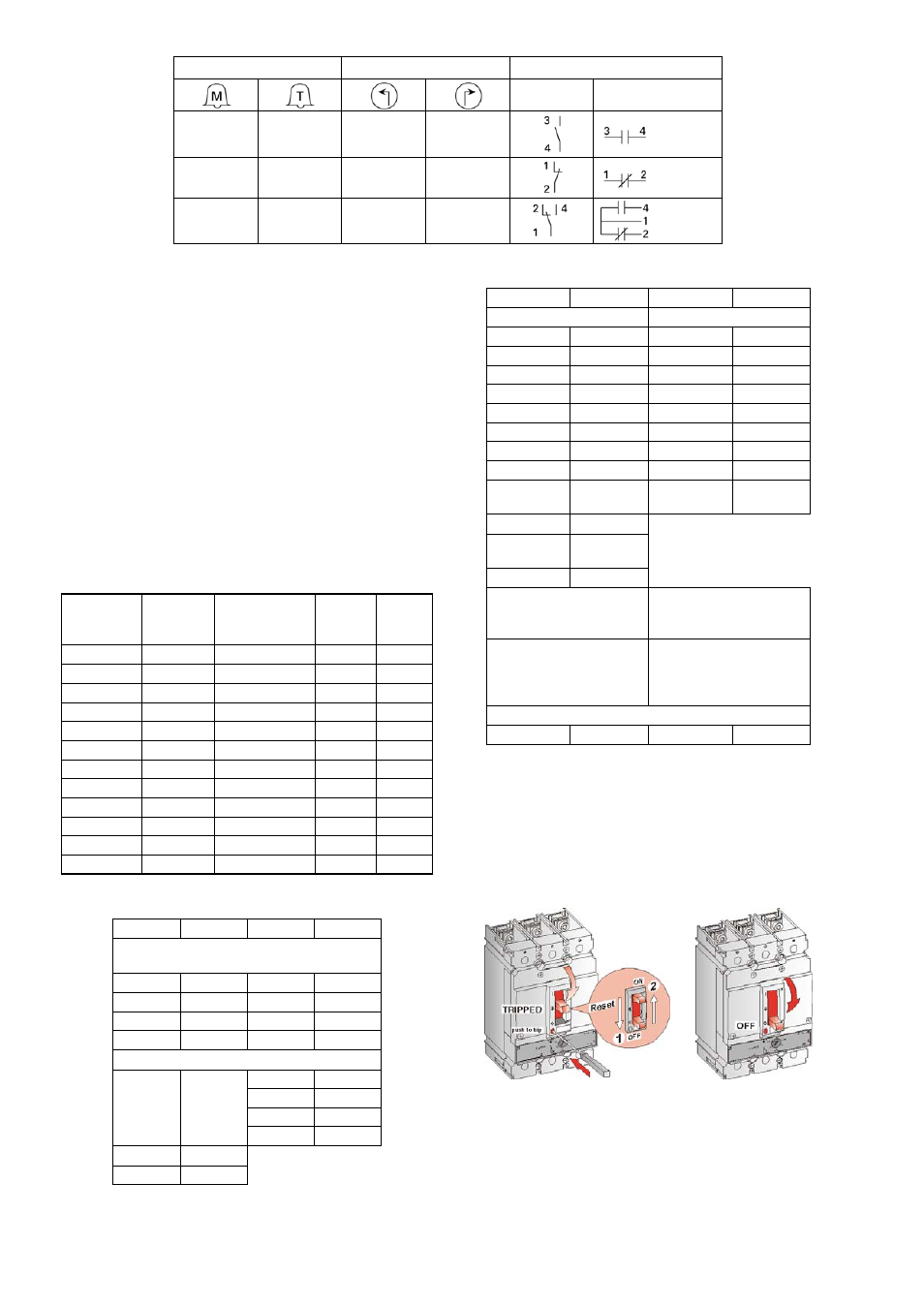

Bell Alarm Switches Auxiliary Switches Switch Symbols
IEC UL/CSA
FABAM10 FABAT10 FAS10L FAS10R
Form A
FABAM01 FABAT01 FAS01L FAS01R Form B
FABAM11 FABAT11 FAS11L FAS11R Form C
Table 2. Catalog numbers for Record Plus™ auxiliary and bell alarm switches.
Step 1 – Unpack and Inspect
Unpack the bell alarm or auxiliary switch kit and inspect
it for shipping damage. Read the circuit breaker
installation instructions carefully. Insure that the circuit
breaker and the accessory have the proper ratings for
current, voltage, interruption, and contact duty; wire
routing; installation; and operation for the application.
Form C switches are factory installed with #18 AWG
wires, 36 inches long. All other switches with the catalog
number suffix W are factory installed with #16 AWG
wire, 36 inches long.
Wire colors for each switch catalog number are listed in
Table 3. Contact ratings for Form C switches are listed
in Table 4. Contact ratings for Form A and B switches
are listed in Table 5.
Cat. No.
Commo
n
1
NC
2 4
NO
4
FAS01L White Brown/White
FAS10L White Red
FAS11L White Brown/White Red
FAS01R White Brown/White
FAS10R White Red
FAS11R White Brown/White Red
FABAT01 Orange Pink
FABAT10 Orange Grey
FABAT11 Orange Pink Grey
FABAM01 Yellow Purple
FABAM10 Yellow Brown
FABAM11 Yellow Purple Brown
Table 3. Wire colors for auxiliary and bell alarm switches.
Vac A Vdc A
Low-energy gold-plated contacts,
catalog number suffix G
5 1 5 1
12 1 12 1
24 1 24 1
30 1 30 1
Standard contacts
48 5 48 0.3
60 5 60 0.3
120 5 110 0.3
220 5 125 0.3
240 5
277 5
Table 4. Contact ratings for Form C switches; cat. nos. FA/FEBAT11,
FABAM11, FAS11L, FAS11R.
Vac A Vdc A
A600/AC15 Q300/DC13
12 10* 12 2.5
24 10* 24 2.5
48 10* 48 1.1
60 10* 60 1
110 6* 110 0.55
120 6* 125 0.55
220 3 220
0.27
240 3 250 0.27
380
1.9 (2.0
for AC15)
300
0.2 for
DC13
480 1.5
500
1.4 (1.5
for AC15)
600 1.2
Maximum VA:
Making – 7200 VA
Breaking – 720 VA
Maximum VA = 69 VA
Maximum Thermal
Current = 10 A
* 5 A for screw-type
terminals
Maximum Thermal
Current = 69 VA
Minimum low-energy switching: IEC609747-5-4
12 5 mA 12 5 mA
Table 5. Contact ratings for Form A and B switches; cat. nos.
FA/FEBAT10/01, FABAM10/01, FAS10L/01L, FAS10R/01R.
Step 2 – Breaker Status
Either trip the circuit breaker by activating the red trip
button on the front of the breaker or move the breaker
handle to the OFF position, both shown in Figure 2.
(a) (b)
Figure 2. (a) Tripping the breaker or (b) turning it OFF.
