GE Industrial Solutions Record Plus Wire Connector Lug Kits: FE250 - Manual (Page 4)

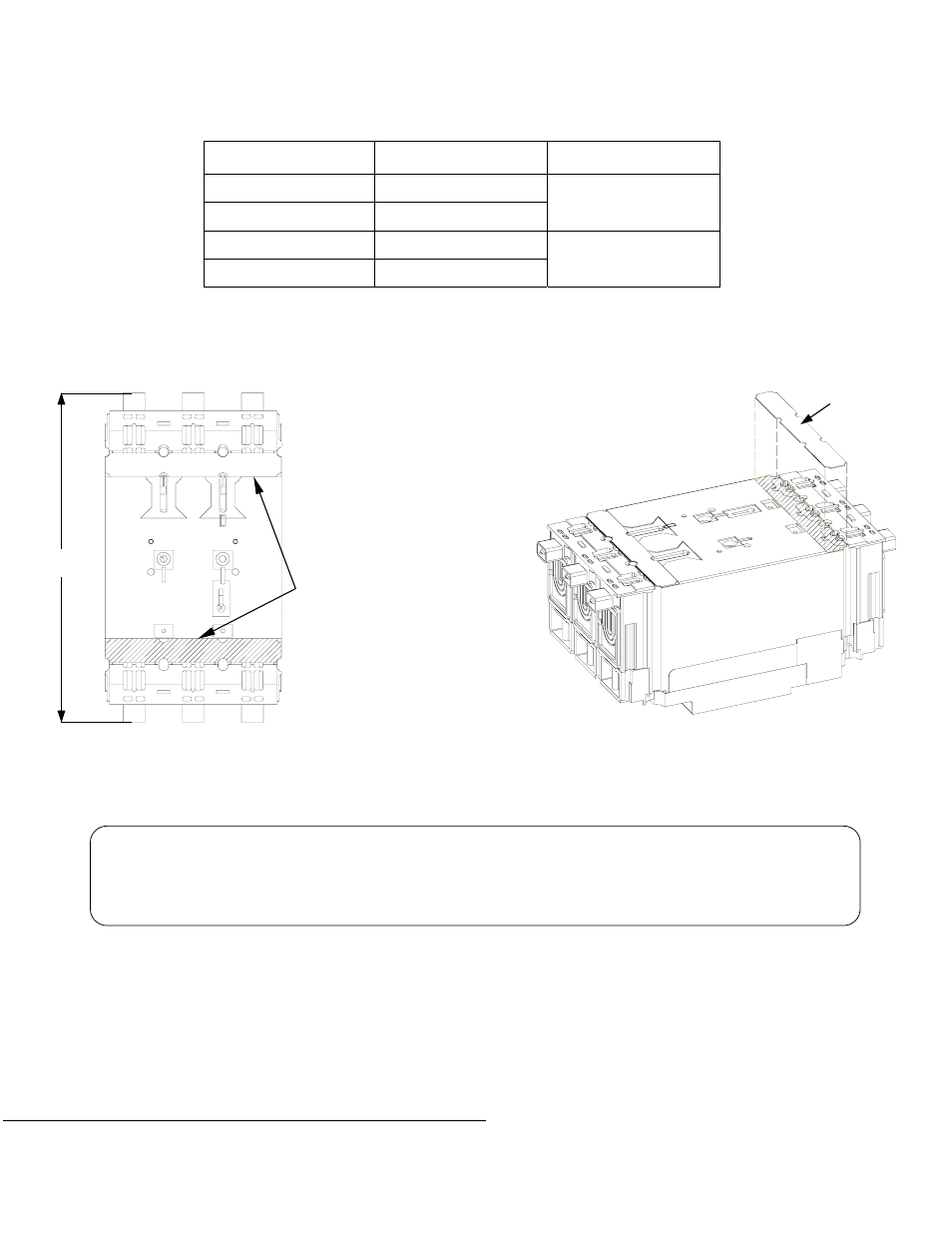

Wire Torque N-m (lb-in) Product Catalog
Number
#14-#6 AWG 7.9 N-m (70 lb-in)
#4-3/0 AWG 16.9 N-m (150 lb-in)
FCAL15/ FCALK15
#8-1AWG 19.8 N-m (175 lb-in)
#1/0- 350Kcm 31.1 N-m (275 lb-in)
FCAL16/ FCALK16
Table 3. Lug Torque Values.
Align the Adhesive base cover
[6] to this line on line and load
side of the breaker as shown.
Figure 3. Installation of adhesive base cover on lug cover and FE breaker interface
195.04
[6]
These instructions do not cover all details or variations in equipment nor do they provide for every possible
contingency that may be met in connection with installation, operation, or maintenance. Should further
information be desired or should particular problems arise that are not covered sufficiently for the
purchaser’s purposes, the matter should be referred to the GE Company. The circuit breaker is a sealed unit
that contains no user-serviceable parts. Tampering with the seal will void the warranty.
g
GE Consumer & Industrial
General Electric Company
41 Woodford Ave., Plainville, CT 06062
www.geindustrial.com
DEH41054 03 R0625431 © 2004 General Electric Company
