CAR2548DC series dc-dc converters
Input: -36Vdc to -75Vdc; Output: 48Vdc @ 2500W; 3.3Vdc or 5 Vdc @ 1A
December 6, 2013 ©2013 General Electric Company. All rights reserved. Page 13
Alarm Table
Test Condition
LED Indicator Monitoring Signals
INPUT OK DC OK FAULT FAULT DC OK INPUT OK TEMP OK
1 Normal Operation Green Green OFF High High High High
2 Low or NO INPUT OFF OFF Red Low Low Low High
3 OVP Green OFF Red Low Low High High
4 Over Current Green OFF Red Low Low High High
5 Over Temp Alarm Green Green Red Low High High Low
6 Over Temp Fault Green OFF Red Low Low High Low
Note: Test condition #2 has 2 modules working in parallel. One module is running and the other has no iNPUT.

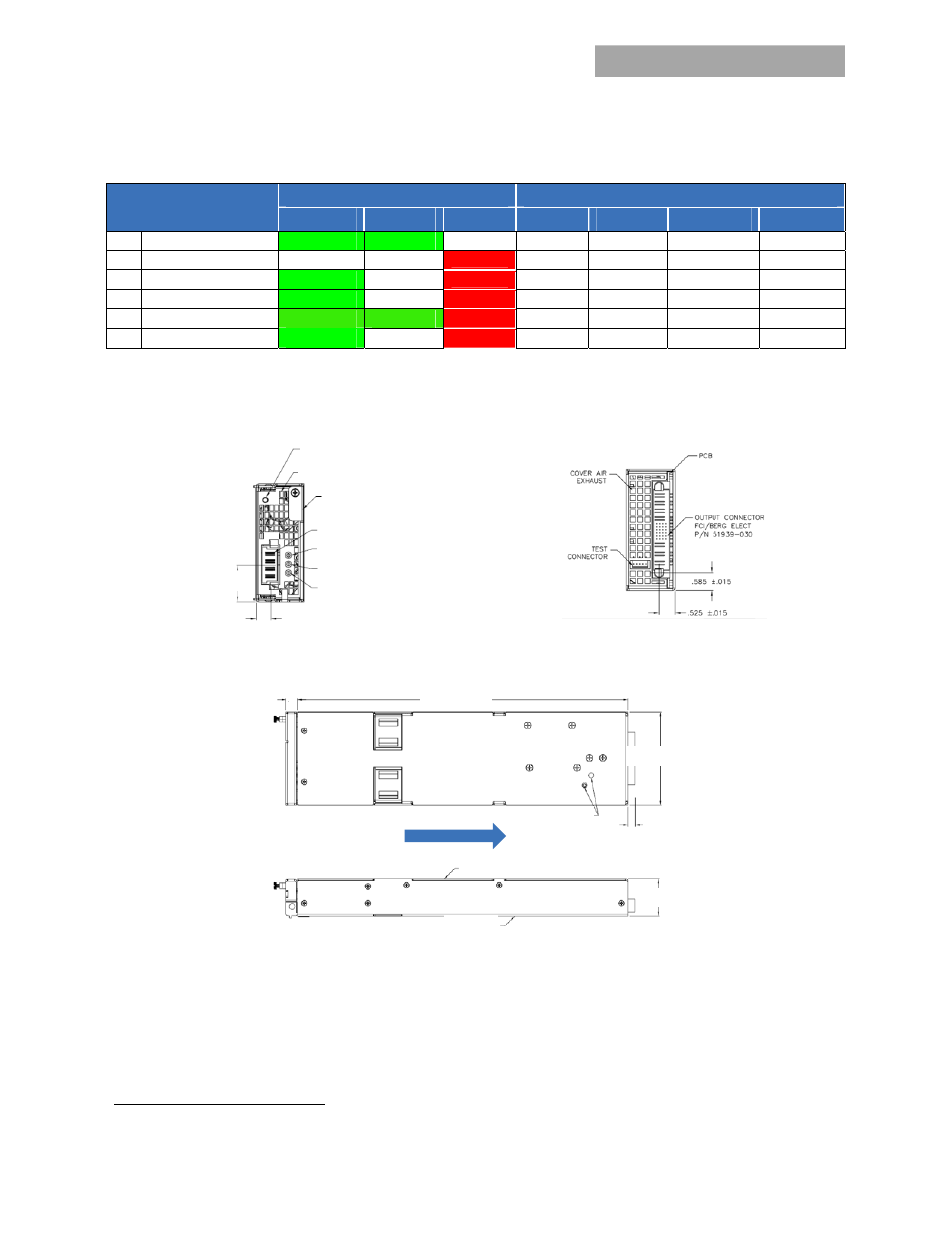

Outline Drawing
Input connector: FCI Berg 51939-311 or TYCO 6450129-3
Input mate: FCI Berg 10080594-1E0101LF 10
Output connector: FCI Berg 51939-030
Output mate: FCI Berg 51915-051
10 This is a cable harness with 10 foot of #10ga stranded wire (2 – black and 2 – red) not-terminated on user end
RED LED (FAULT)
Airflow
14.250 ±.020
4.000 ±.020
0.50
0.330
1.610 ±.020
COVER
CHASSIS
POT ADJ.
GREEN LED (DC-OK)
GREEN LED (INPUT-OK)
0.494
1.250
INPUT
CONNECTOR
HANDLE
AIR INLET
#10-32
GROUND STUD
