Installing the Flux Shifter Assembly
1. Remove the two 1 /
4
-20 nuts or bolts and washers
on the right side of the mechanism that hold the
mechanism together. The flux shifter will be held
in place with the existing studs or bolts.
2. Install the flux shifter assembly onto the existing
studs as shown in Figure 10. Use the 1 / 4 -20 nuts
or bolt and lock washer to secure the top of the
bracket to the side of the handle mechanism and
the lock washer and special fastener to secure the
bottom.
NOTE: Figure 10 shows the handle removed for
clarity. It is not necessary to remove the handle
during installation.
10
3. Place the two 1 / 2 " spacers over the studs on the
flux shifter mounting plate, as shown in Figure
10. Place the two mounting holes in the trip unit
support bracket over the studs on the top of the
flux shifter bracket, as shown in Figure 11. Secure
with the 1 / 4 -20 nuts, flat washers, and lock
washers provided.
NOTE: The right-corner enclosure bolt may have to
be shortened if it interferes with the bracket or the
trip unit.

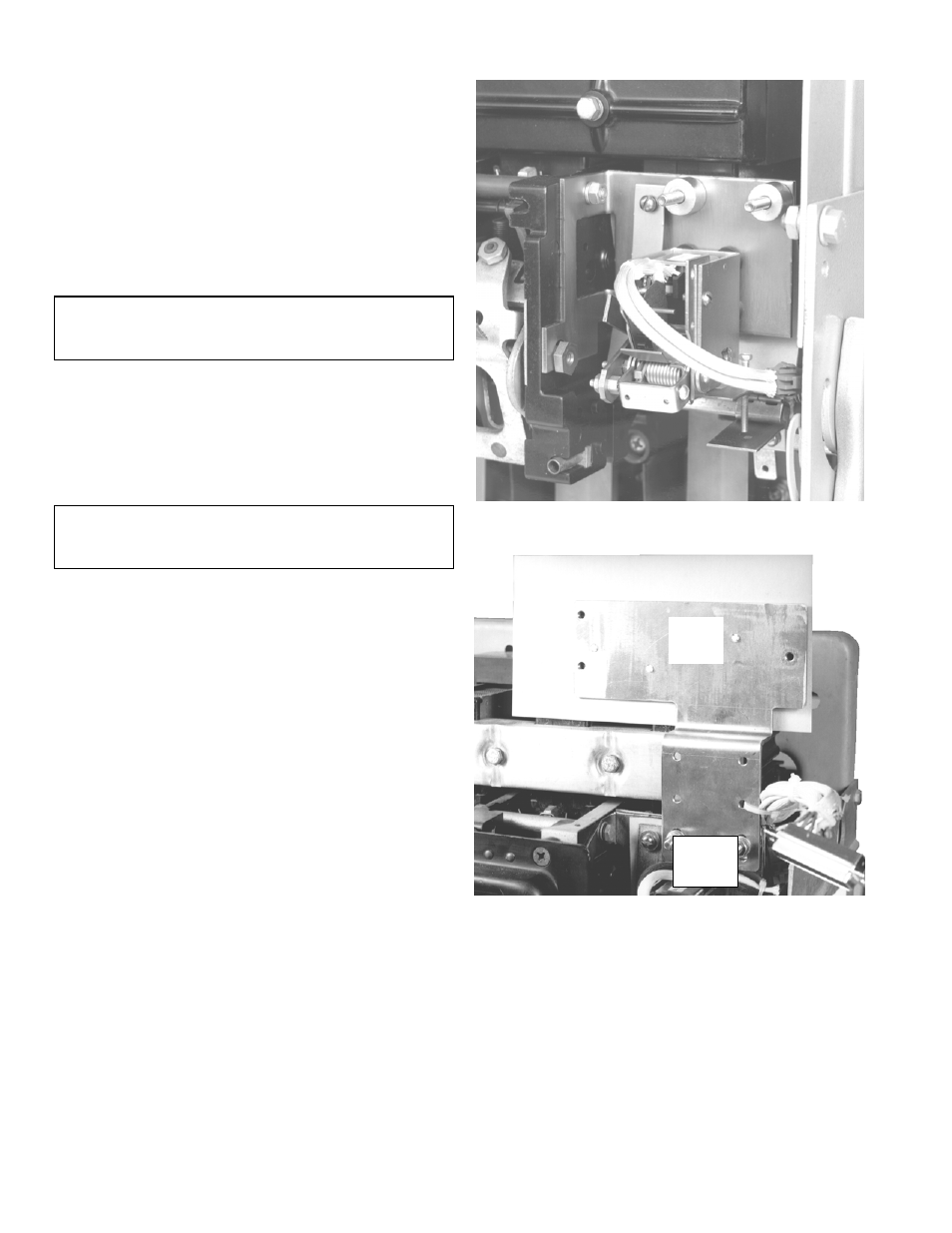

Figure 10. Installing the flux shifter assembly.
Trip Unit
Support
Bracket
Figure 11. Trip unit support bracket installed.
