Data Sheet
July 2, 2010

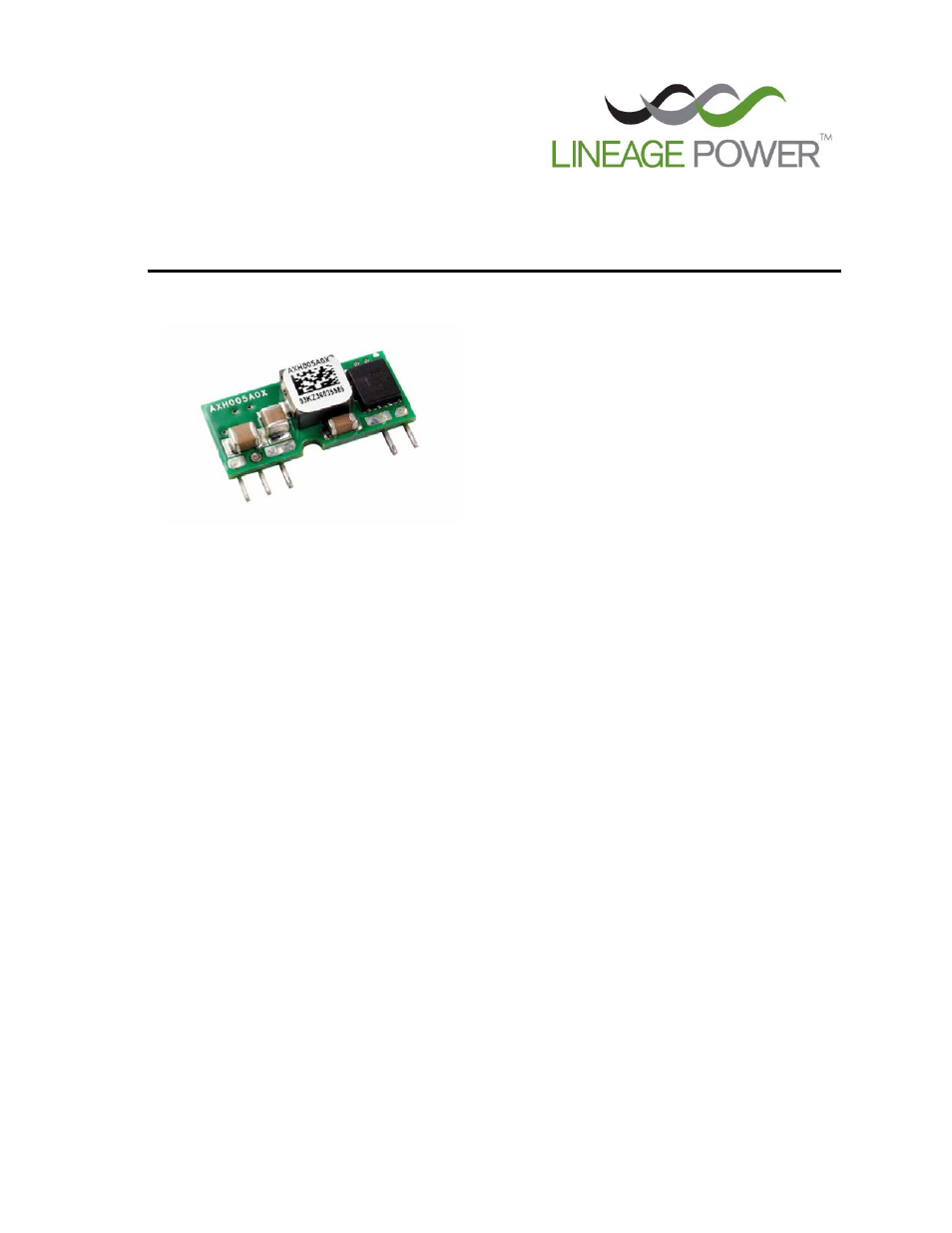

Austin Microlynx TM SIP Non-isolated Power Modules:
3Vdc – 5.5Vdc input; 0.75Vdc to 3.63Vdc Output; 5A Output Current
* UL is a registered trademark of Underwriters Laboratories, Inc.
†
CSA is a registered trademark of Canadian Standards Association.
‡
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
Document No: DS03-083 ver. 1.35
Features
 Compliant to RoHS EU Directive 2002/95/EC (-Z
versions)
 Compliant to ROHS EU Directive 2002/95/EC with
lead solder exemption (non-Z versions)
 Delivers up to 5A output current
 High efficiency – 94% at 3.3V full load (V
IN
= 5.0V)
 Small size and low profile:
22.9 mm x 10.2 mm x 6.66 mm
(0.9 in x 0.4 in x 0.262 in)
 Low output ripple and noise
 High Reliability:
Calculated MTBF = 19M hours at 25 o C Full-load
 Output voltage programmable from 0.75 Vdc to
3.63Vdc via external resistor
 Line Regulation: 0.3% (typical)
 Load Regulation: 0.4% (typical)
 Temperature Regulation: 0.4 % (typical)
 Remote On/Off
 Output overcurrent protection (non-latching)
 Wide operating temperature range (-40°C to 85°C)
 UL * 60950-1Recognized, CSA † C22.2 No. 60950-1-
03 Certified, and VDE ‡ 0805:2001-12 (EN60950-1)
Licensed
 ISO** 9001 and ISO 14001 certified manufacturing
facilities
Applications
 Distributed power architectures
 Intermediate bus voltage applications
 Telecommunications equipment
 Servers and storage applications
 Networking equipment
 Enterprise Networks
 Latest generation IC’s (DSP, FPGA, ASIC) and
Microprocessor powered applications
Description
Austin MicroLynx TM SIP (single in-line package) power modules are non-isolated dc-dc converters that can deliver
up to 5A of output current with full load efficiency of 94% at 3.63V output. These modules provide precisely
regulated output voltage programmable via external resistor from 0.75Vdc to 3.63Vdc over a wide range of input
voltage (V
IN
= 3.0 – 5.5V). Their open-frame construction and small footprint enable designers to develop cost- and
space-efficient solutions. Standard features include remote On/Off, programmable output voltage and overcurrent
protection.
RoHS Compliant
