4

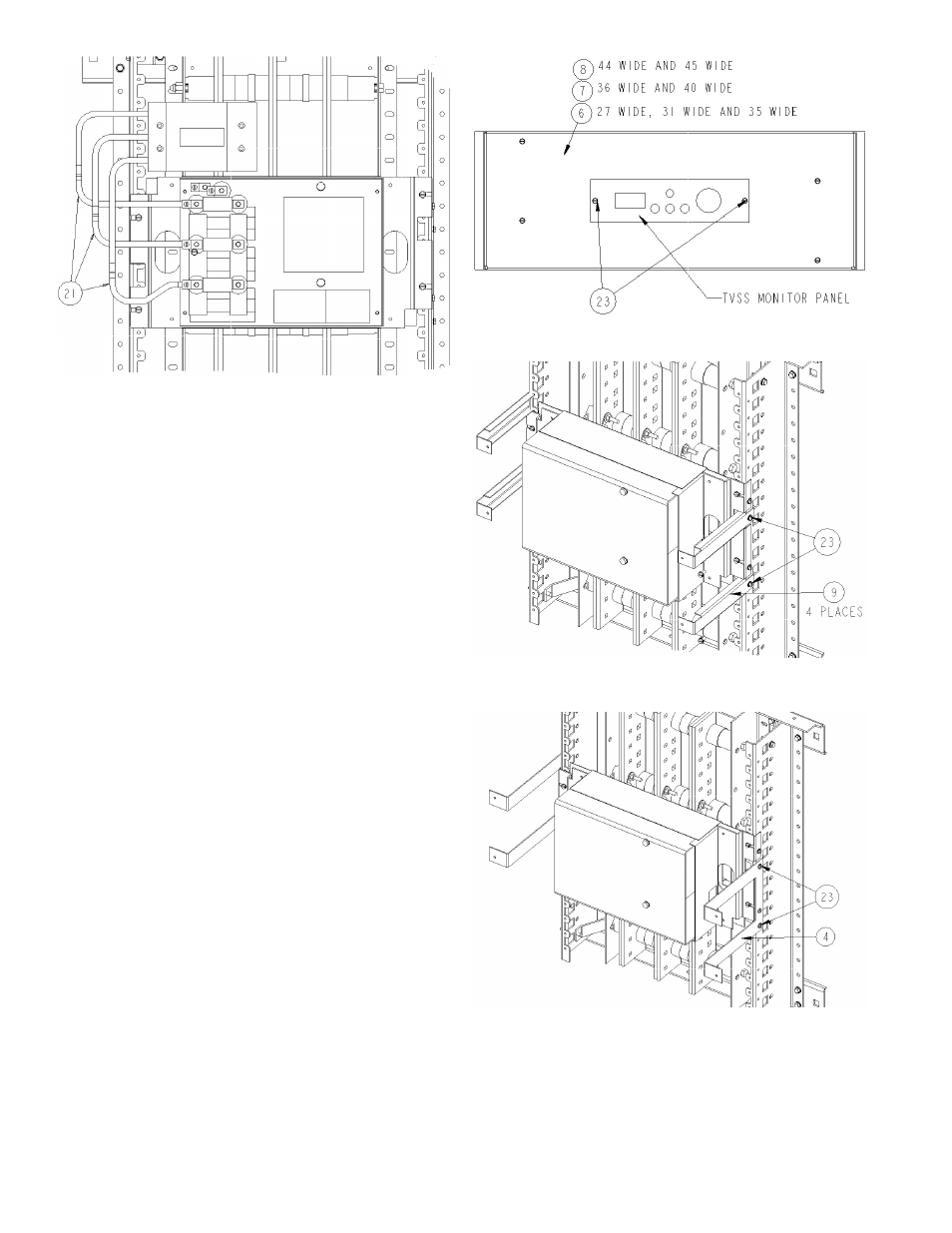

Figure 10. TVSS with a circuit breaker disconnect.
7. Install the TVSS monitor plate to the filler plate.
Mount the monitor plate, provided with the TVSS, to
the cover plate [6, 7, or 8], as shown in Figure 11.
Secure with two 10-32 x
7 / 16 " thread-forming screws
[23] and tighten to 22 in-lb.
8. Install the filler supports. For 27W, 31W, and 35W
panels, mount four filler supports [9] to the Z rail of
the vertical bus interior, as shown in Figure 12. For
36W, 40W, 44W, and 45W panels, mount two filler
supports [4] to the Z rail, as shown in Figure 13.
Secure the supports with 10-32 x
7 / 16 " thread-forming
screws [23] and tighten to 22 in-lb.
9. Install the filler plate assembly. Plug the cable harness
into the TVSS and monitor panel. Mount the filler
plate assembly to the filler supports, as shown in
Figure 14. Secure with four 10-32 x
7 / 16 " thread-
forming screws [23] and tighten to 22 in-lb.
Figure 11. TVSS monitor plate mounted to the cover.
Figure 12. Filler supports for 27 and 31 wide panelboard or 35 wide
switchboard.
Figure 13. Filler supports for 36, 40, and 44 wide panelboard or 40
and 45 wide switchboard.
