Spectra Series™ Power Panelboards &
Switchboard Panels
ATVS Tranquell
®
Transient-Voltage Surge Suppressors
Application
This kits are provided for installation of ATVS Tranquell
and Tranquell VII transient-voltage surge suppressors in
Spectra bolt-on and plug-in panels and switchboards. The
catalog numbers and descriptions of the available units
are listed in Table 1. The K suffix denotes field-installable
kits. The catalog number for the mounting and cover kit is
ATVSHK.
All TVSS units are 7x (9
5
/
8
") high and the minimum
equipment width is 27-inch wide Spectra panelboard or
35-inch wide Spectra switchboard
Catalog Number
System
Voltage, Vac Configuration
Surge
Current per
Mode, kA
ATVS0501LACSK
480Y/277
3Ø, 4W
50
ATVS0502LACSK
208Y/120
3Ø, 4W
50
ATVS0503LACSK
480 ∆
3Ø, 3W
50
ATVS0504LACSK
240/120 ∆
3Ø, 4W
50
ATVS0505LACSK
120/240
1Ø
50
ATVS0801LACSK
480Y/277
3Ø
80
ATVS0802LACSK
208Y/120
3Ø
80
ATVS0803LACSK
480 ∆
3Ø, 3W
80
ATVS0804LACSK
240/120 ∆
3Ø, 4W
80
ATVS0805LACSK
120/240
1Ø
80
ATVS1001LACSK
480Y/277
3Ø
100
ATVS1002LACSK
208Y/120
3Ø
100
ATVS1003LACSK
480 ∆
3Ø, 3W
100
ATVS1004LACSK
240/120 ∆
3Ø, 4W
100
ATVS1005LACSK
120/240
1Ø
100
ATVS3004WK
480Y/277
3Ø, 4W
100
ATVS3002WK
208Y/120
3Ø, 4W
100
ATVS3004DK
480 ∆
3Ø, 3W
100
ATVS2002DK
240/120
3Ø, 4W
100
ATVS3002SK
240/120
1Ø, 3W
100
Table 1. Catalog numbers and specifications for Tranquell transient-
voltage surge suppressor kits.
Installation
WARNING:
Danger of electrical shock or injury.
Turn
OFF power ahead of the panelboard or
switchboard before working inside the
equipment or removing any component
.
Equipment is to be installed and maintained by
properly trained and qualified personnel only.
The numbers in brackets in the text and circled in the
figures refer to the items in Tables 1 and 2.
1. Confirm the contents of the kit.
Figure 1 illustrates the
contents of the kit, with the parts listed in Table 2.
Figure 2 illustrates the hardware included in the kit
([2] in Table 2), with the parts listed in Table 3.

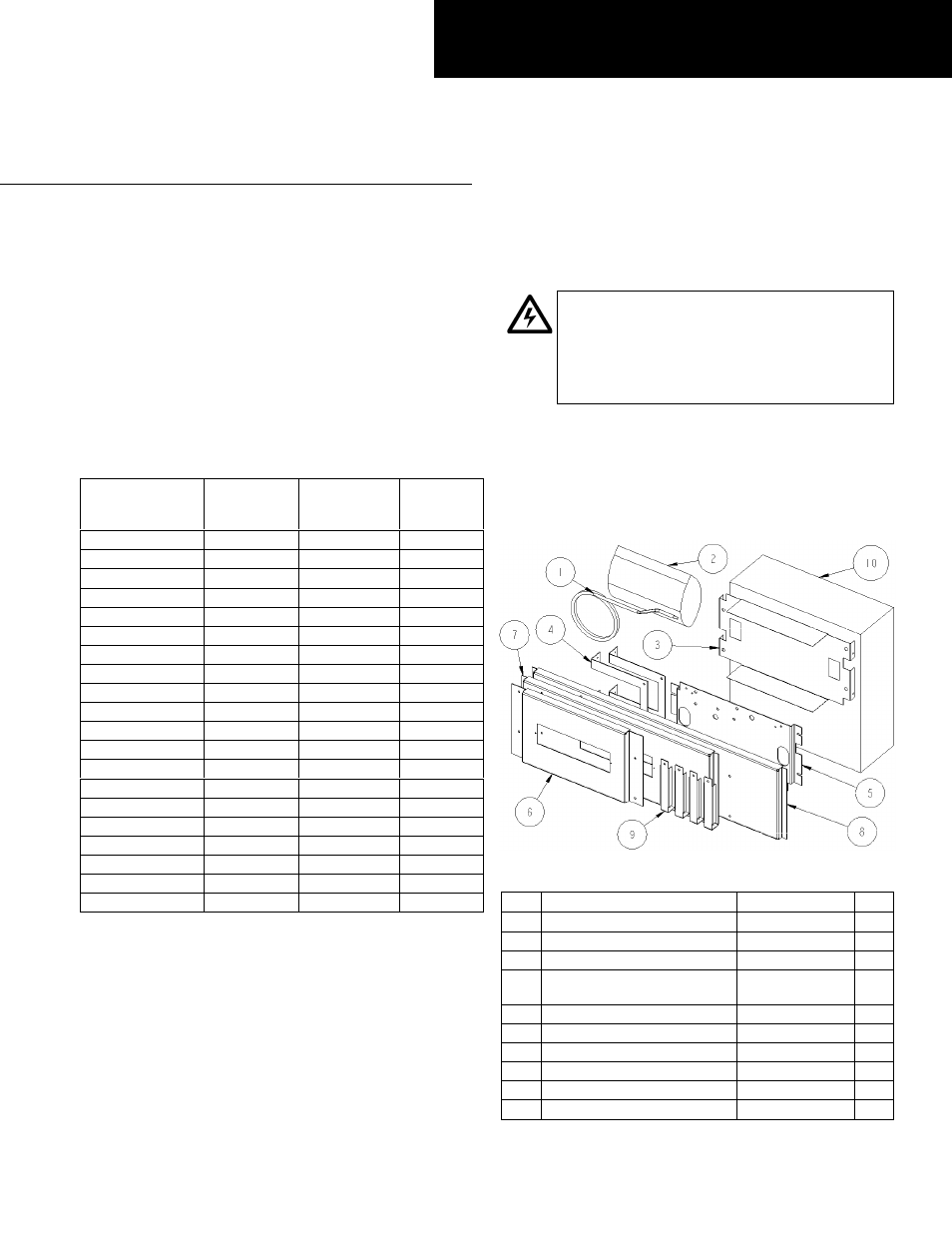

Figure 1. Typical TVSS kit contents.
Item Description
Part #
Qty.
1
Cable, #6 stranded
10080819P2
1
2
TVSS kit hardware
10082305G2
1
3
Barrier
10082331P1
1
4
Cover support for 36W,
40W, 44W, 45W
10083033P1
2
5
Mounting plate
208C4326P1
1
6
Cover for 27W, 31W, 35W
208C4331P1
1
7
Cover for 36W, 40W
208C4331P2
1
8
Cover for 44W, 45W
208C4331P3
1
9
Cover support for 27W, 31W
252B1477P4
4
10
TVSS in package
TVSS_UNIT
1
Table 2. Parts list for TVSS kit.
