GE Industrial Solutions EntelliGuard TU Conversion kits User Manual
Page 14
14
SECTION 5 Supplement to GEH-5967
For GE type AK-15, AK-25, AKU-25, AKR-30S, AKRU-30S Low Voltage Power Circuit
Breakers.
Following text is in addition to Section 3 of GEH5967

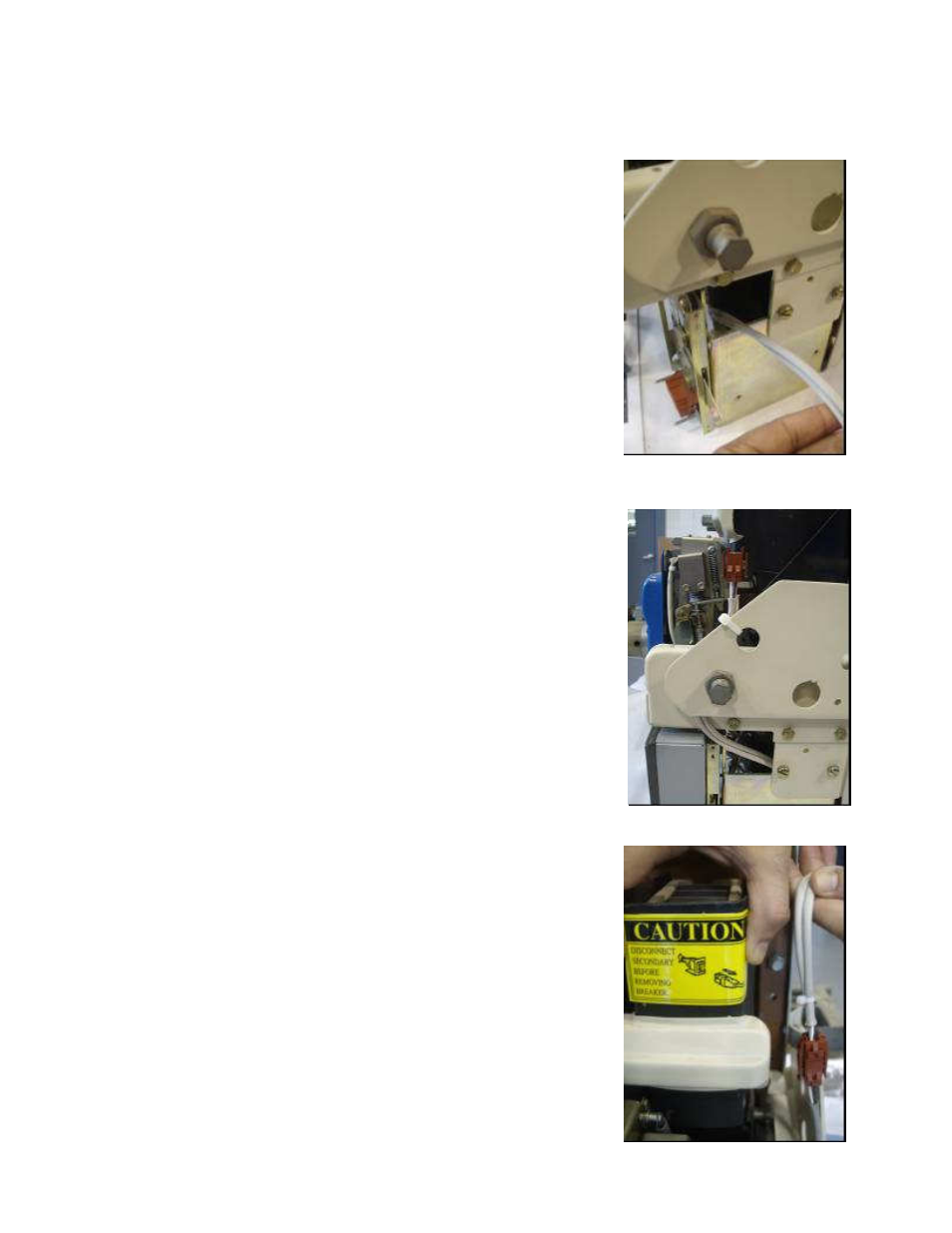

Routing the RELT wire harness
1. Route the RELT wire harness (set of 4 wires) from right of
trip unit mounting plate as shown in figure 20.
2. Secure the wires with wire tie and apply caution label
supplied with kit on both breaker frame & compartment
door.
3. Mount the new Entelliguard
TU on front frame.
4. The other wire harness supplied loose with kit shall be
connected to the RELT wire harness to signal the input or
output.
Figure 20
Figure 21
Figure 22
