SECTION 4 Supplement to GEH-5966
For GE type AKR-30, AKR-50, AKJ-50, AKRU-30, AKRU-50, SKR-30H, AKR-50H, AKRT-
50, AKRT-50H, AKJT-50, AKJT-50H Low Voltage Power Circuit Breakers.
Following text is in addition to Section 3 of GEH5966
Routing the RELT wire harness
1. Route the RELT wire harness (set of 4 wires) from left of
trip unit mounting plate, going around the breaker from
backside and ending at right side of frame. Same way as

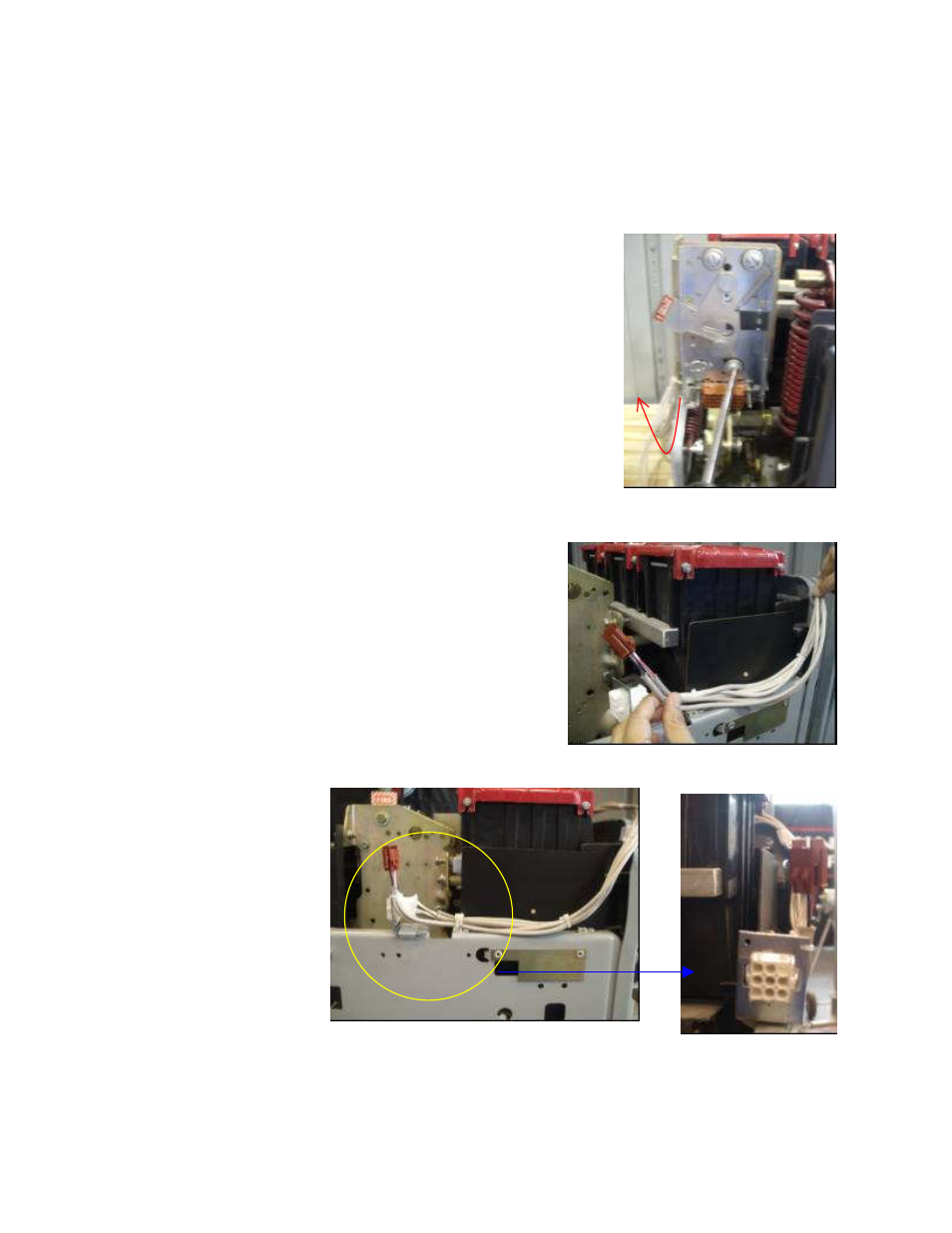

the “Communication wire harness is routed”, as shown in
figure 15 and 16.
2. Secure the wires with wire tie and apply caution label
supplied with kit on both breaker frame & compartment
door.
3. Mount the new Entelliguard  TU on front frame.
Figure 15
Figure 16
Figure 17
