Data Sheet
October 2, 2009

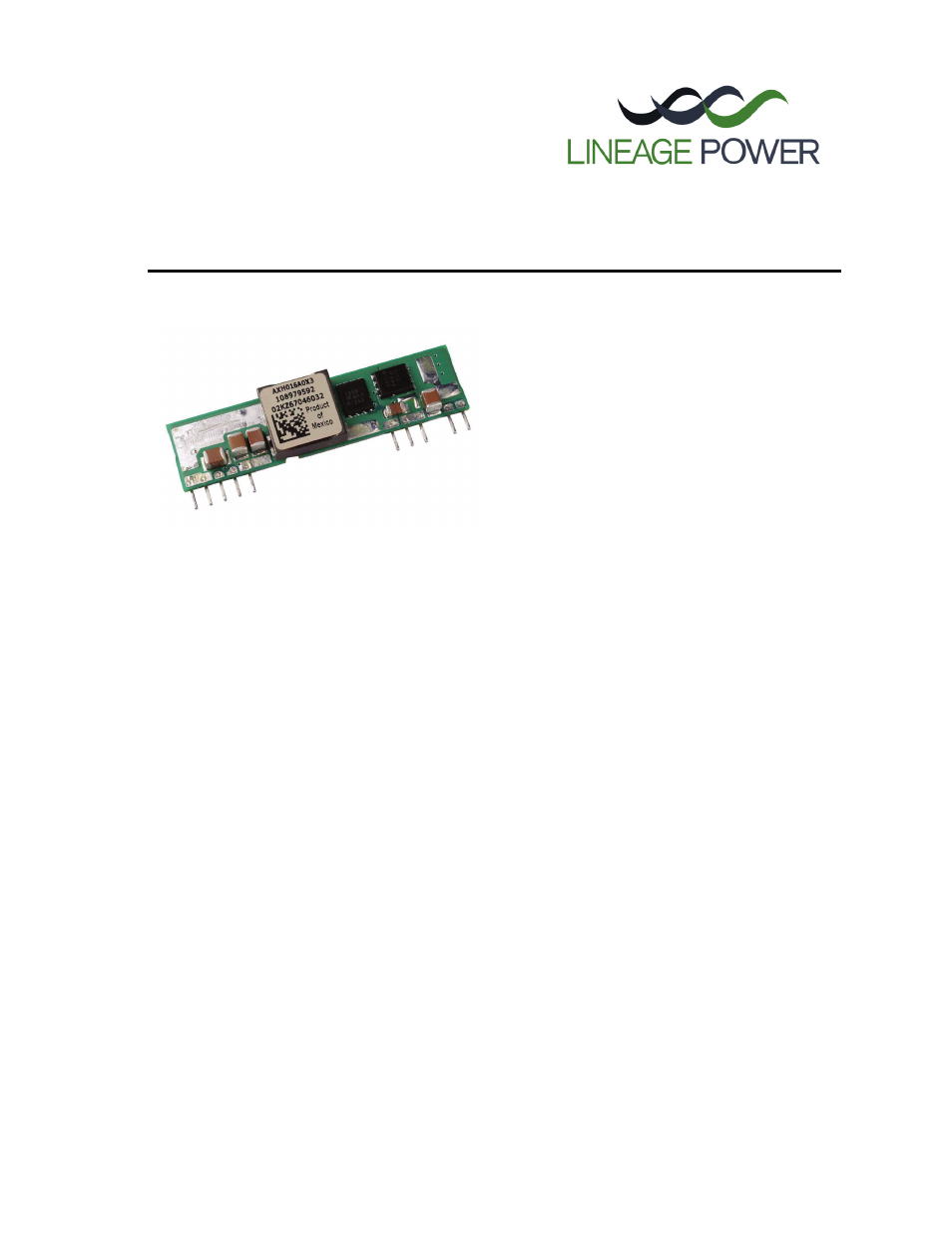

Austin SuperLynx TM SIP Non-isolated Power Modules:
3.0Vdc –5.5Vdc Input; 0.75Vdc to 3.63Vdc Output;16A Output Current
* UL is a registered trademark of Underwriters Laboratories, Inc.
† CSA is a registered trademark of Canadian Standards Association.
‡ VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
Document No: DS03-085 ver. 1.53
PDF name: austin-superlynx-sip-ds.pdf
Applications
ƒ Distributed power architectures
ƒ Intermediate bus voltage applications
ƒ Telecommunications equipment
ƒ Servers and storage applications
ƒ Networking equipment
ƒ Enterprise Networks
ƒ Latest generation IC’s (DSP, FPGA, ASIC) and
Microprocessor powered applications
Features
ƒ Compliant to RoHS EU Directive 2002/95/EC (-Z
versions)
ƒ Compliant to ROHS EU Directive 2002/95/EC
with lead solder exemption (non-Z versions)
ƒ Delivers up to 16A output current
ƒ High efficiency – 95% at 3.3V full load (V
IN
=
5.0V)
ƒ Small size and low profile:
50.8 mm x 12.7 mm x 8.10 mm
(2.00 in x 0.5 in x 0.32 in)
ƒ Low output ripple and noise
ƒ High Reliability:
Calculated MTBF > 6.8M hours at 25 o C Full-load
ƒ Constant switching frequency (300 kHz)
ƒ Output voltage programmable from 0.75 Vdc to
3.63Vdc via external resistor
ƒ Line Regulation: 0.3% (typical)
ƒ Load Regulation: 0.4% (typical)
ƒ Temperature Regulation: 0.4 % (typical)
ƒ Remote On/Off
ƒ Remote Sense
ƒ Output overcurrent protection (non-latching)
ƒ Wide operating temperature range (-40°C to
85°C)
ƒ UL* 60950-1Recognized, CSA † C22.2 No.
60950-1-03 Certified, and VDE ‡ 0805:2001-12
(EN60950-1) Licensed
ƒ ISO** 9001 and ISO 14001 certified
manufacturing facilities
Description
Austin SuperLynx TM SIP (Single In-line package) power modules are non-isolated dc-dc converters that can deliver
up to 16A of output current with full load efficiency of 95.0% at 3.3V output. These modules provide a precisely
regulated output voltage programmable via external resistor from 0.75Vdc to 3.63Vdc over a wide range of input
voltage (V
IN
= 3.0 – 5.5Vdc). The open-frame construction and small footprint enable designers to develop cost-
and space-efficient solutions. Standard features include remote On/Off, remote sense, programmable output
voltage, overcurrent and overtemperature protection.
RoHS Compliant
