GE Industrial Solutions ESTW025A0F Series - Manual

Data Sheet
October 11, 2011

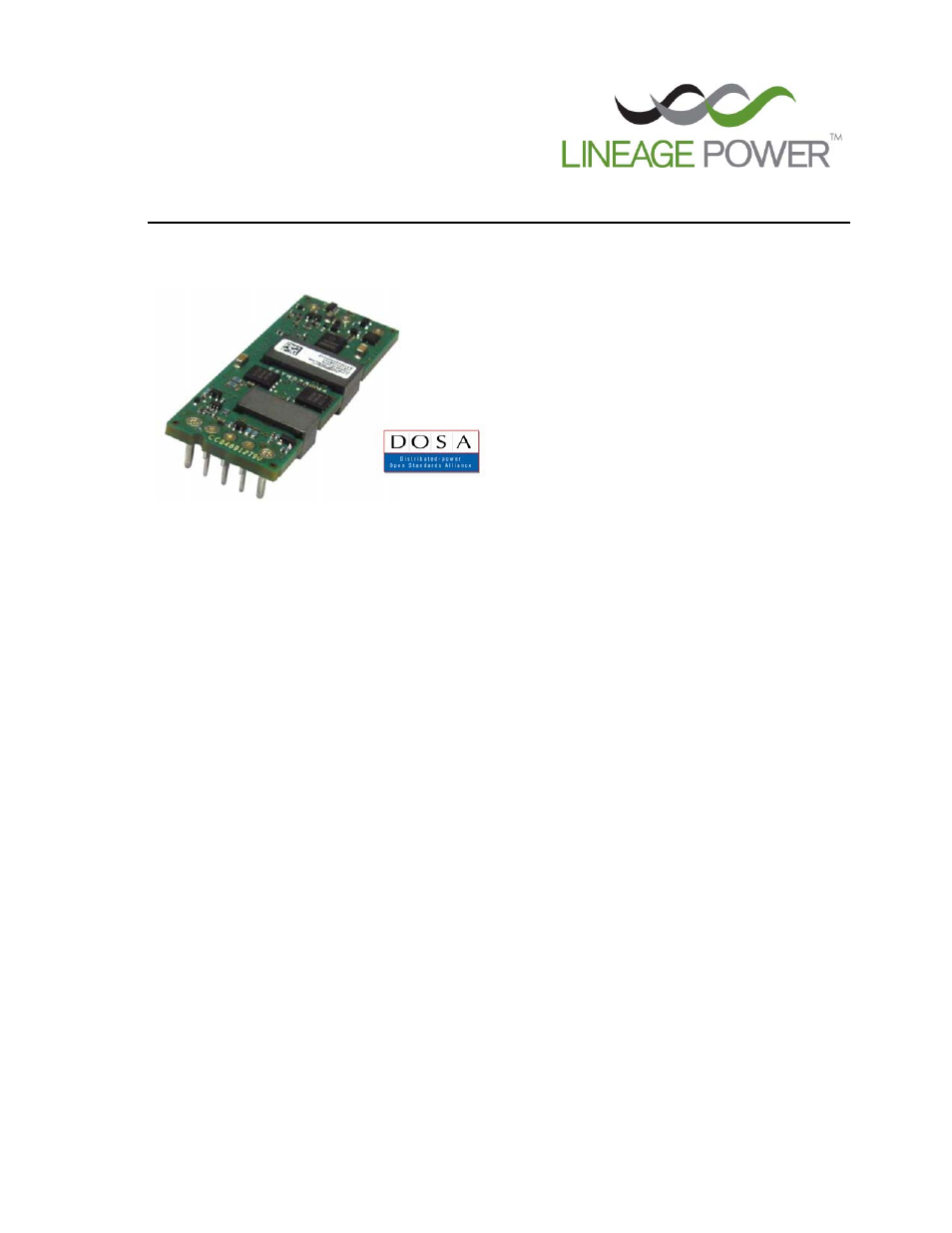

ESTW025A0F Series (Eighth-Brick) DC-DC Converter Power Modules
36–75Vdc Input; 3.3Vdc Output; 25A Output Current
* UL is a registered trademark of Underwriters Laboratories, Inc.
†
CSA is a registered trademark of Canadian Standards Association.
‡
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
§ This product is intended for integration into end-user equipment . All of the required procedures of end-use equipment should be followed.
¤ IEEE and 802 are registered trademarks of the Institute of Electrical and Electronics Engineers, Incorporated.
** ISO is a registered trademark of the International Organization of Standards
Document No: DS09-013 ver.1.01
PDF name: ESTW025A0F.pdf
STINGRAY™ SERIES Features
 Wide input voltage range: 36-75 V
dc
 Delivers up to 25A Output current
 Monotonic startup into prebiased load
 Output Voltage adjust: 80% to 110% of V
o,nom
 Remote sense
 Constant switching frequency
 Positive remote On/Off logic
 Input under voltage protection
 Output overcurrent and overvoltage protection
 Over-temperature protection
 Industry standard, DOSA compliant footprint
57.9mm x 22.8mm x 8.5mm
(2.28 in x 0.9 in x 0.335 in)
 Low profile height and reduced component skyline
 Suitable for cold wall cooling using suitable Gap
Pad applied directly to top side of module
 High efficiency 92% at full load (Vin=48V
dc
)
 No thermal derating up to 68°C, 1.0m/s (200 LFM)
 Wide operating temperature range (-40°C to 85°C)
 Compliant to RoHS EU Directive 2002/95/EC (-Z
versions)
 Compliant to ROHS EU Directive 2002/95/EC with
lead solder exemption (non-Z versions)
 UL * 60950-1, 2 nd Ed. Recognized, CSA † C22.2 No.
60950-1-07 Certified, and VDE ‡ (EN60950-1, 2 nd
Ed.) Licensed
 CE mark meets 2006/95/EC directive §
 Meets the voltage and current requirements for
ETSI 300-132-2 and complies with and licensed for
Basic insulation rating per EN60950-1
 2250 V
dc
Isolation tested in compliance with IEEE
802.3 ¤ PoE standards
 ISO ** 9001 and ISO 14001 certified manufacturing
facilities
Applications
 Distributed power architectures
 Wireless networks
 Access and optical network Equipment
 Enterprise Networks including Power over Ethernet
(PoE)
 Latest generation IC’s (DSP, FPGA, ASIC) and
Microprocessor powered applications
Options
 Negative Remote On/Off logic (-1 option,
preferred/standard)
 Surface Mount version (-S option)
 Auto-restart (-4 option, preferred/standard)
 Trimmed leads (-6 or -8 options)
Description
The ESTW025A0F series, Eighth-brick power modules are isolated dc-dc converters that can deliver up to 25A of output
current and provide a precisely regulated output voltage over a wide range of input voltages (Vin = 36 -75V
dc
). The
module achieves typical full load efficiency of 92% at 3.3V
dc
output voltage. The open frame modules construction, available
in both surface-mount and through-hole packaging, enable designers to develop cost- and space-efficient solutions.
RoHS Compliant
