GE Industrial Solutions AKD-5, AKD-6, and AKD-8 User Manual
Page 23
22
Retrofill Doors Assemblies for AKD-5, AKD-6, and AKD-8
DEH-41563 02/12

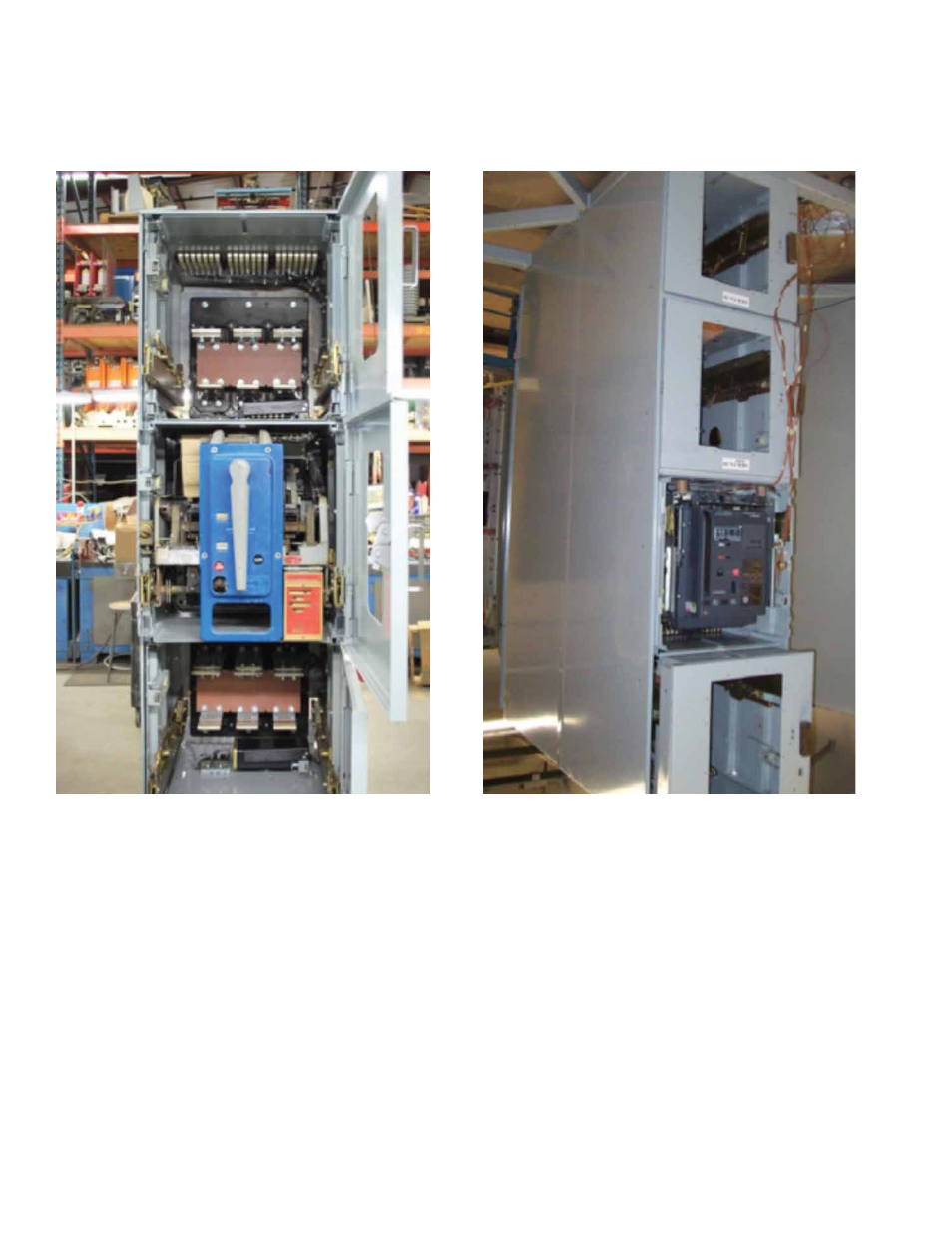

Figure 17
shows a legacy breaker in the cabinet with the old doors still attached.
Figure 18
shows the retrofill breaker,
racked in a compartment, waiting for a retrofill door to be installed. The other three compartment doors have the
retrofill doors already, but no retrofill breakers yet.
Figure 18. AKR with New Door
Figure 17. Legacy AK with Old Door
