Lineage Power 7
Data Sheet
March 2008 75 Vdc Input Maximum, 10 A Maximum
FLTR100V10 Filter Module
Application
(continued)
8-1362a
Note: C1 through C4 and C6 through C9 can be 0.01 µF to 0.1 µF. Select the voltage rating to meet input-to-output isolation requirements.
C5 should be the recommended value indicated in the power module data sheet.

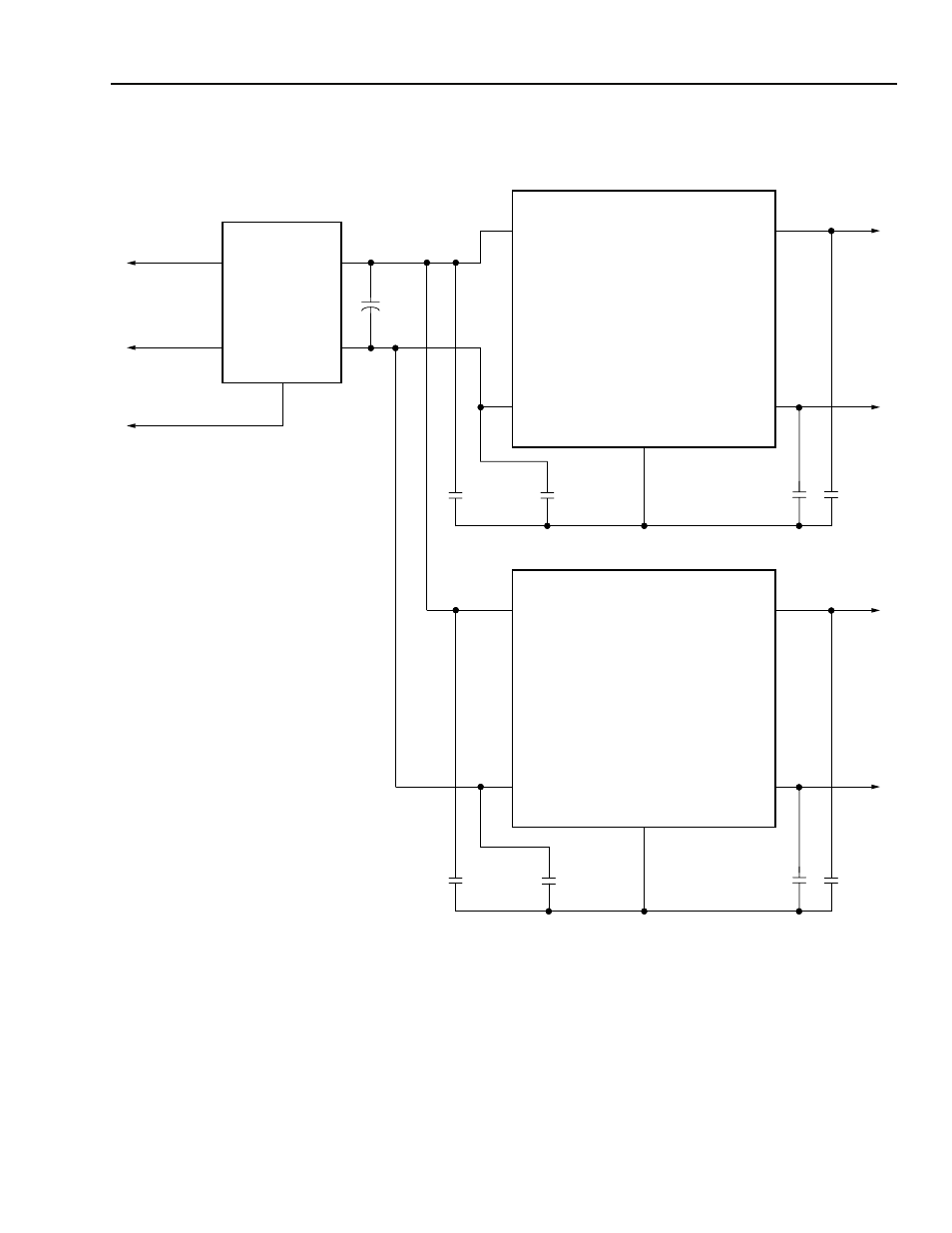

Figure 8. Recommended Schematic of Filter Module with Two Power Modules
C1
V I (+)
V I (-)
V O (+)
V O (-)
GND
FILTER
MODULE
C2
C5
V I1 (-)
V I1 (+)
CASE 1
V O1 (-)
V O1 (+)
C3 C4
POWER MODULE 1
SHIELD PLANE
Vdc INPUT(+)
Vdc INPUT(-)
CHASSIS GROUND
C6
V I2 (-)
V I2 (+)
CASE 2
V O2 (-)
V O2 (+)
C8 C9
POWER MODULE 2
C7
SHIELD PLANE
