4 Lineage Power
Data Sheet
March 2008 75 Vdc Input Maximum, 10 A Maximum
FLTR100V10 Filter Module
Characteristics
(continued)
8-1327b

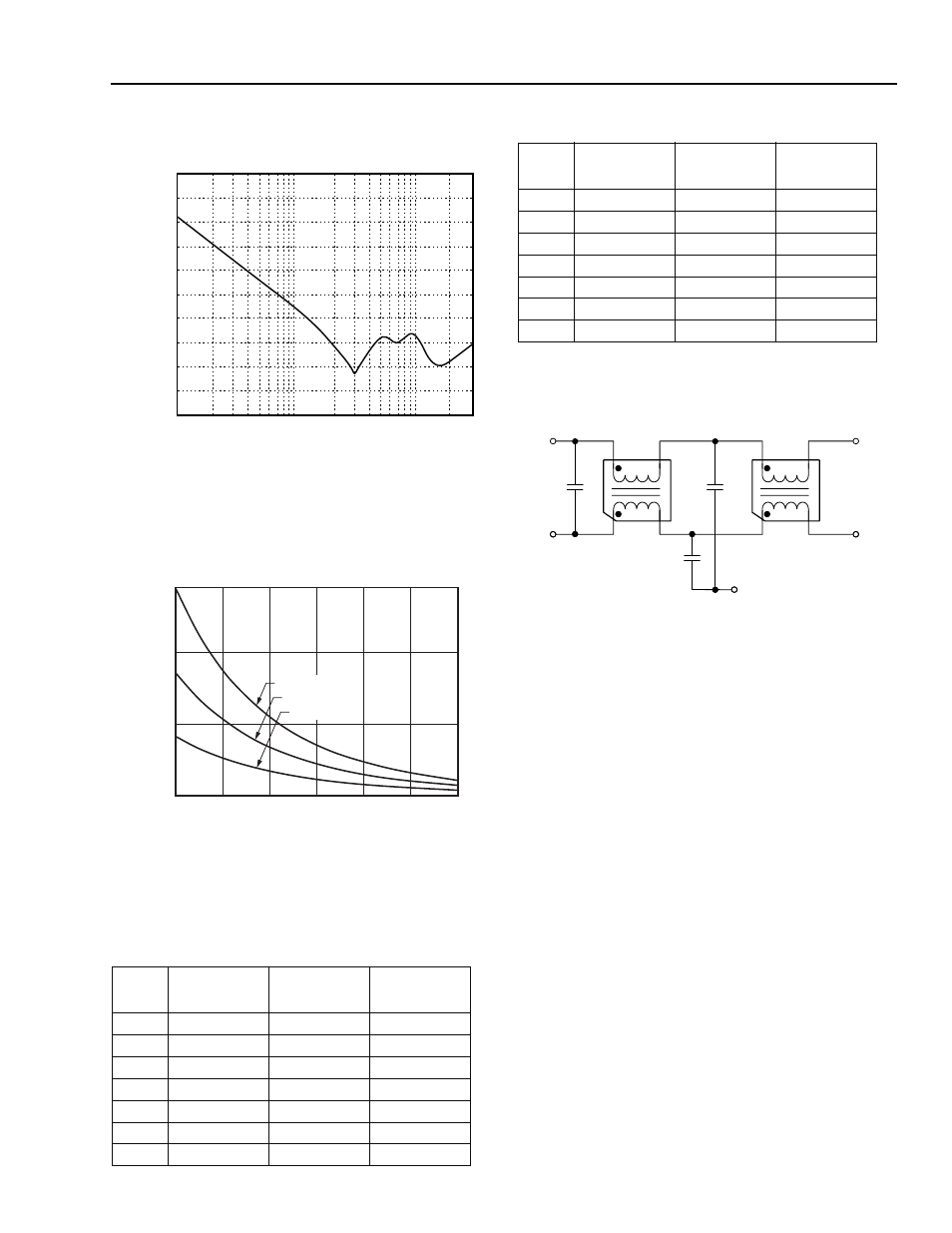

Figure 3. Typical Differential-Mode Insertion Loss
in a 50 Ω Circuit
1-0324
Figure 4. MTBF vs Ambient temperature for 6A, 8A,
and 10A Input Current
Table 1: MTBF in Hours:
Table 2: Failure Rate in FITs:
Internal Schematics
8-1324b
Figure 5. Internal Schematic
amp
temp
10A 8A 6A
20 4.124•10 7 8.563•10 7 1.451•10 8
30 2.615•10 7 5.284•10 7 8.781•10 7
40 1.707•10 7 3.363•10 7 5.486•10 7
50 1.144•10 7 2.201•10 7 3.529•10 7
60 7.854•10 6 1.478•10 7 2.331•10 7
70 5.511•10 6 1.015•10 7 1.577•10 7
80 3.946•10 6 7.127•10 6 1.091•10 7
0
-40
-100
0.1 10
FREQUENCY (MHz)
1.0
-80
-20
-60
DIFFERENTIAL-MODE INSER
TION LOSS (dB)
AMBIENT TEMPERATURE (˚C)
MTBF (T)
20 30 40 60 50 80 70
1•10
8
5•10
7
I I = 6 A
I I = 8 A
I I = 10 A
amb
temp
10A 8 6A
20 24.248 11.679 6.89
30 38.244 18.925 11.388
40 58.588 29.736 18.227
50 87.415 45.433 28.336
60 127.327 67.671 42.899
70 181.441 98.481 63.394
80 253.416 140.302 91.632
IN
GND
OUT
