PowerVac ® 5kV Vertical Lift
Chapter 6. Control Circuit
Figures 20 and 21 show typical wiring diagrams
for PowerVac
® VL breakers.
Replacement breakers for old units with sole-
noid mechanisms (AM breakers with MS type
mechanisms) are typically wired per the draw-
ing in Figure 20.

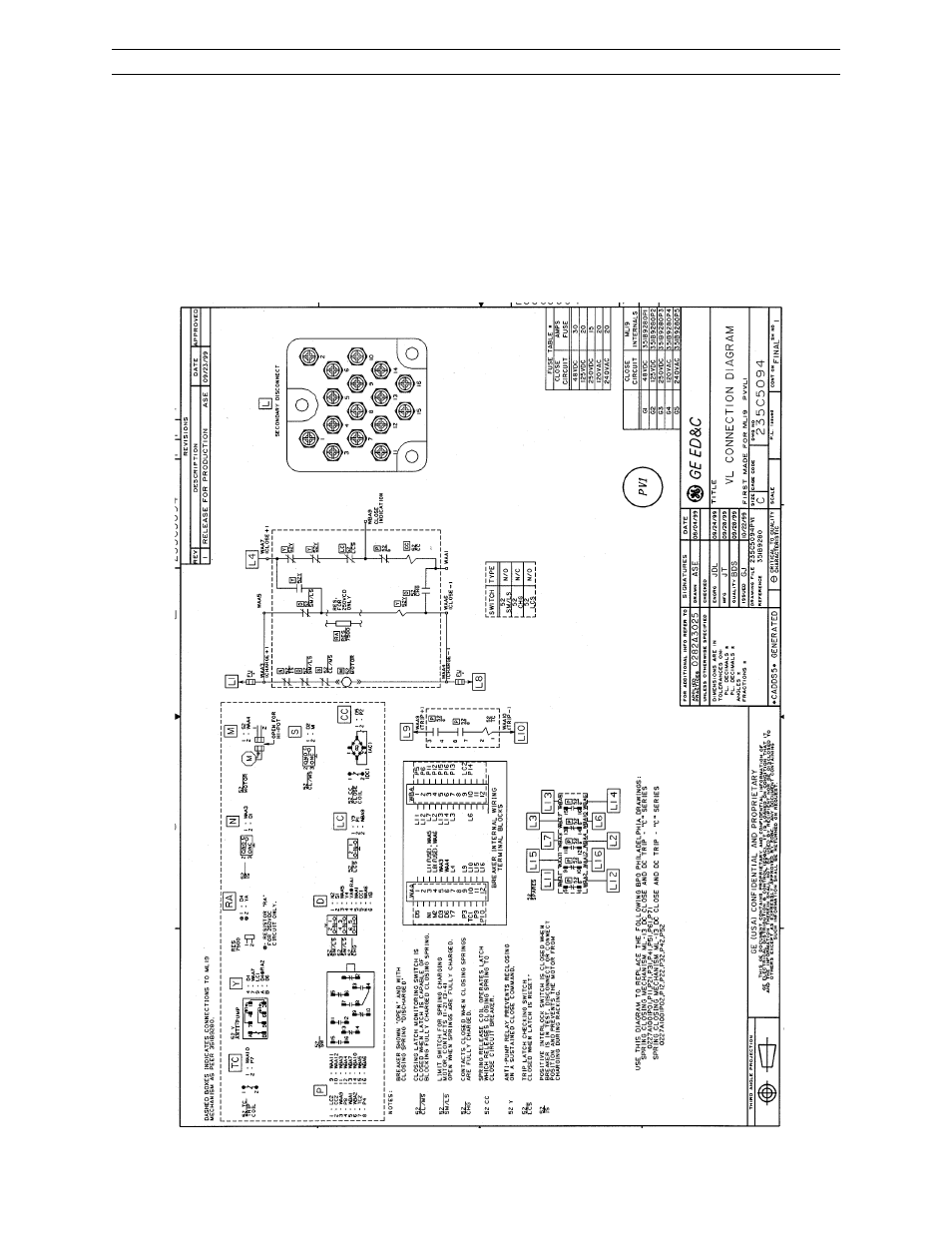

Figure 20. Typical breaker wiring diagram
(Replacement for breakers with MS mechanisms)
Replacement breakers for old units with stored
energy mechanisms (AM breakers with ML type
mechanisms) are typically wired per the draw-
ing in Figure 21.
The wiring on your breakers may be different.
Consult your nameplate for the correct drawing
number and call your local GE office when ad-
ditional copies of this drawing are required.
