Packaging Details
The surface mount versions of the EVW020A0A (suffix
–S) are supplied as standard in the plastic trays shown
in Figure 26.
Tray Specification
Material Antistatic coated PVC
Max surface resistivity 10 12 /sq
Color Clear
Capacity 12 power modules
Each tray contains a total of 12 power modules. The
trays are self-stacking and each shipping box for the
EVW020A0A (suffix –S) surface mount module will
contain 4 full trays plus one empty hold down tray
giving a total number of 48 power modules.

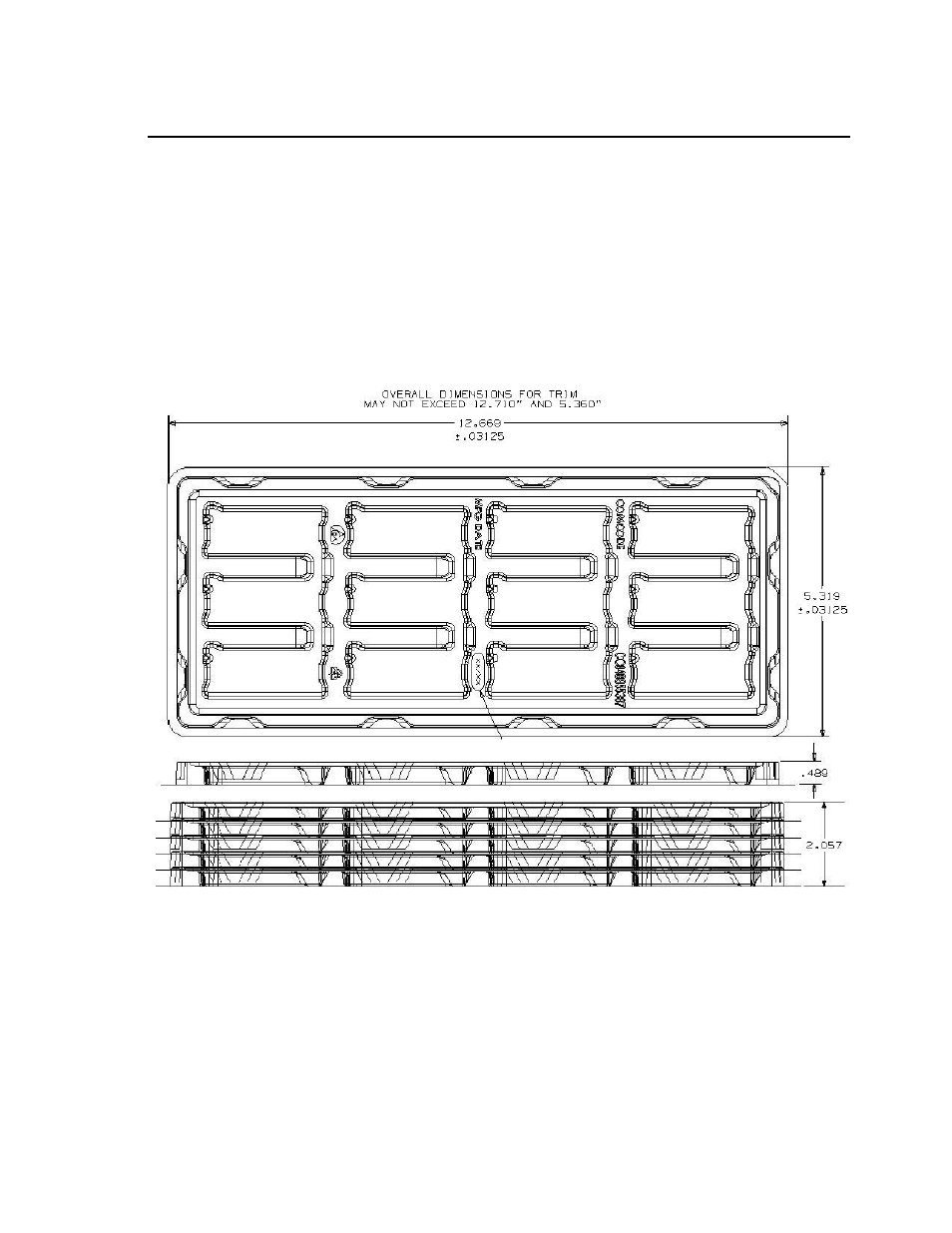

Figure 26. Surface Mount Packaging Tray
