AKD-8—Remove Glastic Sheet

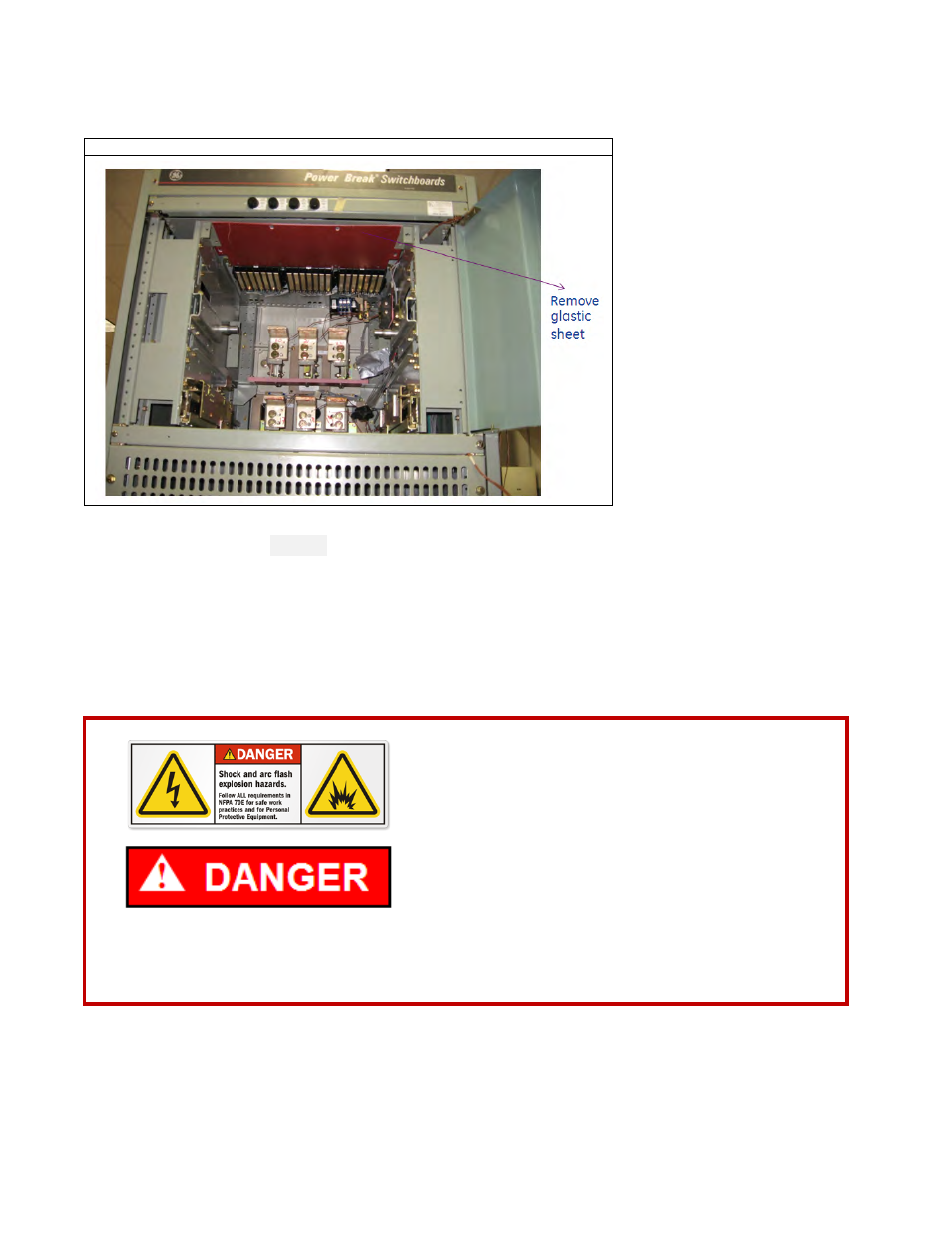

Figure 8. Remove Glastic Sheet
The AKD-8 AKR30S switchgear compartments (22" by 30" by 38") need this particular attention. The glastic
sheet has to be removed (
Figure 8 ).
In some cases, however, it is possible that this sheet is not secured to the top of the cabinet properly, and
was found to sag around the middle of the cabinet. This could lead to the sheet interfering with secondary
disconnects. Removing the glastic sheet does not require any tools, but you need to exercise the caution
while removing the glastic sheet to avoid contact with compartment mounted secondary disconnects. After
removing the glastic sheet, discard it.
AKD-8—Modify Bracket
• It must be ensured that the supply power to
the compartment is turned off/
compartment is de-energized for all the
incoming and outgoing circuits of the LVS
prior to any work being conducted on it.
•
During the installation and related work on
the equipment, it must be ensured that the
operator is using the prescribed PPE for the
specified tasks.
• Ensure only qualified personnel install, operate, service, and maintain all electrical
equipment.
