GE Industrial Solutions EVW010A0B Series (Eighth-Brick) User Manual
Rohs compliant, Features, Applications

Data Sheet
September 4, 2013

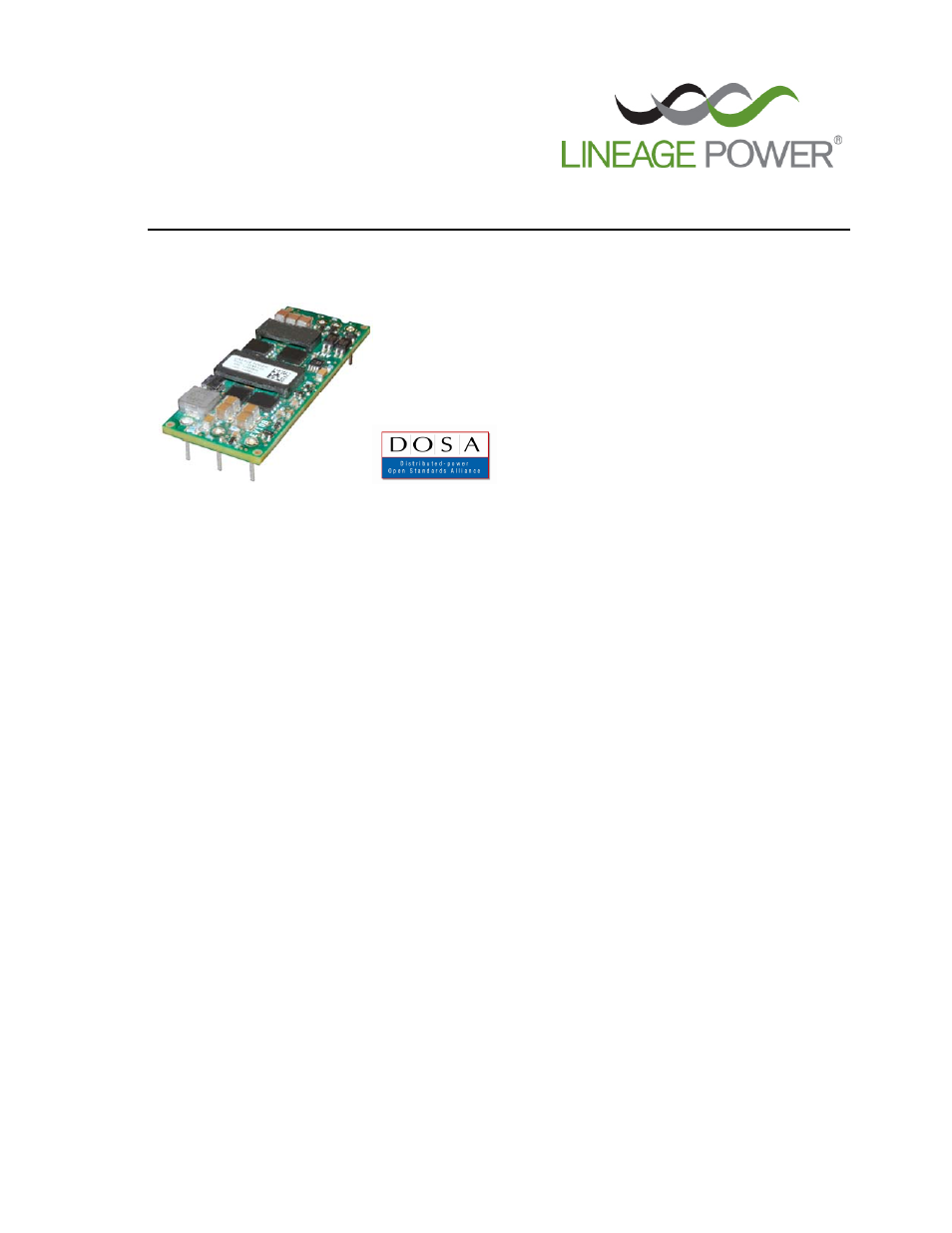

EVW010A0B Series (Eighth-Brick) DC-DC Converter Power Modules
36–75Vdc Input; 12.0Vdc Output; 10A Output Current
*
UL
is a registered trademark of Underwriters Laboratories, Inc.
†
CSA
is a registered trademark of Canadian Standards Association.
‡
VDE
is a trademark of Verband Deutscher Elektrotechniker e.V.
§
This product is intended for integration into end-user equipment . All of the required procedures of end-use equipment should be
followed.
¤ IEEE and 802 are registered trademarks of the Institute of Electrical and Electronics Engineers, Incorporated.
** ISO is a registered trademark of the International Organization of Standards
Document No: DS09-006 ver. 1.2
PDF name: evw010_ds.pdf
Features
Compliant to RoHS EU Directive 2002/95/EC
Compatible in a Pb-free or SnPb reflow
environment
High efficiency – 93.5% at 12V full load
Industry standard, DOSA compliant, Eighth brick
footprint
57.9mm x 22.9mm x 7.8mm
(2.28in x 0.90in x 0.31in)
Wide Input voltage range: 36-75 Vdc
Tightly regulated output
Constant switching frequency
Positive Remote On/Off logic
Input under/over voltage protection
Output overcurrent/voltage protection
Over-temperature protection
Remote sense
No minimum load required
No reverse current during output shutdown
Output Voltage adjust: 80% to 110% of V
o,nom
Operating temperature range (-40°C to
85°C)
UL
* 60950-1Recognized, CSA
†
C22.2 No.
60950-1-03 Certified, and VDE
‡
0805:2001-12
(EN60950-1) Licensed
CE mark meets 73/23/EEC and 96/68/EEC
directives
§
Meets the voltage and current requirements for
ETSI 300-132-2 and complies with and licensed
for Basic insulation rating per EN60950-1
2250 Vdc Isolation tested in compliance with
IEEE 802.3
¤
PoE standards
ISO
**
9001 and ISO 14001 certified
manufacturing facilities
Applications
Distributed Power Architectures
Wireless Networks
Access and Optical Network Equipment
Enterprise Networks including Power over Ethernet
(PoE)
Options
Negative Remote On/Off logic
Over current/Over temperature/Over voltage
protections (Auto-restart)
Heat plate versions (-H)
Surface Mount version (-S)
Description
The EVW010A0B, Eighth-brick low-height power module is an isolated dc-dc converters that can deliver up to 10A of
output current and provide a precisely regulated output voltage of 12V over a wide range of input voltages (V
IN
= 36 -
75Vdc). The modules achieve typical full load efficiency of 93.5%. The open frame modules construction, available in
both surface-mount and through-hole packaging, enable designers to develop cost and space efficient solutions.
Standard features include remote On/Off, remote sense, output voltage adjustment, overvoltage, overcurrent and
overtemperature protection.
RoHS Compliant
