3.3 INSTALLATION PREPARATIONS
The UPS can be used in a stand-alone tower format using the two supporting stands (section 3.3.1), or can be mounted in
a 19 inch rack using the two mounting brackets (section 3.3.2). All required items are included in the delivery.
3.3.1 Vertical installation - preparations
NOTE
Please consider the weight of the UPS. Lift the unit with the help of a second person.
1.
Place the UPS horizontally on a table or desk.
2.
Assemble the four parts of the plastic supports at the
bottom-side of the UPS cabinet, using the 4 screws
provided.
3.
Connect the DC connector of the internal batteries. Battery
block is 36V/72V and 7Ah/9Ah
As follows
2kVA - 6 x 9Ah, 72 V
1.5kVA - 6 x 7Ah, 72 V
1kVA - 3 x 9Ah, 36 V
700VA - 3 x 7Ah, 36 V
4.
Assemble the front panel: insert the two metal clamps at the
rear of the panel into the holes at the upper side of the UPS,
then click the front panel into position.
Fix the front panel with the screw provided.
5.
Place the UPS upright, and insert the two black plastic plugs
to cover the holes in the top panel of the UPS cabinet.
The VH Series UPS is now ready for further connections: proceed
with section 3.4.

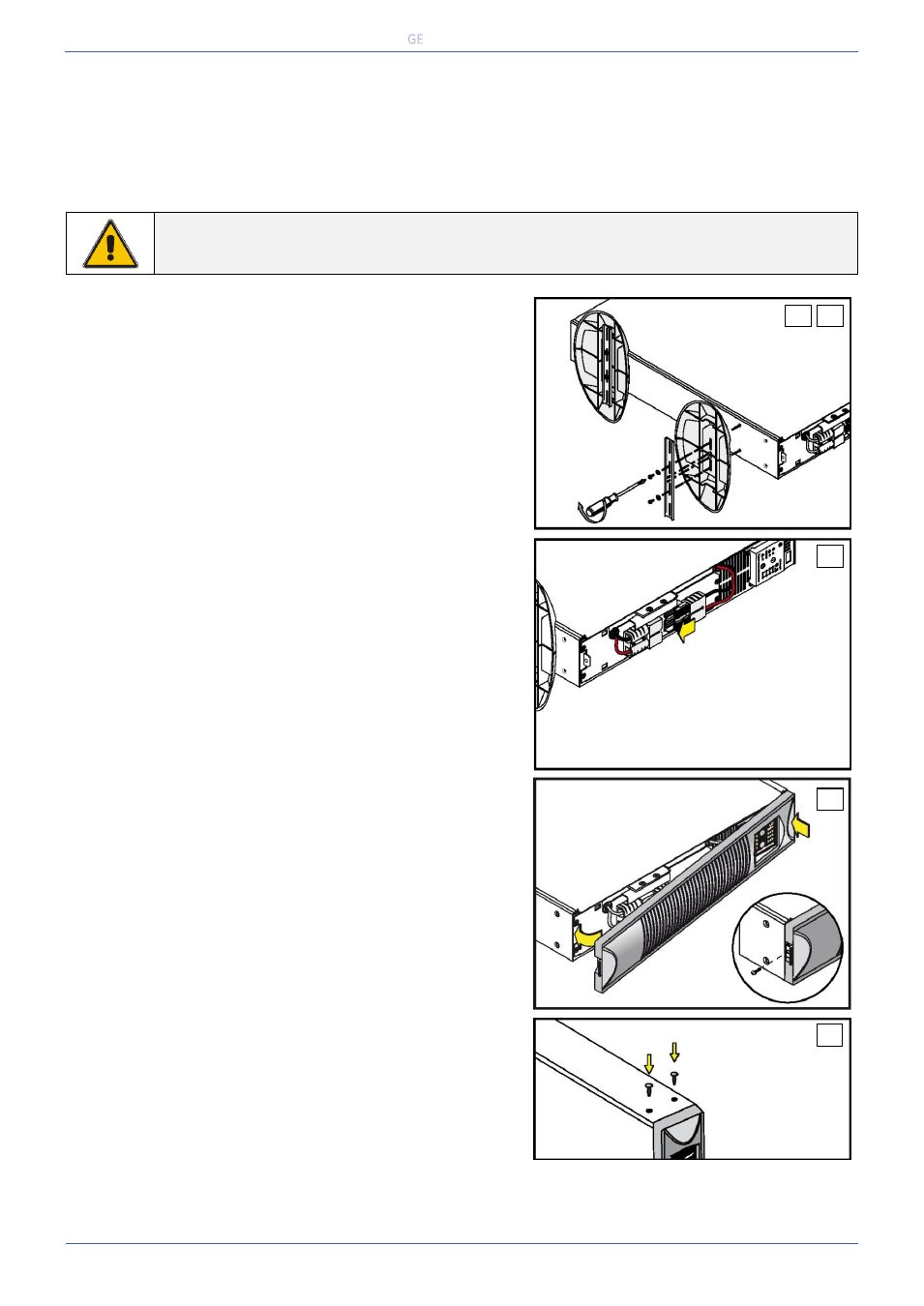

Fig. 3.3.1: Installation preparations - tower
2 1
3
4
5
