3.4 REAR PANEL
The figures on this page show a VH Series 2000 VA (fig. 3.4.a)
and a VH Series 1000 VA (fig. 3.4.b). The differences with the
rear panel - configuration of other models is clearly
indicated in the text below.
1 Input socket – max. rating 20A
AC mains supply to the UPS
IEC-C14 in 700-1000VA
IEC-C20 in 1500-2000VA
2 Input thermal circuit breaker
Protects the UPS from damage caused by high input
currents
3 Appliance outlets - max. rating 20A
To connect the loads to the UPS.
Type: NEMA 5-20R
700 VA: 4 outlets
1000-2000 VA: 6 outlets
3a Appliance outlet : max. rating 20A
Type: NEMA L5-20R
2000 VA: 1outlet
4 DC connector (not on VH Series 700 VA)
To connect a battery extension pack for extended
battery runtime
5 Fan(s)
Electronically controlled cooling fan(s). Make sure
ventilation air can move freely around and through
the UPS.
6 USB port
See 5.1 for more information
7 RJ11 port
8 REPO (Remote External Power OFF)
See 5.2 for more information

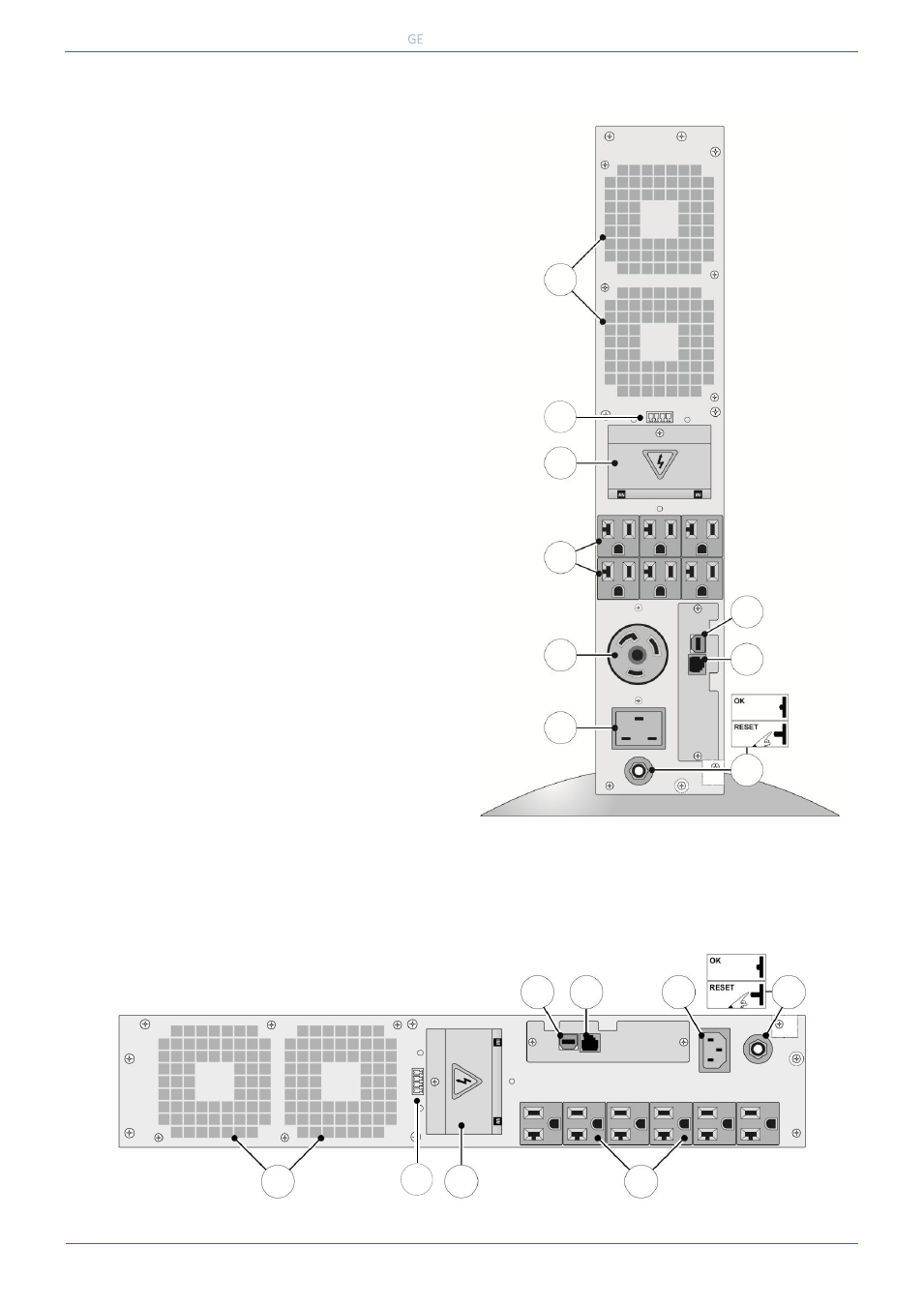

Fig. 3.4.a: Rear panel VH Series 2000 VA - tower
Fig. 3.4.b: Rear panel VH Series 1000 VA – rack mount
5
3
1
2
7
6
4
3a
1
3 4 5
6 2 7
8
8
