Page 8: Ordering information

GE
CAR1248TN series rectifier
Input: 90Vac to 264Vac; Output: -54Vdc @ 1200W
Contact Us
For more information, call us at
USA/Canada:
+1 888 546 3243
, or +1 972 244 9288
Asia-Pacific:
+86.021.54279977*808
Europe, Middle-East and Africa:
+49.89.878067-280
India:
+91.80.28411633
www.ge.com/powerelectronics
November 20, 2012
©2012 General Electric Company. All rights reserved.
Page 8

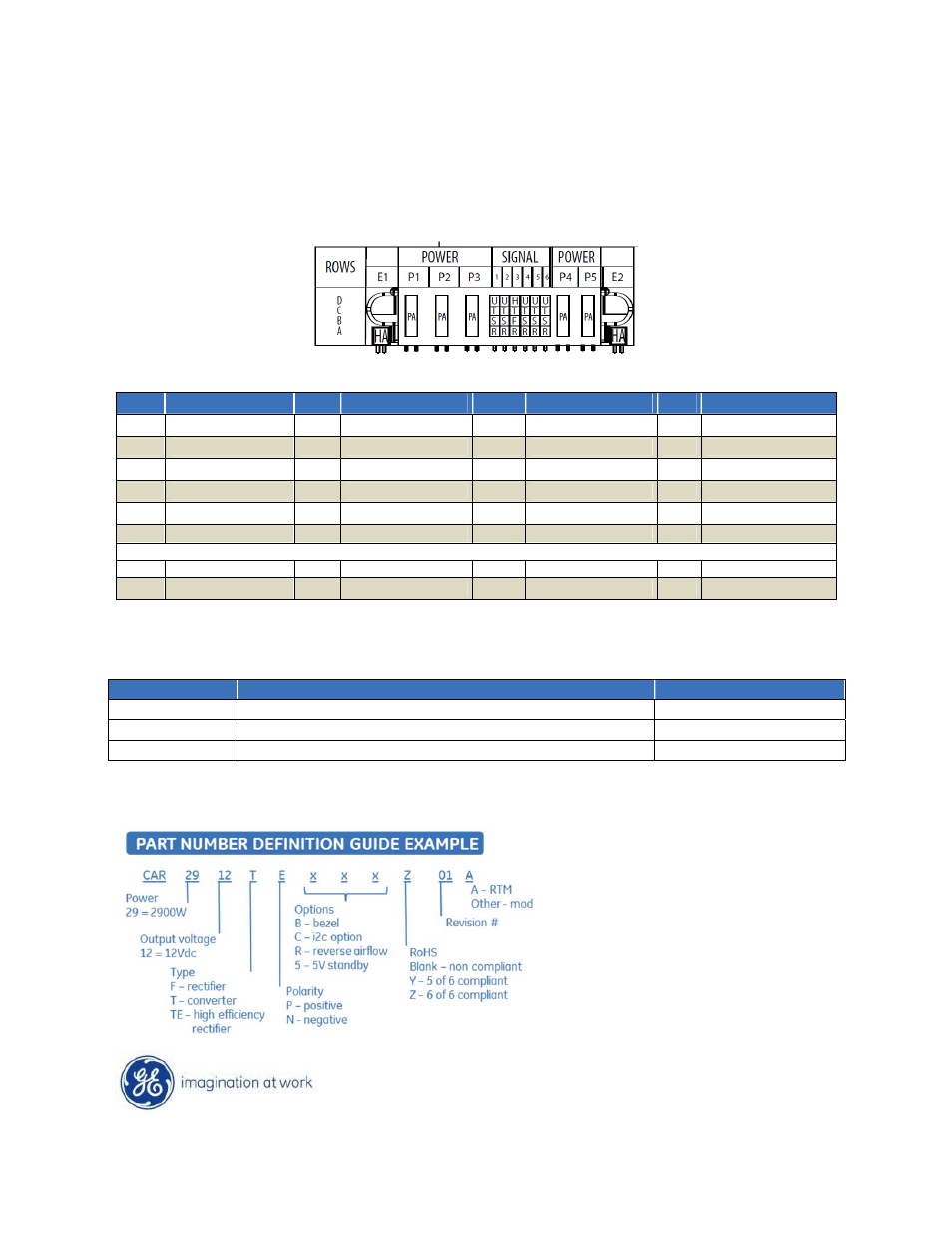

Connector
FCI Berg P/N: 51939-070
Mating connector: FCI Berg P/N: 51915-050
Pin
Function
Pin
Function
Pin
Function
Pin
Function
A1 n/c
B1 Fault C1
ISHARE
D1 VProg
A2
n/c
B2
I Monitor (IMON)
C2
N/C
D2
OVP Test Point
A3
Signal Return
B3
Enable: “0” –ON “1” -OFF
C3
Over Temp Warning
D3
Remote ON/OFF
A4
Write Protect (WP)
B4
PS Present
C4
I
2
C Address (A0)
D4
DC OK
A5
Remote Sense (+)
B5
SDA (I
2
C bus)
C5
I
2
C Address (A1)
D5
AC OK
A6
Remote Sense (-)
B6
SCL (I
2
C bus)
C6
I
2
C Address (A2)
D6
Interrupt
P1 Line P2
Neutral P3 Chassis
P4
+Vout
P5
Output Return
Ordering Information
Please contact your GE Energy Sales Representative for pricing, availability and optional features.
PRODUCT
DESCRIPTION
PART NUMBER
1200W Front-End
-54Vout Front-End
CAR1248TNXXXZ01A
1200W Front-End
-54Vout Front-End, w/bezel
CAR1248TNBXXZ01A
1200W Front-End
-54Vout Front-End, w/bezel, i2c communications
CAR1248TNBCXZ01A
