Apollo Software Manual
Chapter 7: Multi-Unit Cascading
102
Multi-Unit Wiring Diagrams
Note: For maximum signal integrity, short cables (e.g., one to three feet in length) are
recommended for all inter-unit connections in all multi-unit setups.
Multi-Unit Wiring (Apollo)
FireWire 800 Host Connection
Cables Required:
• One FireWire 800 cable for connecting to the host computer
• One FireWire 800 Cable for connecting between the two interfaces
• One ADAT optical cable for connecting between the two interfaces*
* At sample rates of 88.2 kHz and 96 kHz, two ADAT optical cables are required
Key points for this setup:
• The lower Apollo is designated as the Monitor (master) unit
• The upper Apollo is designated the as the Expander (slave) unit
• The Monitor unit is connected to the host computer via FireWire 800
(either Apollo FireWire 800 port can be used for this connection)
• The Expander unit is not connected to the host computer
• One FireWire 800 cable must be connected between the Expander and Monitor units
(either Apollo FireWire 800 port can be used for this connection)
• One ADAT optical cable must be connected from the ADAT OUT (1) of the
Expander unit to the ADAT IN (1) of the Monitor unit*
* At sample rates of 88.2 kHz and 96 kHz, a second ADAT optical must also be connected from
the ADAT OUT (2) of the Expander unit to the ADAT IN (2) of the Monitor unit
• Monitor, headphone, and auxiliary outputs are connected to the Monitor unit only
• Power on the monitor unit before the expander unit
LINE INPUT
MICROPHONE INPUT
LINE OUTPUT
MONITOR
ADAT S/MUX
POWER
1
3
5
7
2
4
6
8
1
3
5
7
2
4
6
8
1
L
R
2
PUSH
PUSH
PUSH
PUSH
1
2
3
4
S/PDIF
FIREWIRE
IN
OUT
1394 800 (2) 1394 800 (1)
WORD
CLOCK
WORD
CLOCK
IN
WORD CLOCK
OUT
75 OHM
TERM
IN
OUT
OUT (1)
OUT (2)
IN (1)
IN (2)
UNIVERSAL AUDIO, INC.
LINE INPUT
MICROPHONE INPUT
LINE OUTPUT
MONITOR
ADAT S/MUX
POWER
1
3
5
7
2
4
6
8
1
3
5
7
2
4
6
8
1
L
R
2
PUSH
PUSH
PUSH
PUSH
1
2
3
4
S/PDIF
FIREWIRE
IN
OUT
1394 800 (2) 1394 800 (1)
WORD
CLOCK
WORD
CLOCK
IN
WORD CLOCK
OUT
75 OHM
TERM
IN
OUT
OUT (1)
OUT (2)
IN (1)
IN (2)
UNIVERSAL AUDIO, INC.
Expander Unit
Monitor Unit
FireWire 800
Computer
Connect speakers
and headphones
to monitor unit
Note: Both ADAT ports must be connected
(S/MUX) at sample rates of 88.2 kHz and 96 kHz.

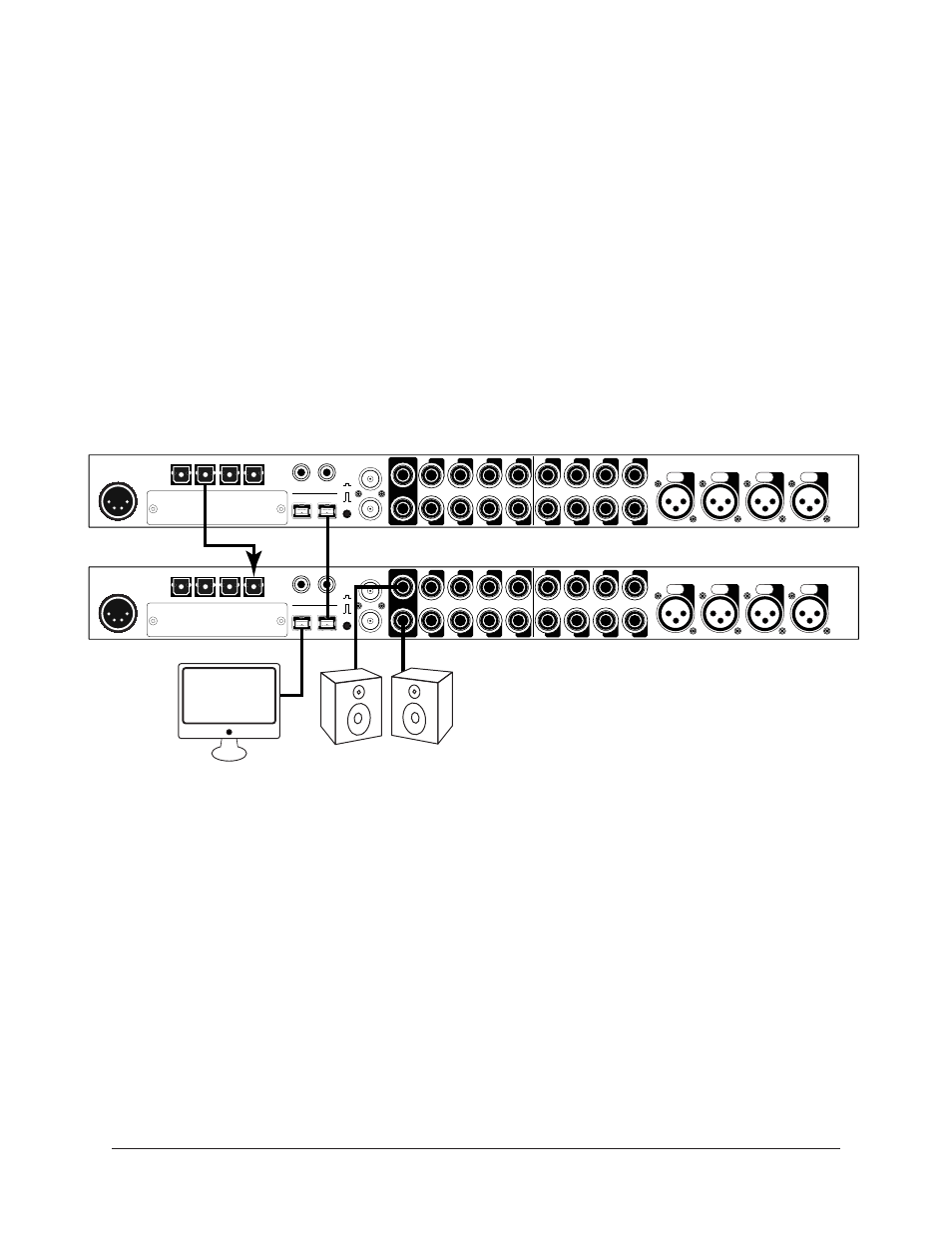

Apollo Multi-Unit Cascading Wiring
FireWire Host Connection
