Mounting Suggestions for Harley Davidson® 2006-2013 Wide Tire Softail (Will not fit on Softail Fatboy), Softail Crossbones,
Softail Custom & Softail Night Train Cyclone Solo Seat and Frame Mounting Plate continued from page 2
Install Frame Mounting Plate with solo seat onto motorcycle:
1. Remove stock seat(s). On Crossbones model, the stock HD frame cover must be permanently removed.

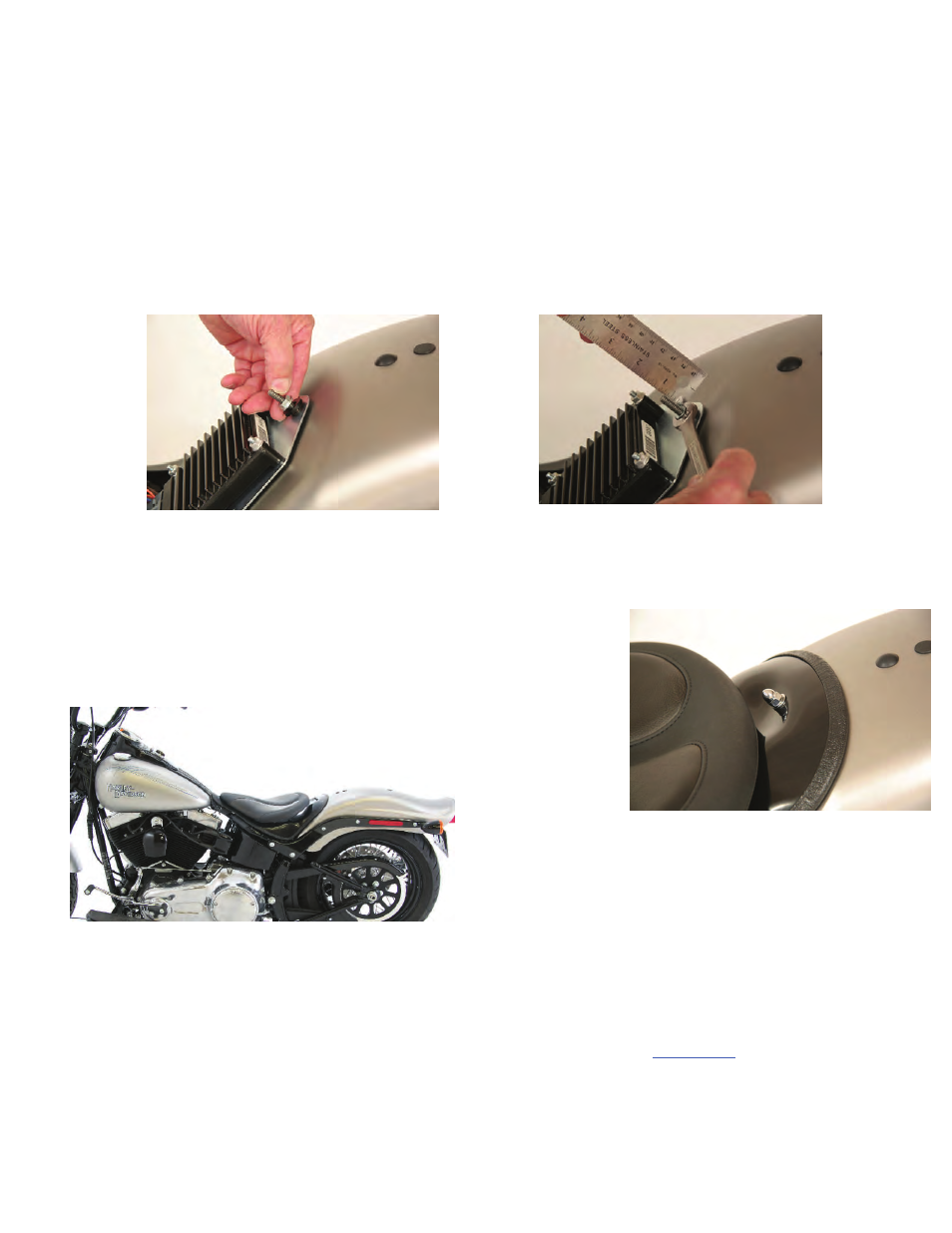

2. Locate the threaded hole at the top of the electrical box on the rear fender. Install the ¼‐20 threaded
stud with the plastic washer and flange nut as shown in the picture. Screw the stud in until there is exactly
¾” of thread remaining above the nut. Tighten nut.
Install step 2a
Install step 2b
3. Install the completed solo seat and frame mounting plate assembly onto the bike using the nose tab
at the front end and aligning the rear hole with the stud installed in step 2 above.
4. Secure frame mounting plate with chrome washer and acorn nut.
Install step 4
These steps are guidelines to help you install your new
Mustang product. If you need further assistance please call us at 860‐582‐9633, Monday through Friday
9:00 ‐ 5:30 Eastern or send an email to
or visit our website at
www.mustangseats.com
For care and maintenance of our seats, please go to our website under
“Support”
.
Ref: Cyclone Solo Seat part #’s 76615, 76616, 76617, 76618, 76621
Frame mounting plate: 76626
