Installation Instructions:

Wrap-Around Passenger Backrest

for 1986-2013 King TourPak

Step 1

Open King TourPak lid; locate and remove

six hex nuts holding stock wrap-around unit in place.


Step 2

Remove wrap-around unit from King Tour-

Pak lid.


Step 3

Note locations of all six holes in King Tour-

Pak lid. Mustang wrap-around unit uses three holes

only; the two outermost holes, and the lower center

hole, using supplied hardware for a secure installa-

tion .


Step 4

Remove all supplied hardware from the three

mounting studs on the back of the Mustang wrap-

around unit.


Step 5

Prepare Mustang wrap-around unit for instal-

lation by placing one rubber washer onto each of the

three mounting studs.


Step 6

Align the three mounting studs with the two

outermost holes and the lower center hole in the tour-

pak lid; push all three studs through the holes. Place

one rubber washer onto each stud, followed by one

metal washer and one hex nut. Tighten all for a se-

cure installation.


Note:

All three mounting studs are adjustable for

help in aligning them with holes in TourPak lid. When

the L-studs are in the up position, they will fit 1999

and earlier TourPaks. In the down position the L-

studs will fit 2000 and later TourPaks


Step 7

Cover the three un-used mounting holes in

the lid with the provided stick-on rubber pads.

These steps are guidelines to help you install your new Mustang product. If you need

further assistance please call us at 800-243-1392, Monday through Friday 9:00 - 5:30

Eastern or send an e-mail to

[email protected]

or visit our website

at

www.mustangseats.com.

For care and maintenance of our products, please go to our website under

"Support".

Ref: part #'s 75306, 75317, 75324, 75330, 75331, 75332

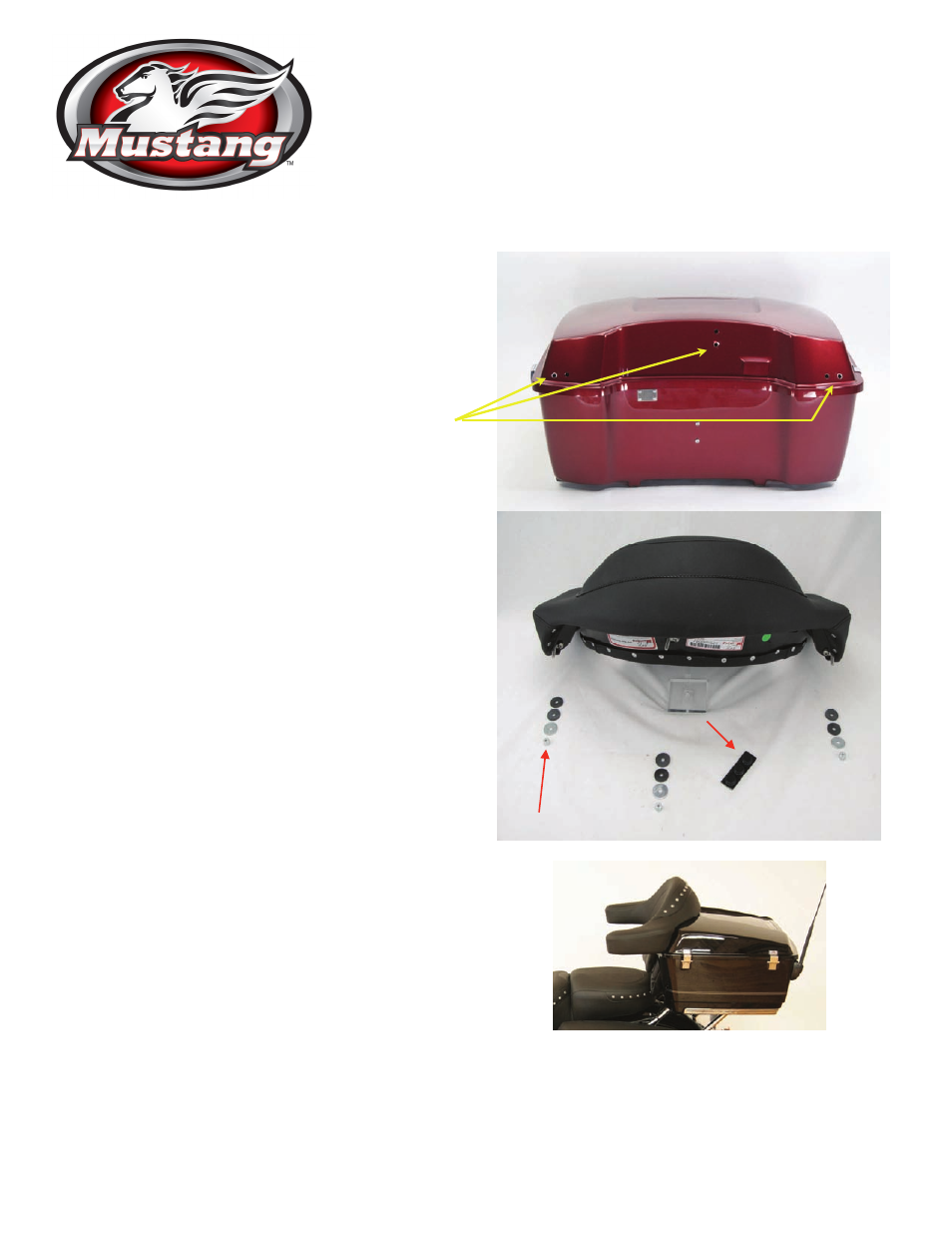

Stick-on
rubber pads

Two rubber washers, one metal washer,
one hex nut, for each mounting stud.

Back view of wrap-around
