Buyers 1501200 - Manual (Page 3)

Quality since 1946
3
1
2 3
4
8
9
5
7
6
10
12
11
13
Bill of Materials Hardware Kit
1 3015966 3015966 1 Hoop, Front
2 3015968 3015968 2 Rail, Side, Front
3 3015971 3015980 2 Rail, Side, Rear
4 3015967 3015967 1 Crossbar, Front
5 3015972 3015972 1 Crossbar, Rear
6 3015969 3015969 1 Crossbar, Center
7 3015970 3015970 4 Plate, Connector, Side Rail
8 3015973 3015973 1 Bracket, Crossbar Mount, Rear DS
9 3015974 3015974 1 Bracket, Crossbar Mount, Rear PS
10 3015976 3015976 2 Leg, PS
11 3015975 3015975 2 Leg, DS
12 3015977 3015977 4 Foot Assembly
13 3015978 3015978 4 Angle, Mount, Support
- 3016460 3016460 1 Hardware Kit
item 1501200 1501210 qty. description item BAG qty. description

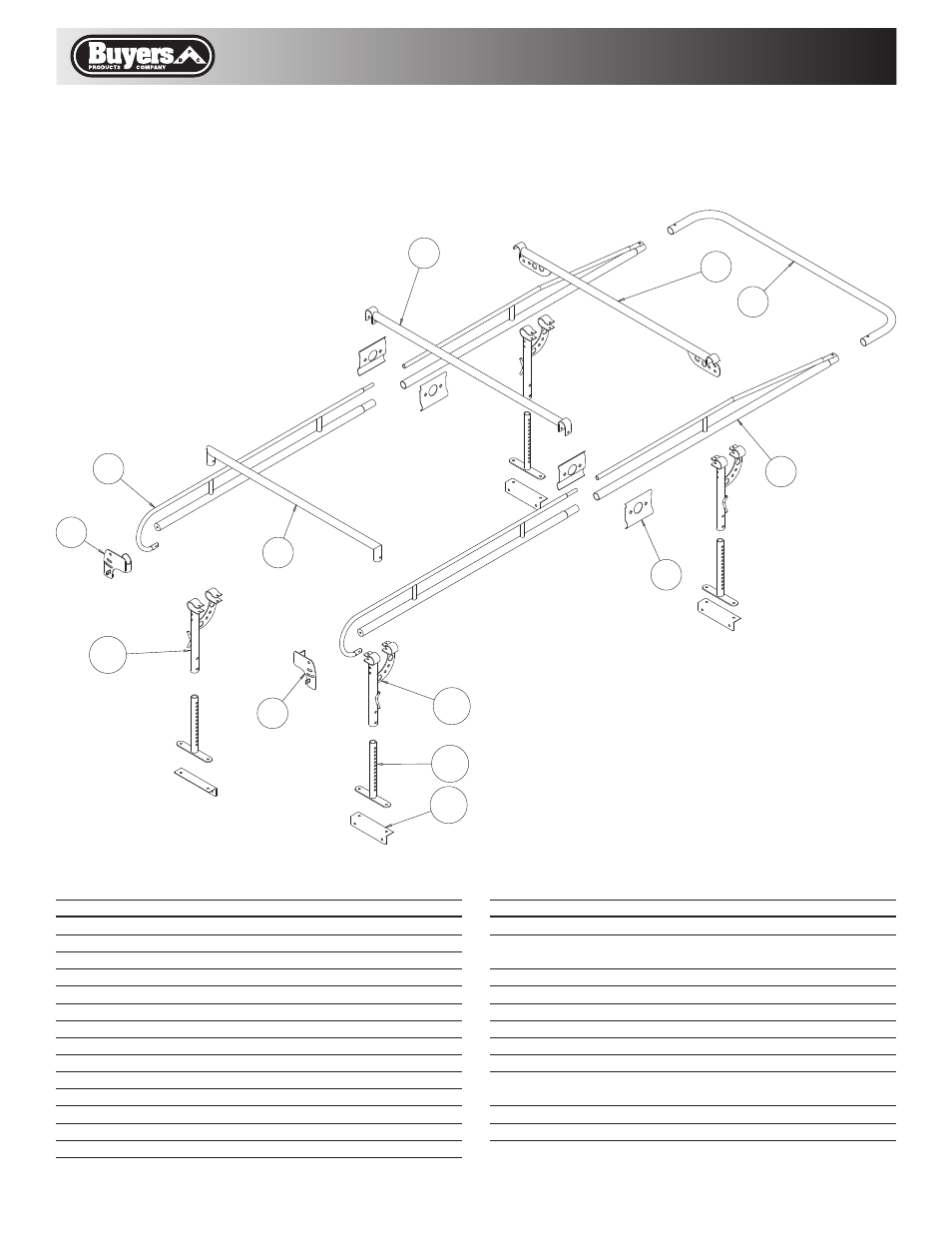

Fig. 1
Parts List
14 A 2 M10 x 70 Carriage Bolt, Lock Nut, Flat Washer
15 A 4 M16 X 35 Carriage Bolt, Lock Nut, Flat Washer,
Lock Washer
16 A 8 M12 X 50 Hex Head, Lock Nut, Flat Washer
17 B 2 M12 x 75 Hex Head, Lock Nut, Flat Washer
18 B 2 M10 X 30 Hex Head, Lock Nut, Flat Washer
19 B 2 M10 X 30 Hex Head, Lock Nut, Flat Washer
20 c 8 M12 X 45 Hex Head, Lock Nut, Flat Washer
21 c 8 M12 X 80 Hex Head, Lock Nut, Flat Washer
22 c 8 M16 X 70 Hex Head, Lock Nut, (2) Flat Washers,
Lock Washer
23 c 2 Latch Pin M6
- - 1 Silicone, Tube, Clear
