Installation Instructions
3100/4100-Series
Vernier Adjustable Locking
Control Cables

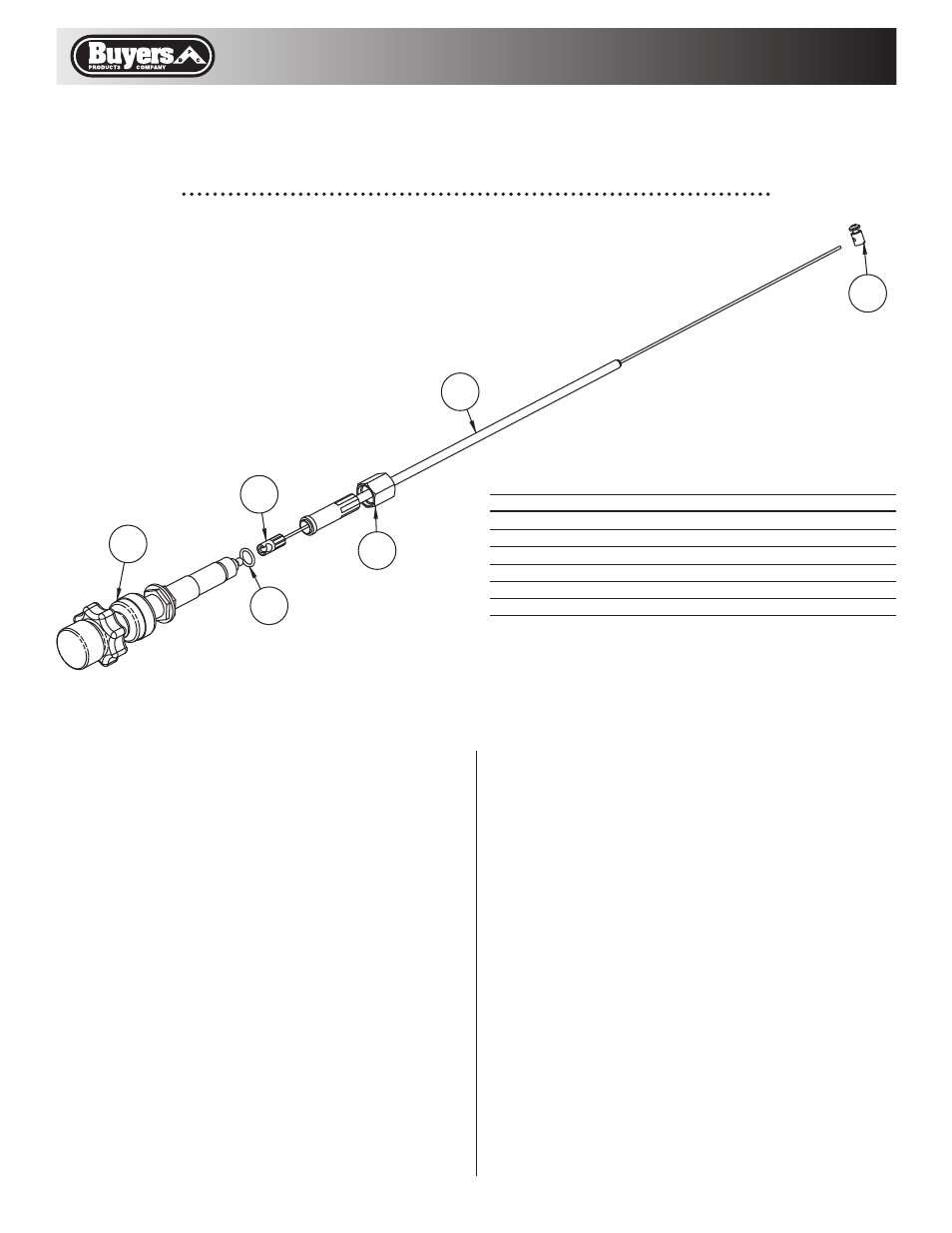

Bill of Materials
1 VGCTHO 1 Head, Cable, Vernier Adj. Locking Control
2 - 1 O-Ring
3 - 1 Core Wire Assembly
4 - 1 Conduit Assembly
5 - 1 Nut, Vernier Cable
6 516 1 Throttle Stop, Barrel
item part no. qty. description
—continued on back
Cutting Instructions (see illustration on back)
1. Determine the length of the cable conduit (A)
and the length of exposed core wire (B) required
for your application.
2. With the control head in its fully compressed
position hook the spherical end into the socket of
the core wire.
1
2
3
4
5
6
3. Pull the control head away from the conduit
fitting until the end of the threaded portion is
the same distance from the conduit fitting as the
amount of exposed core wire required (B).
4. Cut the conduit and core wire at conduit length
(A) required with an abrasive wheel. When the
head is assembled to the conduit fitting the
amount of exposed wire will be correct.
