Buyers 1801213 - Manual

3
6
3
2
DRILL FOR
9/16" BOLTS
DRILL FOR
1/2" BOLTS
CLEARANCE
RIVETS HOLES
1
9
2
4
5
7
8
2
2
Installation Instructions
9049 Tyler Blvd. • Mentor, Ohio 44060
Phone (440) 974-8888 • Fax (440) 974-0165
Toll-Free Fax 800-841-8003 • buyersproducts.com
Warranty
Buyers Products Co. warrants all truck/trailer hardware manufac-
tured or distributed by it, to be free from defects in material and
workmanship for a period of one year from date of shipment. Parts
must be properly installed and used under normal conditions. Any
product which has been altered, including modification, misuse,
accident or lack of maintenance will not be considered under
warranty. Normal wear is excluded. The sole responsibility of
Buyers Products Co. under this warranty is limited to repairing or
replacing any part or parts which are returned, prepaid, and are
found to be defective by Buyers Products Co. Authorization from
Buyers Products Co. must be obtained before returning any part.
No charges for transportation or labor performed on Buyers’ prod-
ucts will be allowed under this warranty.
1801213INST Rev. A
Bill of Materials
1 3018569 1 Hitch, Weld, 2.0 in. RCVR , F450-2011+
2 3006202 10 Screw, Hex HD - 1/2-13 x 1-1/2 GR 8 ZC
3 3002397 6 Locknut, Hex Nylock, 1/2-13 ZN, G8
4 FNH050013041G5 4 Nut, 12-13 Hex GR, 5 ZP
5 FWL050088013 4 Washer, Lock - 1/2 Split ZN
6 3002476 2 Screw, Hex HD Cap 9/16-18 x 2 GR8 ZN
7 FNL056018047 2 Nut, Hex 9/16-18 Center Lock ZN
8 FWF050138014 4 Washer, Flat, 500 x 1.38 x .14, ZN
9 3018568 2 Bar, Support
item part no. qty. description
1801213 2" Hitch
applications
2011+ Ford F450/550 Cab and Chasis
with 34 inch wide Frame
Capacity
16,000 lbs. Maximum Gross Trailer Weight (MGTW)
1,600 lbs. Maximum Vertical Load (MVL)

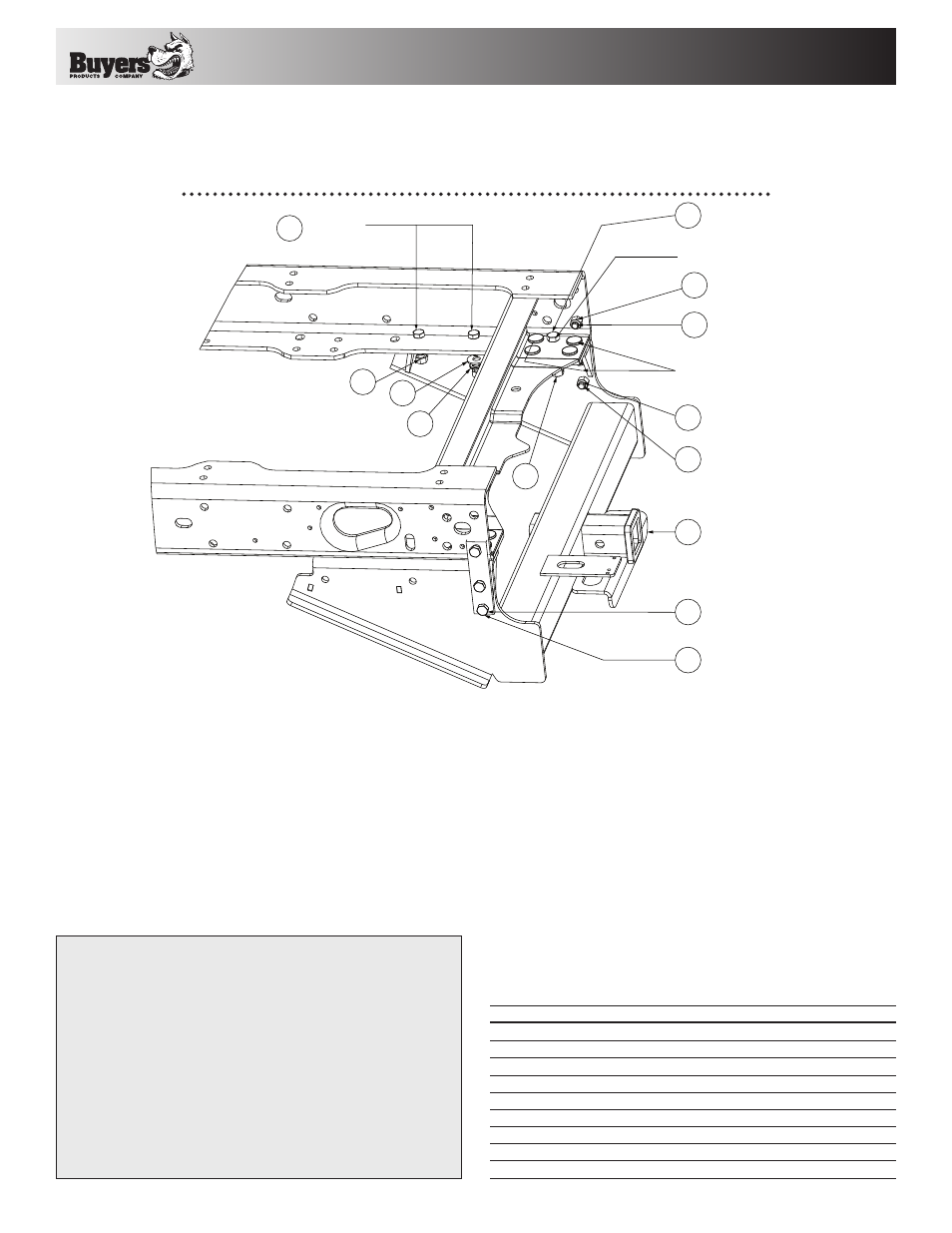

1. Place the Hitch so the large holes in the bracket are over
the flat rivet heads in the frame and the hitch is resting
flat against the frame. Make sure the hitch is center and
clamp it down tight.
2. Using the bracket as a template, mark all the holes with
appropriate marking tools. You may have to spay with
paint color to better see the location.
3. After marking, unclamp the hitch from the frame. Start
on the driver-side of the truck, drill one 19/32” hole toward
the rear of the truck. Drill the next two holes with 9/16”
diameter drill.
4. Place the hitch back onto the frame and align it to the
newly drilled holes. Secure it to the frame with the bolts,
washers, and nuts - provided.
5. For additional support, mount the Support Bars to the
sides of the Hitch. Use the ½” fasteners to secure the
Support Bars on the frame.
