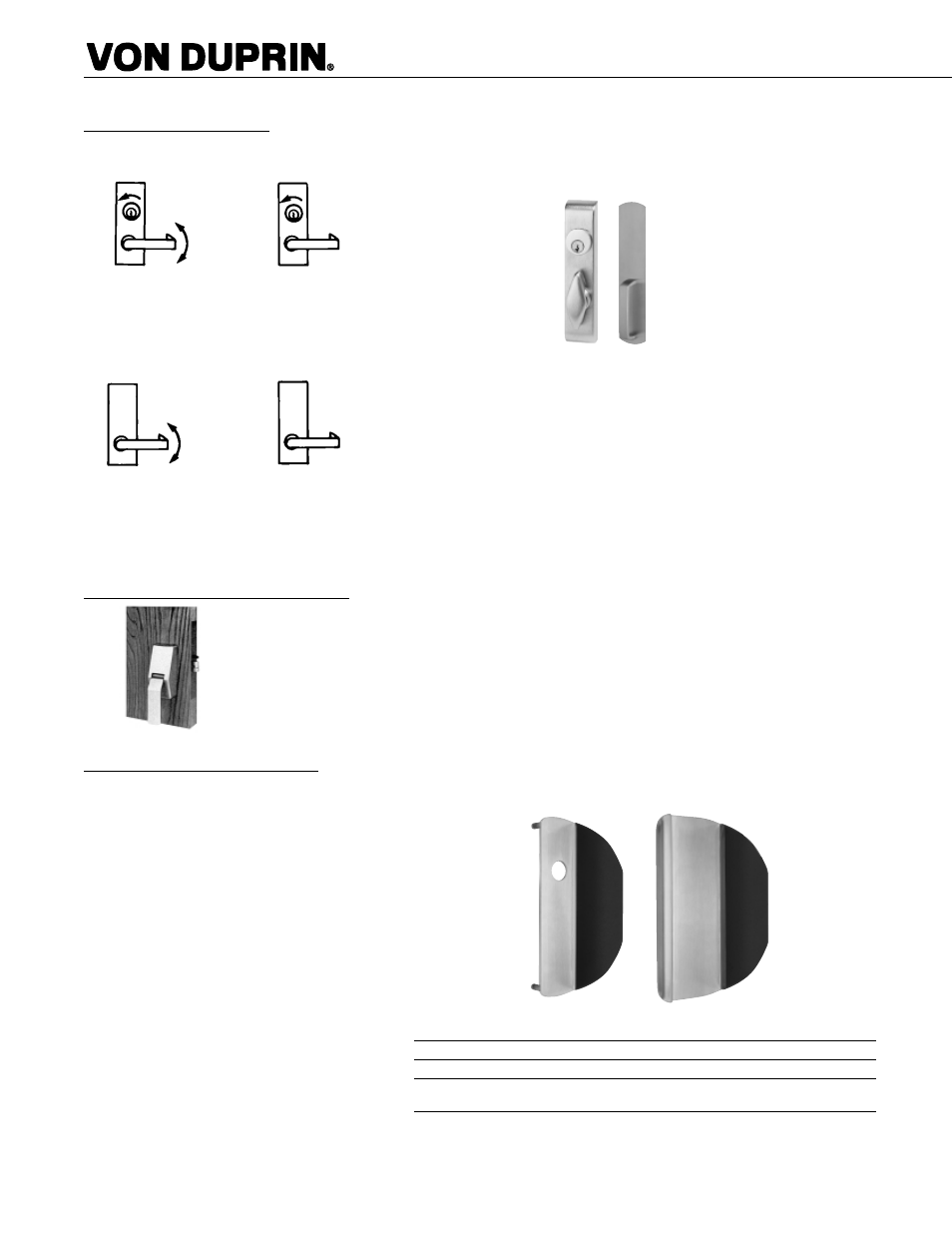

98/99™ Trim Operation Selection
35
Operation Options
HL6 Exit Device Trim Option
Vandal Resistant Trim
VR910 & VR914 Series
Features:
• Stainless Steel construction, 11 gage (0.120" thick)
• Thru-bolts and rugged mounting screws for maximum
fastening strength.
• 10-24 screws supplied with VR910 & VR914 models.
• Built-in lock protector prevents vandalism to mortise latchbolt
(available on certain models).
• Extra-tough stainless steel cylinder collar prevents pipe wrench or
similar tool from damaging cylinder. Tapered design prevents side
impacts from transferring directly to cylinder. Collar spins freely.
• Furnished with mounting screws for door thicknesses
of 1 ³₄" to 2¹₄"
• Finish: US32D
• VR910 grip coated in black plastisol for softer touch and
resilience to temperature extremes. Grip designed for
comfortable operation.
• VR914 grip in all stainless steel.
• Meets ANSI/BHMA 156.13, Trim Security Test and
California State Accessibility Standards Title 24.
• 1 ¹₂"
(38mm) clearence from grip to door
• 1 ⁷₈"
(48mm) total projection from door
• Consult IVES catalog for specification/ordering information.
Standard operation, key locks and unlocks
thumbturn. Optional operation, key unlocks
thumbturn, re-locks when key is removed. This
operation is created by changing the cylinder plate
included with control. Use 1
¹₄" mortise cylinder
with a straight cam. Schlage cam reference
B502-191.
Standard operation,
key locks and unlocks
lever or knob.
e.g., 996L
(Classroom) Night latch, key retracts
latch bolt. Lever or knob
is rigid. Use NL suffix,
e.g. 996LNL.
(Storeroom)
Blank escutcheon,
lever or knob always
active. Use BE suffix,
e.g., 996L-BE.
(Passage) Dummy trim, lever
or knob rigid for pull
operation. Use DT
suffix, e.g., 996L-DT.
Lever and Knob Operations 374T/376T Series Thumbturn Control
(Shown with 990DT Trim)
Von Duprin and Glynn-Johnson have collaborated on an exit device trim that answers the
problem of accessibility and performance.Using the Von Duprin 98/9975 mortise lock exit
device along with the Glynn-Johnson HL6 Push/Pull latch, Ingersoll-Rand has created an exit
device with mortise lock durability that utilizes a fully ADA compliant Pull paddle trim. The
98/9975HL device is available in all standard architectural finished and can be found in the
Von Duprin device price list for easy ordering.
Model For Use With Size
VR910DT & VR914DT 98/99 Rim or Vert. Rod Device 5 ¹₄" (133mm) w x 11" (279mm) h
VR910NL & VR914NL 98/99 Rim or Vert. Rod Device 5 ¹₄" (133mm) w x 11" (279mm) h
VR910M-DT & 9875/9975 Mortise Device 7 ¹₄" (184mm) w x 11" (279mm) h
VR914M-DT
VR910M-NL & 9875/9975 Mortise Device 7 ¹₄" (184mm) w x 11" (279mm) h
VR914M-NL
