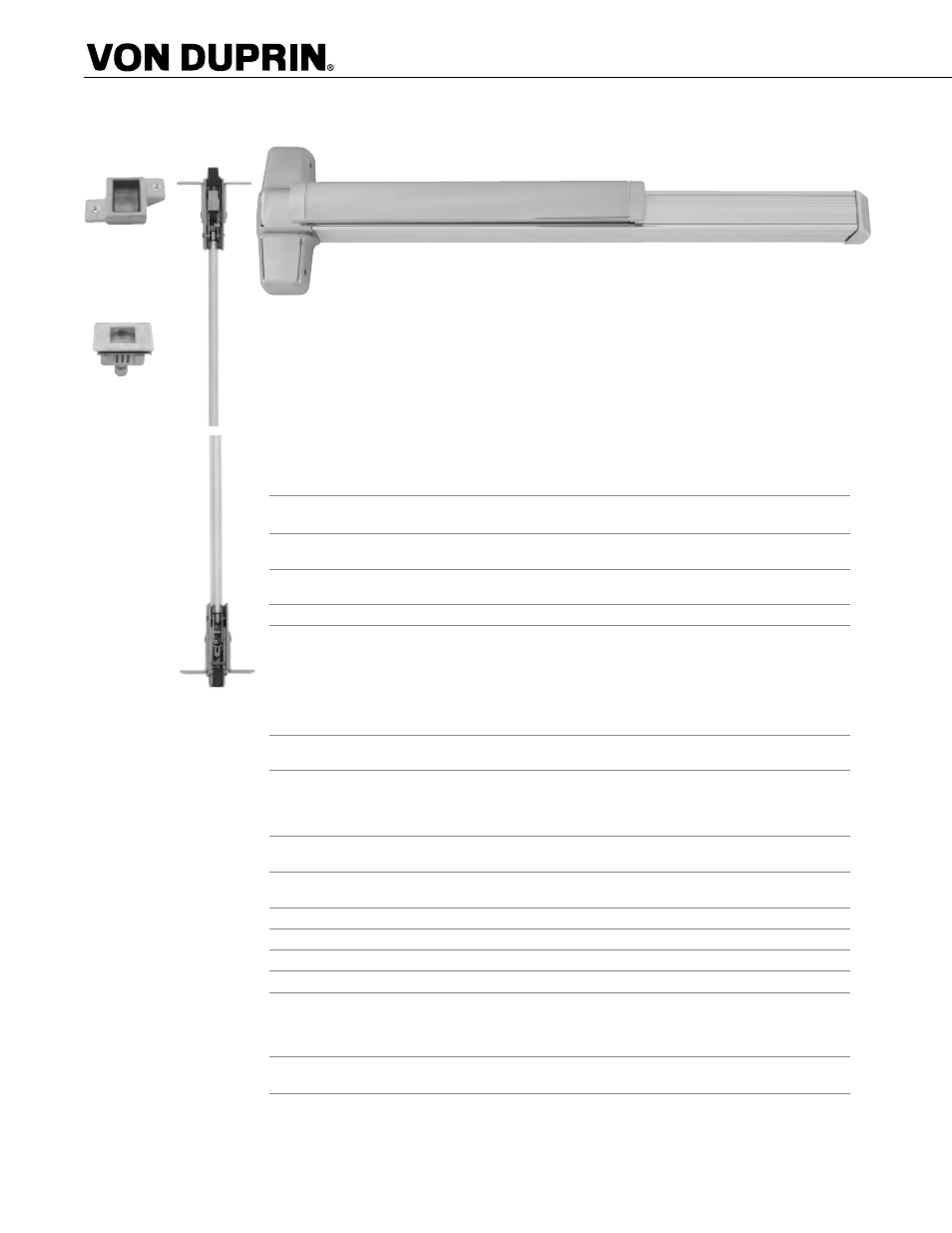

9848-F/9948-F Concealed Vertical Rod Fire Device

26

© 2004 Ingersoll-Rand. May be copied for use with specification submittal.

9848-F/9948-F concealed vertical rod device for use on pairs of doors up to 8´ x 10´(2438mm x 3048mm),
UL listed for Fire Exit Hardware. See page 41 for detailed information on UL listed fire exit hardware label and
door opening size information.
Devices are ANSI A156.3 – 2001 Grade 1. The 9848-F device has a smooth
mechanism case and the 9948-F device has a grooved case. The concealed vertical rod device is non-handed
except when the following device option is used: SS (Signal Switch). See Opposite page for available outside
trim and functions.

The 9848-F/9948-F devices are available in the following finishes: US3, US4, US10, US26, US26D, US28, 313AN,
315AN and US32D for the 9848-F device only. See page 52 for component finishes and the inside cover for
finish chips.

Top Latch

Bottom Latch

385A

Bottom Strike

338

Top Strike

Specifications

Device Functions

Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive
screw from device

Device Lengths

3’

2’4" to 3’ (711mm to 914 mm) Door Size

4’

2’10" to 4’ (864 mm to 1219 mm) Door Size

Strikes

Top - 338 – Unfinished, Bottom – 385A - Unfinished
Optional Strikes – see page 39

Dogging Feature

No Mechanical Dogging, EL option available

Electric Options

LX

Latchbolt Monitor Switch

see page 42

RX

Pushpad Monitor Switch

see page 42

RX2 Double Pushpad Monitor Switch

see page 42

EL

Electric Latch Retraction

see page 43

SS

Signal Switch

see page 43

CX

Chexit Delayed Exit

see page 45

ALK Alarm Exit Kit

see page 42

Miscellaneous Options

PN

Pneumatic Latch Retraction

see page 48

GBK Glass Bead Kit

see page 49

Fasteners &

Includes 1

³ ₄" (19mm) – 2 ¹ ₄" (57mm) Wood & Metal Doors

Sex Bolts (SNB)

Optional SNB available for device, see next page for quantities
Optional SLM Blocking Pkg for wood doors with SLM blocking
SNB required for wood doors, unless SLM Blocking Pkg specified

Latch Bolt

Deadlocking Top Bolt,

³ ₄" (19mm) throw

Deadlocking Bottom Bolt, 1

¹ ₂" (38mm) throw

Device Centerline from

39 5/8" (1006 mm) Standard, Adjustable from 35

⁵ ₈" (905mm) to

Finished Floor

49 5/8" (1260mm)

Door Undercut

¹ ₄" (7mm) maximum

Center Case Dimensions

8" x 2

³ ₄" x 2 ³ ₈" (203mm x 70mm x 60mm)

Mechanism Case Dimensions

2

¹ ₄" x 2 ¹ ₄" (57mm x 57mm)

Top & Bottom Latch Case

4

¹ ₂" x 2 1/8" x 1 ¹ ₂" (114mm x 54mm x 38mm)

Vertical Rods

Round 2 piece adjustable rods
Top rod adjustable from 6’8" (2027mm) to 8’4"(2533mm)
Bottom rod adjustable 35

⁵ ₈" (905 mm) to 49 ⁵ ₈" (1260 mm)

Extension rod kits available for doors over 8’4" (2533mm)

Projection

Pushbar Neutral – 3

¹³ ₁₆" (97 mm)

Pushbar Depressed – 3

¹ ₁₆" (78 mm)

See page 53 for How to Order specification
