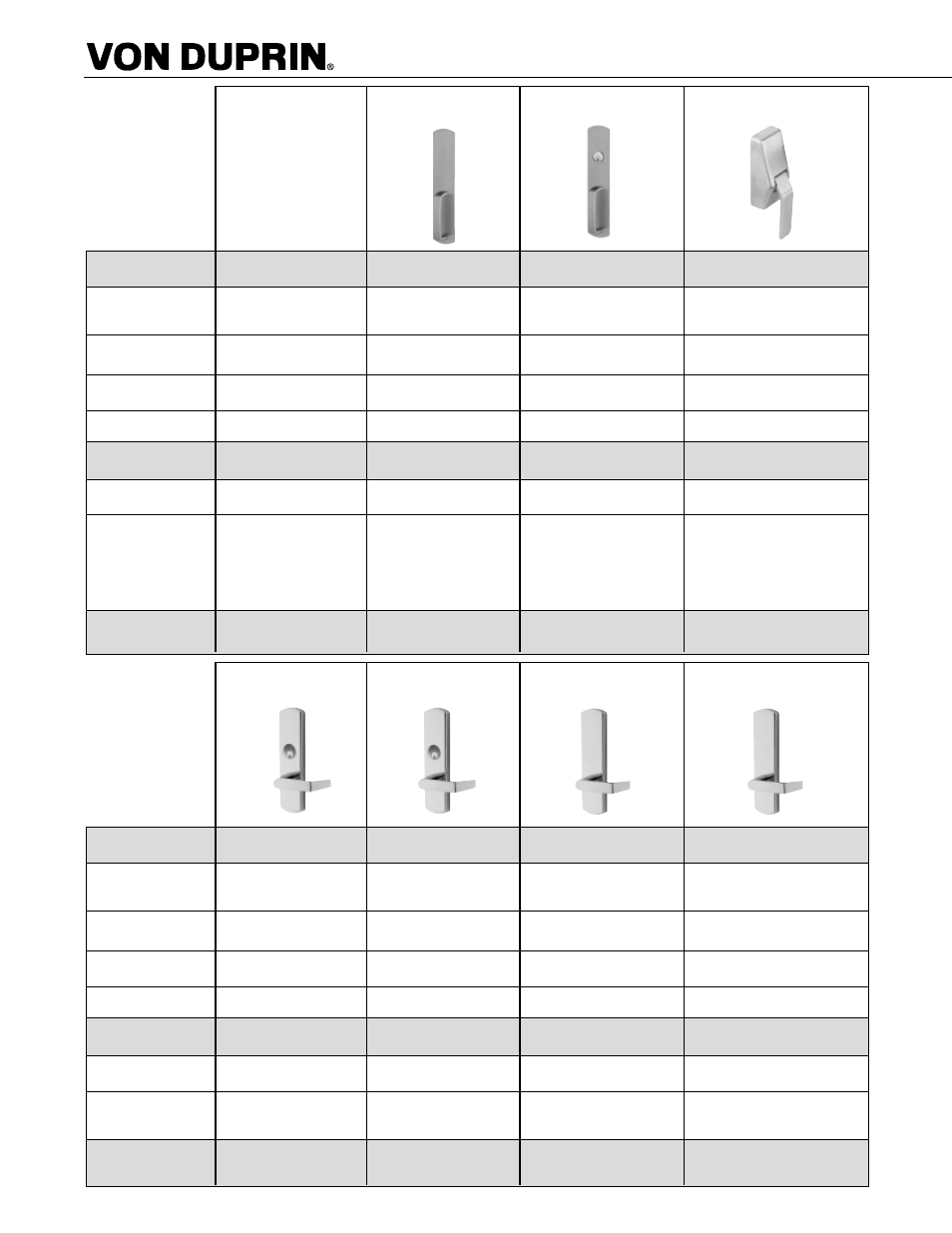

9875/9975 Mortise Lock Device Standard Trim
9
Exit only Dummy Trim Night Latch Hospital Latch
Pull when Dogged Key Retracts Latchbolt Key Locks & Unlocks
Product Description
Trim Description
Escutcheon Plate Size
Pull Center to Center
Projection
ANSI Function
Cylinder Type
Optional Trim
(See pages 32 – 34)
Optional #425 Sex Bolt
Quantity for Device
9875EO 9875DT 9875NL 9875HL
9975EO 9975DT 9975NL 9975HL
3" x 14 ³ ₁₆" x ³ ₃₂" 3" x 14 ³ ₁₆" x ³ ₃₂" 2 ⁹ ₁₆" x 5¹ ₂" x 2⁵ ₈"
(76x360x2mm) (76x360x2mm) (65x140x67mm)
–– 5 ¹ ₂" (140mm) 5 ¹ ₂" (140mm) ––
–– 2" (51mm) 2" (51mm) 2 ⁵ ₈" (67mm)
01 02 03 ––
–– –– 1 ¹ ₄" Mortise 1 ¹ ₄" Mortise
x990EO x991K-DT x991K-NL
x992EO x992L-DT x992L-NL
x994EO x994L-DT x994L-NL
x996EO x996L-DT x996L-NL
x696DT x696NL
x697DT x697NL
6 2 2 2
–– 990DT 990NL-M HL6M
––
Lever Lever – Night Latch Lever – Blank Escutceon Lever Dummy Trim
Key Locks & Unlocks Key Retracts Latchbolt Always operable Pull when Dogged
(No Cylinder)
Product Description
Trim Description
Escutcheon Plate Size
Pull Center to Center
Projection
ANSI Function
Cylinder Type
Optional Trim
(See pages 32 – 34)
Optional #425 Sex Bolt
Quantity for Device
9875L 9875L-NL 9875L-BE 9875L-DT
9975L 9975L-NL 9975L-BE 9975L-DT
996L-M 996L-NL-M 996L-BE-M 996L-DT-M
2 ³ ₄" x 10³ ₄" x ²⁷ ₃₂" 2 ³ ₄" x 10³ ₄" x ²⁷ ₃₂" 2 ³ ₄" x 10³ ₄" x ²⁷ ₃₂" 2 ³ ₄" x 10³ ₄" x ²⁷ ₃₂"
(70x273x21mm) (70x273x21mm) (70x273x21mm) (70x273x21mm)
–– –– –– ––
2 ⁷ ₈" (
73mm) 2 ⁷ ₈" (
73mm) 2 ⁷ ₈" (
73mm) 2 ⁷ ₈" (
73mm)
08 09 –– 02
1 ¹ ₄" Mortise 1 ¹ ₄" Mortise –– ––
x992L x992L-NL x992L-BE x992L-DT
x994L x994L-NL x994L-BE x994L-DT
2 2 2 2
For optional trims and functions see pages 32-34
