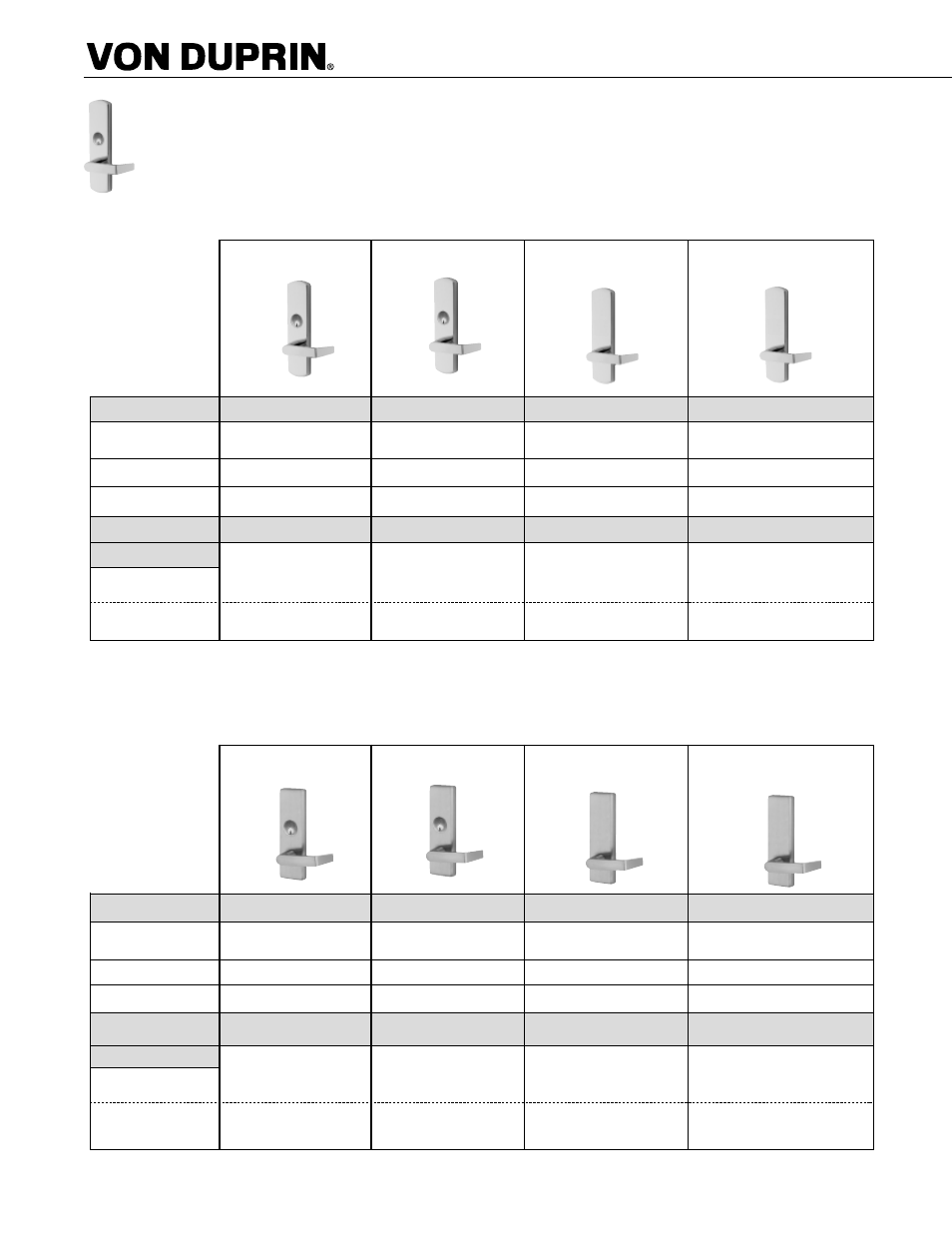

98/99™ Optional Lever Trim
33
Lever
Lever – Night Latch
Lever – Blank Escutcheon
Lever – Dummy Trim
Key Locks and Unlocks
Key Retracts Latchbolt
Always Operable
Pull when Dogged
(No Cylinder)
(Not recommended for Fire Device)
Trim Description
Escutcheon Plate Size
Pull Center to Center
Projection
ANSI Function
Cylinder Type
Rim or
Vertical Rod Device
Mortise Lock
Device
992L
992L-NL
992L-BE
992L-DT
2
³₄" x 10³₄" x ²⁷₃₂"
2
³₄" x 10³₄" x ²⁷₃₂"
2
³₄" x 10³₄" x ²⁷₃₂"
2
³₄" x 10³₄" x ²⁷₃₂"
(70x273x21mm)
(70x273x21mm)
(70x273x21mm)
(70x273x21mm)
––
––
––
––
2
⁷ ₈" (
73mm)
2
⁷ ₈" (
73mm)
2
⁷ ₈" (
73mm)
2
⁷ ₈" (
73mm)
08
09
––
02
Rim Rim
––
––
1
¹ ₄"
Mortise
1
¹ ₄"
Mortise
––
––
Optional Lever Trims – 992
Optional Lever Trims – 994
Lever
Lever – Night Latch
Lever – Blank Escutcheon
Lever – Dummy Trim
Key Locks and Unlocks
Key Retracts Latchbolt
Always Operable
Pull when Dogged
(No Cylinder)
(Not recommended for Fire Device)
Trim Description
Escutcheon Plate Size
Pull Center to Center
Projection
ANSI Function
Cylinder Type
Rim or
Vertical Rod Device
Mortise Lock
Device
994L
994L-NL
994L-BE
994L-DT
2
³₄" x 9¹₄" x ²⁷₃₂"
2
³₄" x 9¹₄" x ²⁷₃₂"
2
³₄" x 9¹₄" x ²⁷₃₂"
2
³₄" x 9¹₄" x ²⁷₃₂"
(70x235x21mm)
(70x235x21mm)
(70x235x21mm)
(70x235x21mm)
––
––
––
––
2
⁷ ₈" (
73mm)
2
⁷ ₈" (
73mm)
2
⁷ ₈" (
73mm)
2
⁷ ₈" (
73mm)
08
09
––
02
Rim Rim
––
––
1
¹ ₄"
Mortise
1
¹ ₄"
Mortise
––
––
The new 996L Breakaway™ trim has become the standard lever trim offering on the 98L/99L series devices. The 996L trim blends two success-
ful Von Duprin designs; the look of the traditional 992L lever trim and the security and durability of the Von Duprin Breakaway™ design. The
Breakaway™ design is especially effective in areas where vandalism to door hardware is a problem. The design intent is to discourage costly
repairs from becoming necessary. The Breakaway
™
feature is not available on the NL (night-latch) or DT (dummy trim) versions.
996L Trim
The 992L trim series provides the traditional Von Duprin escutcheon design. Special versions available for doors of over 2
¹₄" (57mm) thicknesses.
Additionally available in an RX and E-locking/unlocking version.
