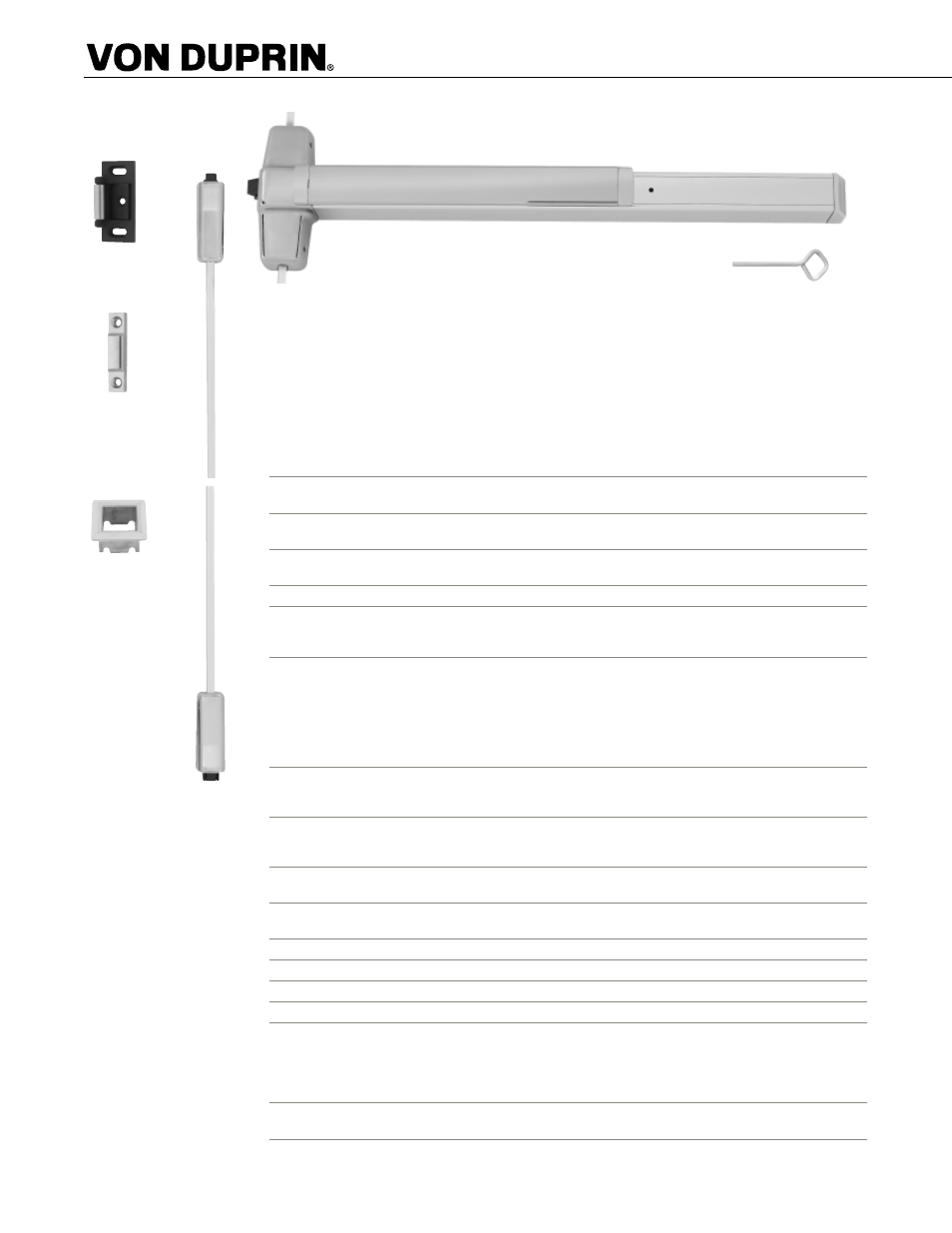

9857/9957 Three-Point Latching Device

16

© 2004 Ingersoll-Rand. May be copied for use with specification submittal.

9857/9957 three-point latching device for all types of single or double doors, UL listed for Panic Exit Hardware.
Devices are ANSI A156.3 – 2001 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9857
device has a smooth mechanism case and the 9957 device has a grooved case. The three-point latching device
is non-handed except when the following device options are used: SD (Special Dogging), or SS (Signal Switch).
See Opposite page for available outside trim and functions.

The 9857/9957 devices are available in the following finishes: US3, US4, US10, US26, US26D, US28, 313AN,
315AN and US32D for the 9857 device only. See page 52 for component finishes and the inside cover for
finish chips.

Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts
of carts or gurneys passing through doors. Refer to Page 49.

Top Latch

Bottom Latch

299

Top & Middle

Strike

248L4

Bottom Strike

for use with

threshold

304L

Bottom Strike

Specifications

Device Functions

Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive
screw from device

Device Lengths

3’

2’4" to 3’ (711mm to 914 mm) Door Size

4’

2’10" to 4’ (864 mm to 1219 mm) Door Size

Strikes

Top & Middle-299–Dull Black, Bottom–248L4 & 304L-Unfinished
Optional Strikes – see page 39

Dogging Feature

Hex key dogging standard

Dogging Options

CD

Cylinder Dogging

see page 48

SD

Special Center Case Dogging

see page 48

LD

Less Dogging

see page 48

Electric Options

LX

Latchbolt Monitor Switch

see page 42

RX

Pushpad Monitor Switch

see page 42

RX2 Double Pushpad Monitor Switch

see page 42

EL

Electric Latch Retraction

see page 43

SS

Signal Switch

see page 43

CX

Chexit Delayed Exit

see page 45

ALK Alarm Exit Kit

see page 42

Miscellaneous Options

PN

Pneumatic Latch Retraction

see page 48

LBR Less Bottom Rod

see page 49

GBK Glass Bead Kit

see page 49

Fasteners &

Includes 1

³ ₄" (19mm) – 2 ¹ ₄" (57mm) Wood & Metal Doors

Sex Bolts (SNB)

SNB furnished for top & bottom latches
Optional SNB available for device, see next page for quantities

Latch Bolt

Deadlocking Anti-friction Top & Bottom Bolt,

⁵ ₈" (16mm) throw

Deadlocking Rim Bolt,

³ ₄" (19mm) throw

Device Centerline from

39

¹³ ₁₆" (1011 mm)

Finished Floor

Door Undercut

¹ ₄" (7mm)

Center Case Dimensions

8" x 2

³ ₄" x 2 ³ ₈" (203mm x 70mm x 60mm)

Mechanism Case Dimensions

2

¹ ₄" x 2 ¹ ₄" (57mm x 57mm)

Top & Bottom Latch Case

4

¹ ₂" x 2 ¹ ₈" x 1 ¹ ₂" (114mm x 54mm x 38mm)

Vertical Rods

¹ ₂" square tubing, standard rods accommodate 7’ (2134mm) door

Top rod length is 34

¹⁵ ₁₆" (887mm)

Bottom rod length is 31

¹ ₄" (794mm)

Extension rods available, 1’ (205mm) or 3’ (914mm) for doors over 7’
One piece top rod available for 8’ (2438mm) – 10’ (3048mm) door

Projection

Pushbar Neutral – 3

¹³ ₁₆" (97 mm)

Pushbar Depressed – 3

¹ ₁₆" (78 mm)

See page 53 for How to Order specification
