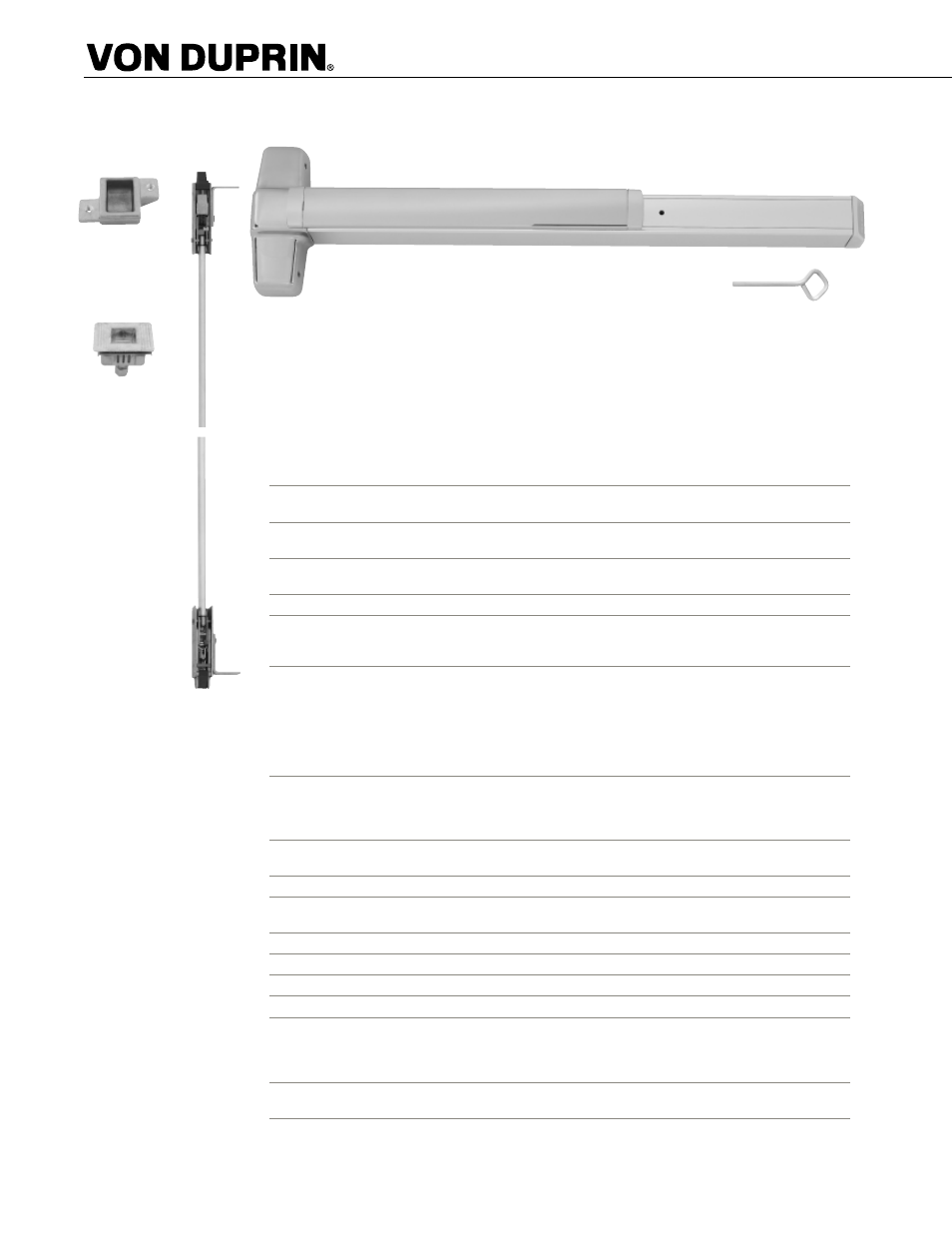

9847/9947 Concealed Vertical Rod Device

20

© 2004 Ingersoll-Rand. May be copied for use with specification submittal.

9847/9947 concealed vertical rod device for use on single or double metal doors, UL listed for Panic Exit
Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 9847 device has a smooth mechanism case and the
9947 device has a grooved case. The concealed vertical rod device is non-handed except when the following
device options are used: SD (Special Dogging), or SS (Signal Switch). See Opposite page for available outside
trim and device functions.

The 9847/9947 devices are available in the following finishes: US3, US4, US10, US26, US26D, US28, 313AN,
315AN and US32D for the 9847 device only. See page 52 for component finishes and the inside cover for
finish chips.

See page 53 for How to Order specification

Top Latch

Bottom Latch

385A

Bottom Strike

338

Top Strike

Specifications

Device Functions

Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive
screw from device

Device Lengths

3’

2’4" to 3’ (711mm to 914 mm) Door Size

4’

2’10" to 4’ (864 mm to 1219 mm) Door Size

Strikes

Top - 338 – Unfinished, Bottom – 385A - Unfinished
Optional Strikes – see page 39

Dogging Feature

Hex key dogging standard

Dogging Options

CD

Cylinder Dogging

see page 48

SD

Special Center Case Dogging

see page 48

LD

Less Dogging

see page 48

Electric Options

LX

Latchbolt Monitor Switch

see page 42

RX

Pushpad Monitor Switch

see page 42

RX2 Double Pushpad Monitor Switch

see page 42

EL

Electric Latch Retraction

see page 43

SS

Signal Switch

see page 43

CX

Chexit Delayed Exit

see page 45

ALK Alarm Exit Kit

see page 42

Miscellaneous Options

PN

Pneumatic Latch Retraction

see page 48

LBR Less Bottom Rod

see page 49

GBK Glass Bead Kit

see page 49

PL

Pullman Latch

see page 49

Fasteners &

Includes 1

³ ₄" (19mm) – 2 ¹ ₄" (57mm) Wood & Metal Doors

Sex Bolts (SNB)

Optional SNB available for device, see next page for quantities

Latch Bolt

Deadlocking Top & Bottom Bolt,

⁵ ₈" (16mm) throw

Device Centerline from

39

⁵ ₈" (1006 mm) Standard, Adjustable from 35 ⁵ ₈" (905mm) to

Finished Floor

49

⁵ ₈" (1260mm)

Door Undercut

¹ ₄" (7mm) maximum

Center Case Dimensions

8" x 2

³ ₄" x 2 ³ ₈" (203mm x 70mm x 60mm)

Mechanism Case Dimensions

2

¹ ₄" x 2 ¹ ₄" (57mm x 57mm)

Top & Bottom Latch Case

4

¹ ₂" x 2 ¹ ₈" x 1 ¹ ₂" (114mm x 54mm x 38mm)

Vertical Rods

Round 2 piece adjustable rods
Top rod adjustable from 6’8" (2027mm) to 8’4"(2533mm)
Bottom rod adjustable 35

⁵ ₈" (905 mm) to 49 ⁵ ₈" (1260 mm)

Extension rod kits available for doors over 8’4" (2533mm)

Projection

Pushbar Neutral – 3

¹³ ₁₆" (97 mm)

Pushbar Depressed – 3

¹ ₁₆" (78 mm)
